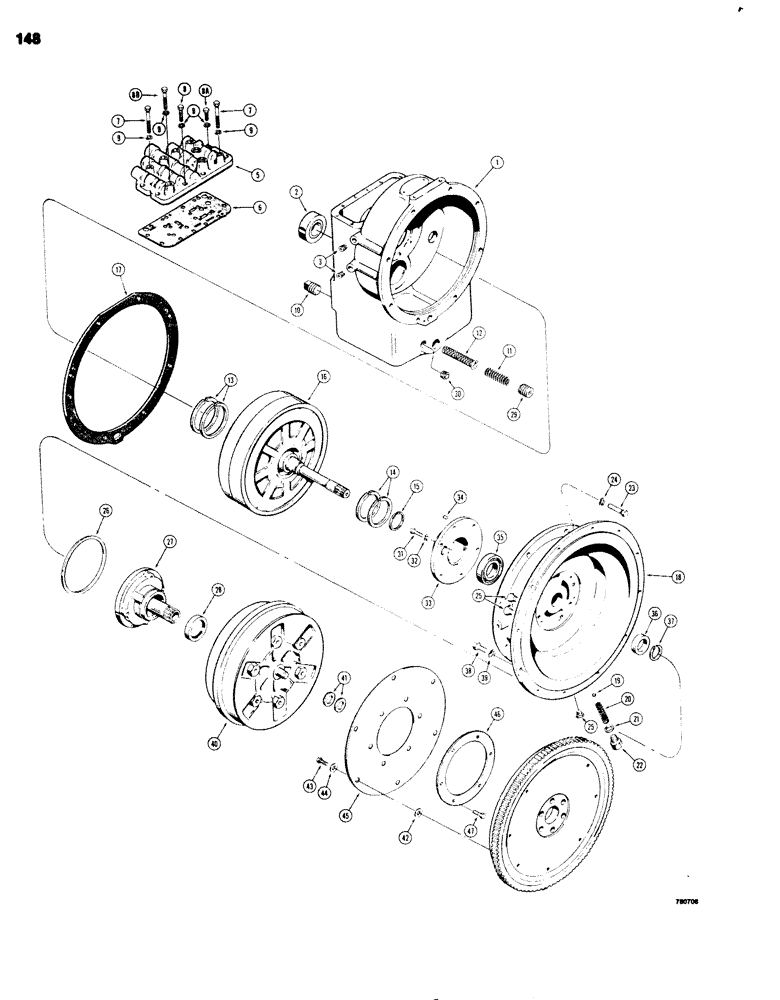

Запчасти Case 680G (148) - TRANSMISSION, TORQUE CONVERTER HOUSING AND PUMP (06) - POWER TRAIN

D73700

TRANSMISSION

TRANSMISSION ASSEMBLY - forward and reverse, Includes: D83071 and Ref. 1 - 37

1шт.

D83071

HOUSING

HOUSING ASSEMBLY - transmission, Includes: Ref. 1 - 4A

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

2

G13075

BEARING, BALL

BEARING - housing

1шт.

3

221-841

PLUG

PLUG - pipe, hex, socket head, 1/4" NPT, if used

2шт.

4

221-13

PLUG,Sq Hd, 3/8"-18

PLUG - pipe, square head, 3" NPT, not shown

2шт.

4a

D73701

PLUG

PLUG - pipe, drain, 5/8" NF, not shown

1шт.

5

D66391

VALVE

VALVE ASSEMBLY - forward and reverse control, parts list Figure 154, Includes: Ref. 6

1шт.

6

D72753

GASKET

GASKET - valve body, part of D66391 valve, see Figure 154

1шт.

7

13-534

BOLT,Hex, 5/16" - 18 x 2-1/8", Gr 5

BOLT - hex head, 5/16" - 18 NC x 2-1/8"

5шт.

8

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex head, 5/16"-18 NC x 1-1/2"

5шт.

8a

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

1шт.

8b

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

BOLT, Hex, 5/16"-18 x 2", G5

1шт.

9

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

12шт.

10

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" NPT

1шт.

11

L32746

SPRING

SPRING - screen

1шт.

12

L32745

FILTER SCREEN

SPRING - OIL

1шт.

13

L30237

SEAL

RING - sealing, 3-1/2" (89 mm) O.D.

2шт.

14

A14833

SEALING RING

RING - sealing, 3" (76 mm) O.D.

2шт.

15

L30486

SEAL

RING - sealing, 2" (51 mm) O.D.

1шт.

16

D66382

CLUTCH ASSEMBLY

CLUTCH ASSEMBLY - forward and reverse, parts list Figure 152

1шт.

16

D66382R

REMAN-CLUTCH PLATE

680G

1шт.

16

D66382C

CORE-CLUTCH PLATE

Return Number, Clutch Assembly, N.A. Only

1шт.

17

D66388

GASKET

GASKET - transmission housing

1шт.

18

D66389

HOUSING

CASE - transmission, front, Includes: Ref. 35

1шт.

19

211-12

BALL,7/16 Dia

BALL - steel, 7/16" (11.1 mm)

1шт.

20

L33705

SPRING

SPRING - pop valve

1шт.

21

A14810

WASHER

WASHER - special

1шт.

22

A14811

SEAT, VALVE

SEAT - spring, pop valve

1шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

5шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 3/4", G5

3шт.

34

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

8шт.

25

221-661

PLUG,Hex Hd, 1/8"-27

PLUG - pipe, hex head, 1/8" NPT

3шт.

26

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

GASKET - pump

1шт.

27

L30488

PUMP

PUMP ASSEMBLY - torque converter charging, Includes: Ref. 28

1шт.

There is a small bushing (D50071) inside the pump which seals against Ref. 28 seal. There is also a bushing (D50073) inside the shaft end.

1шт.

28

L30489

OIL SEAL

SEAL - pump

1шт.

29

221-846

PLUG,Hex Soc, 1"-11 1/2

PLUG - square socket head, 1" NPT

1шт.

30

221-654

PLUG,Hex Hd, 1/2"-14

PLUG - hex head, 1/2" NPT

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

32

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

6шт.

L30479

CAP

RETAINER ASSEMBLY - bearing, Includes: Ref. 33, 34

1шт.

33

NSS

NOT SOLD SEPARAT

REATINER - bearing

1шт.

34

L30245

PLUG

PLUG - retainer

2шт.

35

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

BEARING - clutch

1шт.

36

L30483

SPACER

SPACER - bearing

1шт.

37

L30484

RING, SNAP

RING SNAP RING - retaining, input shaft

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

39

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

12шт.

40

L101098

CONVERTER

CONVERTER - torque

1шт.

40

LR101098

REMAN-TORQUE CONVERT

ER Remanufactured, Torque Converter

1шт.

40

LC101098

CORE-TORQUE CONVERTR

Core-Torque Converter Return Number

1шт.

41

L11172

SHIM,.0478" Thk

SHIM, , Pump engagement .0478" Thk

1шт.

42

195-2024

WASHER,3/8" x 7/8" x .065"

WASHER - flat, steel, 3/8" I.D.

1шт.

L103393

KIT

SPARE PART KIT - torque converter drive, Includes: Ref. 43 - 47

1шт.

43

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - place, 5/16" - 18 NC x 3/4"

6шт.

44

A14512

WASHER

WASHER - torque converter drive plate

6шт.

45

D87201

PLATE

PLATE - torque converter drive

1шт.

46

D81592

PLATE

PLATE - reinforcement

1шт.

47

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

BOLT - place, 3/8" - 24 NF x 1/2"

6шт.
