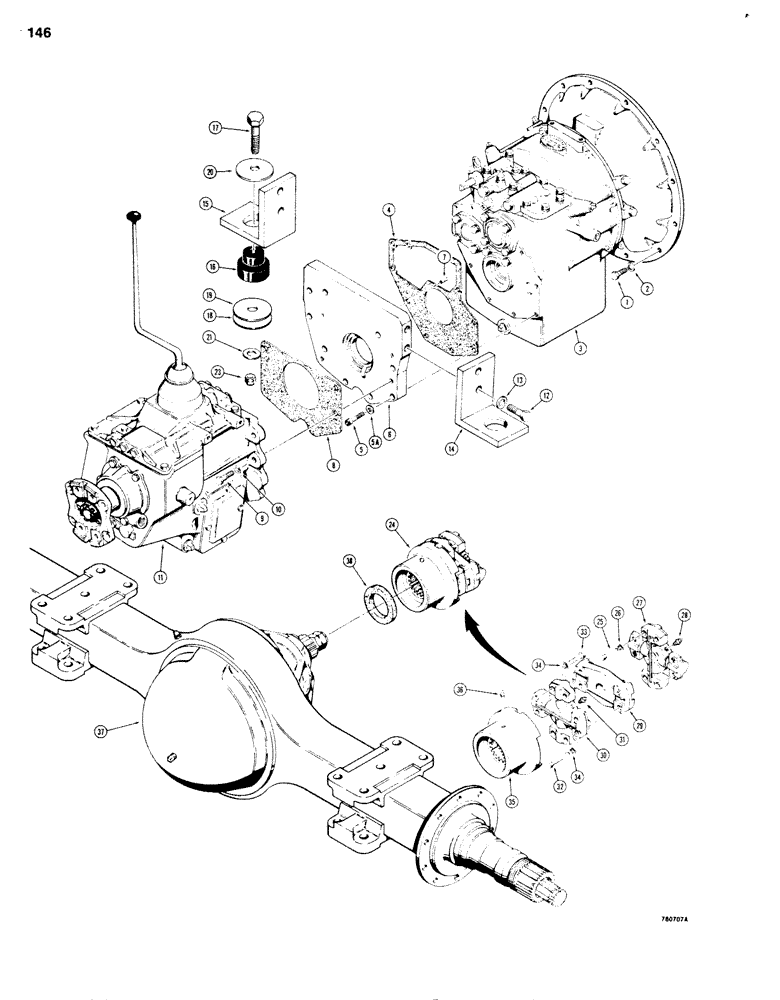

Запчасти Case 680G (146) - TRANSMISSION AND RELATED PARTS (06) - POWER TRAIN

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Transmission to flywheel housing Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

2

92-6

LOCK WASHER,3/8"

12шт.

3

D73700

TRANSMISSION

ASSEMBLY - forward and reverse, parts list Figures 146 thru 158

1шт.

4

D72754

GASKET

- forward-reverse transmission to adapter plate

1шт.

5

CASL35545

CAPSCREW

SCREW - hex, socket head, 5/16" - 18 NC x 1-1/2"

9шт.

5a

N6745

WASHER

- special

9шт.

6

D78400

ADAPTER

PLATE - adapter, forward-reverse to four speed transmission

1шт.

Refer to CE Service Bulletin 4-80 re bolts loosening or breaking and proper tightening.

1шт.

7

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , If used 1/4" x 1/2", Slotted

1шт.

8

D71460

GASKET,2.31mm Thk

- adapter plate to four speed transmission

1шт.

9

13-924

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5

- hex head, 9/16" - 12 NC x 1-1/2"

1шт.

9

13-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex head, 9/16" - 12 NC x 1-3/4"

3шт.

10

92-9

BEARING WASHER,9/16"

4шт.

11

L54268

TRANSMISSION

ASSEMBLY - four speed, parts list Figures 162 thru 168

1шт.

12

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8

4шт.

13

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

4шт.

14

L77673

BRACKET

- mounting, adapter plate to chassis right-hand, Includes: Ref. 16

1шт.

15

L77674

BRACKET

- mounting, adapter plate to chassis left-hand, Includes: Ref. 16

1шт.

16

A19066

MOUNTING PARTS

CUSHION - rubber, transmission brackets

2шт.

17

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

18

L50197

SHIM

- 16 gauge

1шт.

19

L50194

SHIM

SHUM - 12 gauge

1шт.

20

A19068

WASHER

- special rubber mount

2шт.

21

L79179

WASHER

- flat, 3/4" hardened

2шт.

23

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

24

L101856

SHAFT

DRIVE SHAFT ASSEMBLY - four speed transmission to rear axle, Includes: Ref. 25 - 36

1шт.

25

L31781

BOLT

BOLT - special, front spider bearing to four speed transmission, 3/8" - 24 NF x 1-7/8"

4шт.

26

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

L32423

KIT

SPIDER AND BEARING ASSEMBLY - front, Includes: Ref. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - front

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

29

L48345

PLATE

COUPLING - center, spider and bearing

1шт.

L31776

SPIDER

SPIDER AND BEARING ASSEMBLY - rear, Includes: Ref. 30, 31

1шт.

30

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - rear

1шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

32

28-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

- special, spider and bearing assemblies to center coupling, 3/8" - 24 NF x 3"

4шт.

33

L33426

SCREW

BOLT - special, rear spider and bearing to splined yoke, 3/8" - 24 NF x 1-3/4"

4шт.

34

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

35

D86617

YOKE

- splined, to rear axle

1шт.

35a

41-51

PLUG,Exp, 3 3/16"

- expansion, not shown

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

37

REF

INSTRUCTION

AXLE ASSEMBLY - rear drive, parts list Figures 172 thru 194

1шт.

38

L101758

SEAL

SEAL - drive shaft, at splined yoke, 4-1/2" OD

1шт.
