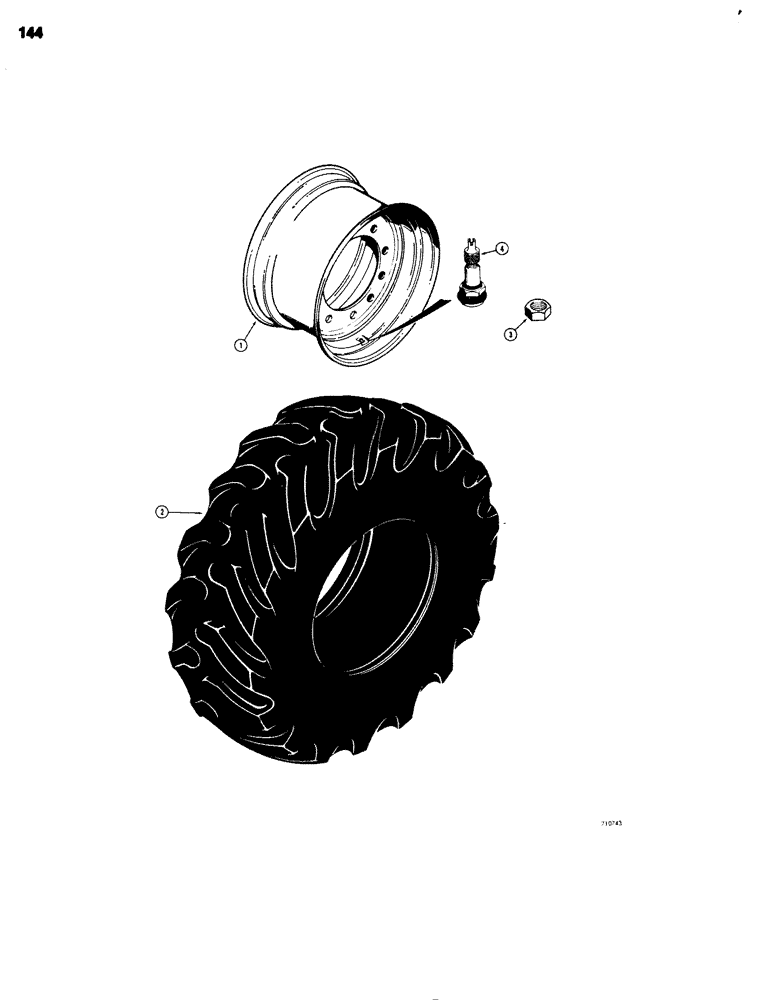

Запчасти Case 680G (144) - REAR WHEELS (06) - POWER TRAIN

1

L57550

RIM

WHEEL WHEEL - rear, used on models with 16.9 x 24-8 ply tires

2шт.

2

REF

INSTRUCTION

TIRE - 16.9 x 24-8 ply

2шт.

3

L50592

NUT

Valve stem, tube type tires only

2шт.

4

A20058

VALVE STEM

Wheel, tubeless tires only

2шт.

1

L57550

RIM

WHEEL WHEEL - rear, used on models with 16.9 x 24-10 ply tires

2шт.

2

REF

INSTRUCTION

TIRE - 16.9 x 24-10 ply

2шт.

3

L50592

NUT

Valve stem, tube type tires only

2шт.

4

A20058

VALVE STEM

Wheel, tubeless tires only

2шт.

1

L57550

RIM

WHEEL WHEEL - rear, used on models with 16.9 x 24-12 ply tires

2шт.

2

REF

INSTRUCTION

TIRE - 16.9 x 24 - 12 ply

2шт.

3

L50592

NUT

Valve stem, tube type tires only

2шт.

4

A20058

VALVE STEM

Wheel, tubeless tires only

2шт.

1

L57552

WHEEL (STEERING)

SPARE PART Rear, used on models with 16.9 x 28-8-10 ply tires

2шт.

2

REF

INSTRUCTION

TIRE - 16.9 x 28-8 or 10 ply

2шт.

3

L50592

NUT

Valve stem, tube type tires only

2шт.

4

A20058

VALVE STEM

Wheel, tubeless tires only

2шт.

1

L57551

RING

WHEEL - rear, used on models with 19.5L x 24-12 ply tires

2шт.

2

REF

INSTRUCTION

TIRE - 19.5L x 24-12 ply

2шт.

3

L50592

NUT

Valve stem, tube type tires only

2шт.

4

A20058

VALVE STEM

Wheel, tubeless tires only

2шт.
