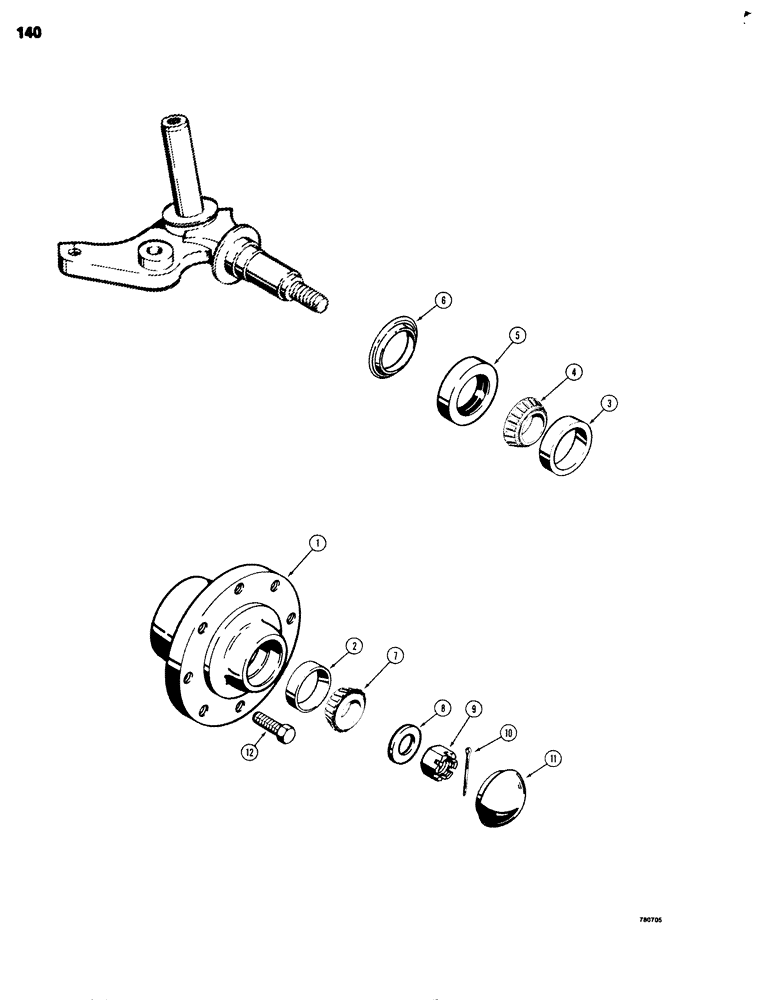

Запчасти Case 680G (140) - FRONT WHEEL HUB AND BEARINGS (05) - STEERING

A66759

HUB

ASSEMBLY - front wheel, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

HUB - front wheel

1шт.

2

G15214

BEARING CUP

CUP - bearing, outer

1шт.

3

A61446

BEARING CUP

CUB - bearing, inner

1шт.

4

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, inner

2шт.

5

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- oil, hub

2шт.

6

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- oil, spindle

2шт.

7

G15215

ROLLER BEARING

CONE - bearing, outer

2шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

- thrust, outer bearing

2шт.

9

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, castle

2шт.

10

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

11

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - bearing cover

2шт.

12

L76788

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

16шт.
