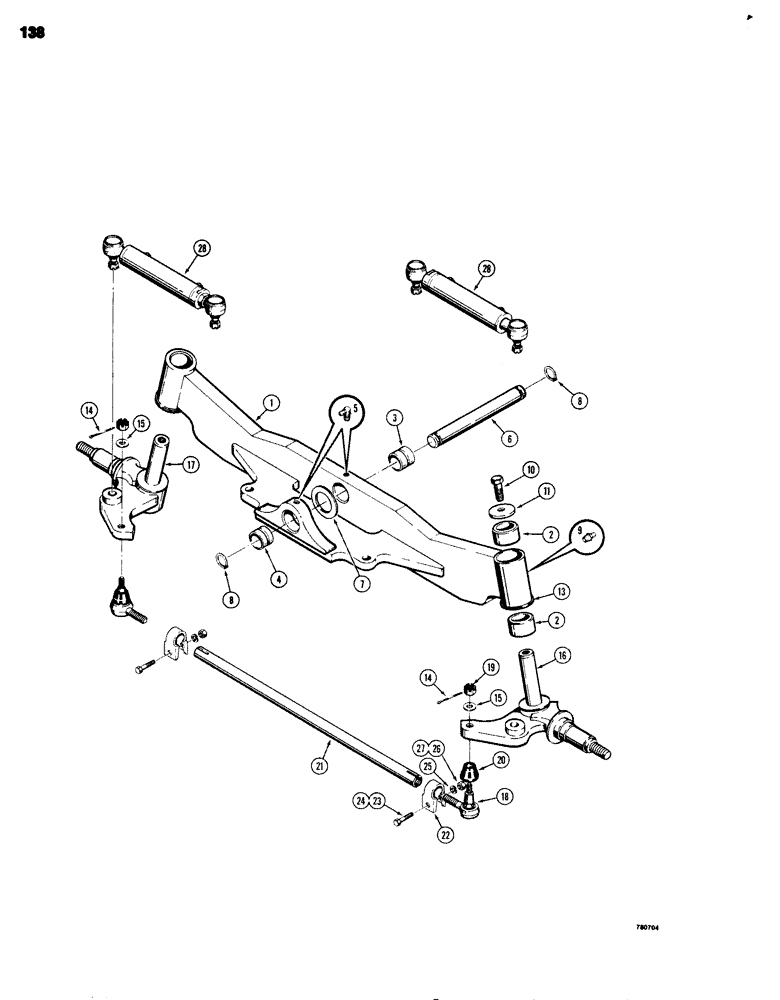

Запчасти Case 680G (138) - FRONT AXLE, SPINDLES AND TIE ROD (05) - STEERING

1

L73640

CENTER AXLE

AXLE ASSEMBLY - front steering, Includes: Ref. 2 - 4

1шт.

2

L71756

BUSHING,61.98mm ID x 66.65mm OD x 38.1mm L

- steering arm pin

4шт.

3

L73643

BUSHING

-, Serial Range: axle-chassis

1шт.

4

L73635

BUSHING

- axle to chassis, rear

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

6

L74345

SHAFT

PIN - pivot, Serial Range: axle-chassis

1шт.

7

L11917

WASHER

SHIM -, Serial Range: axle-chassis

1шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

10

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

11

A61406

WASHER

- steering arm pit

2шт.

13

L71369

SHIM

- thrust, steering

1шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

15

195-45

WASHER,3/4"

2шт.

16

L73886

ARM

SPINDLE AND KING PIN - steering, right-hand

1шт.

17

L73887

SPINDLE

AND KING PIN - steering, left-hand

1шт.

L70639

ROD

TIE ROD ASSEMBLY - front steering, Includes: D66470, D66467 and Ref. 18 - 27

1шт.

D66470

BALL JOINT

ASSEMBLY - tie rod to spindle, right-hand, Includes: Ref. 18 - 20

1шт.

D66467

ARTICULATION

BALL JOINT ASSEMBLY - tie rod to spindle, left-hand, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

BALL JOINT - tie rod

1шт.

19

129-610

SLOTTED NUT,5/8"-18, G5

1шт.

20

A31186

BOOT

SEAL - dust cover

1шт.

21

D66468

TUBE

- tie rod, length 50.56"

1шт.

22

D75809

CLAMP

- ball joint, retaining

2шт.

23

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- hex head, 1/2" - 20 NF x 2-1/2", if used

2шт.

24

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plate, if used

2шт.

25

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

26

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF, if used

2шт.

27

131-1116

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2" - 13 NC, plated, if used

2шт.

28

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, parts list Figure 136

2шт.

The nuts showing on these cylinders are a 7/8"-14 UNF nut, P/N 129-240 (now subs to 425-1314).

1шт.
