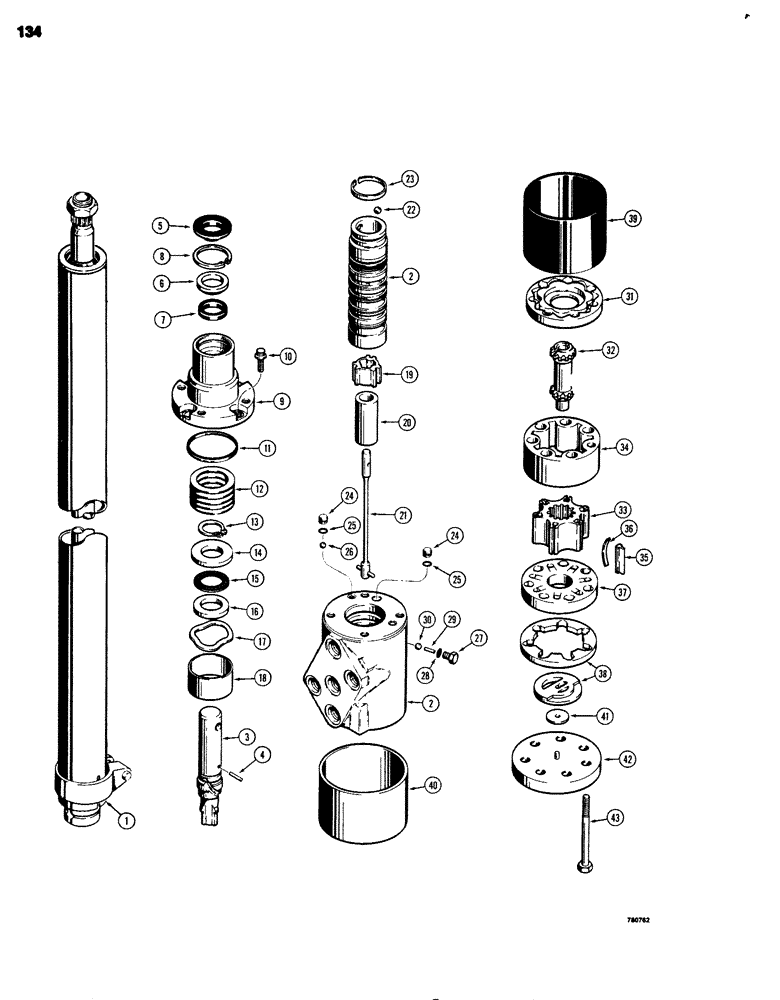

Запчасти Case 680G (134) - STEERING VALVE (05) - STEERING

L59941

STEERING COLUMN

ASSEMBLY, Includes: Ref. 1 - 43

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT AND TUBE - parts list Figure 136

1шт.

L36068

MOTOR HOUSING

VALVE ASSEMBLY - steering, Includes: Ref. 2 - 43

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL ASSEMBLY

1шт.

3

A43551

SHAFT

- input, pump

1шт.

4

D53297

PIN

- torsion bar retaining

1шт.

D73671

SEAL

KIT - shaft, Includes: Ref. 5 - 7

1шт.

5

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- dust

1шт.

6

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL AND SPACER - shaft

1шт.

8

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, brg

1шт.

9

D65139

COVER

- upper

1шт.

10

A43567

BOLT

SCREW - 5/16" - 18 NC x 3/4"

4шт.

11

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- cover

1шт.

12

A44435

SHIM

KIT - cover

1шт.

13

A43720

RING

- retaining shaft

1шт.

14

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust

1шт.

15

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust

1шт.

16

F19634

BEARING WASHER

WASHER - thrust

1шт.

17

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave

1шт.

18

A43728

SPACER

- bearing

1шт.

19

A43554

RING

- drive

1шт.

20

L36070

SPACER

- drive link

1шт.

21

L36069

BRACKET

BAR - torsion

1шт.

22

211-9

BALL,5/16" Dia

- 5/16" Dia

1шт.

23

A43560

SPRING

- preload

1шт.

L36015

PLUG

ASSEMBLY - valve, Includes: Ref. 24, 25

1-2шт.

24

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

25

A43729

O-RING

- seal

1шт.

26

211-7

BALL,1/4" Dia

- check 1/4" Dia

1шт.

F82943

VALVE

CHECK ASSEMBLY - ball type, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

PLUG - check assembly

1шт.

28

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

29

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Check assembly 1/8" x 15/16", Slotted

1шт.

30

211-7

BALL,1/4" Dia

- check assembly 1/4" Dia

1шт.

31

A43569

BUSHING

SPACER - link

1шт.

32

A43568

LINK

- drive

1шт.

D66466

ROTOR

SET - valve, Includes: Ref. 33 - 36

1шт.

33

NSS

NOT SOLD SEPARAT

GEAR - star

1шт.

34

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

35

L36076

PIVOT

VANE - valve star

6шт.

36

L36075

SPRING

- vane

6шт.

37

A43573

MANIFOLD

- valve

1шт.

38

A43574

COMMUTATOR

- valve

1шт.

39

D74439

SEAL ASSY.

SEAL - rotor

1шт.

40

D71233

RETAINER

REATINER - seal

1шт.

41

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - wear, rotor

1шт.

42

A45182

COVER

- end

1шт.

43

L36074

- hex head 5/16" - 18 NC x 3-1/4" special

7шт.
