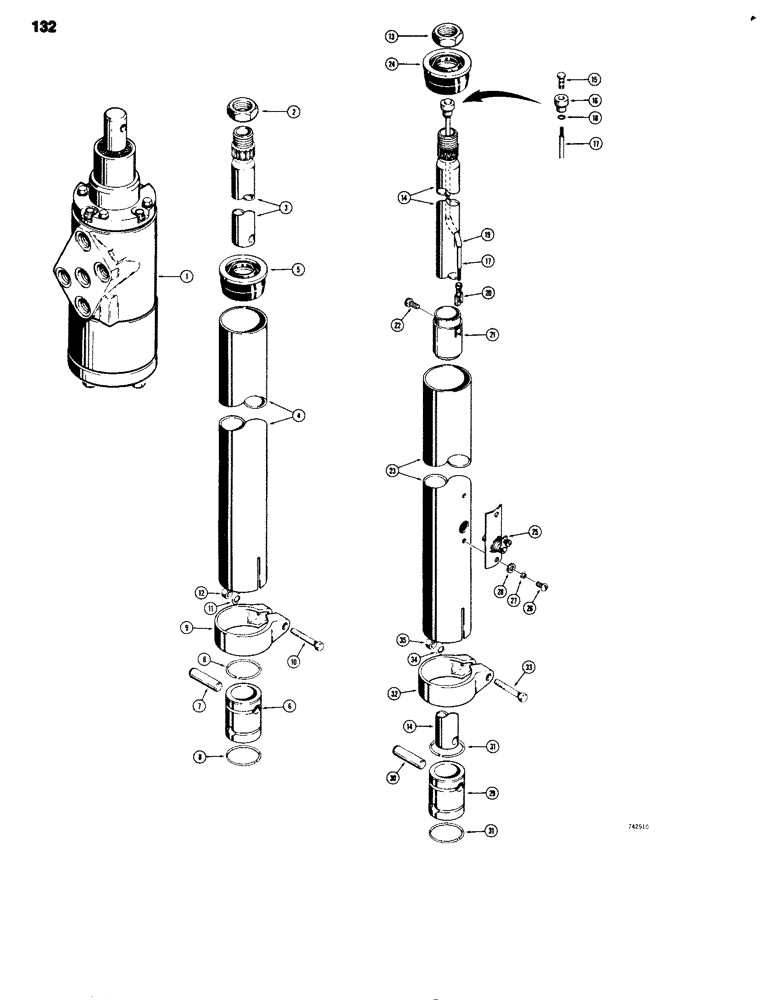

Запчасти Case 680G (132) - STEERING COLUMN (05) - STEERING

L59941

STEERING COLUMN

ASSEMBLY, Includes: Ref. 1 - 35

1шт.

1

L36068

MOTOR HOUSING

VALVE ASSEMBLY - steering, parts list Figure 134

1шт.

NSS

NOT SOLD SEPARAT

SHAFT AND TUBE - steering column, without electric horn, Includes: Ref. 2 - 12

1шт.

2

A14567

JAM NUT

- steering wheel

1шт.

3

L36008

SHAFT - steering column

1шт.

L36009

TUBE ASSEMBLY - shaft, Includes: Ref. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - jacket, shaft

1шт.

5

L35675

SEAL

BEARING AND SEAL - shaft

1шт.

6

L35654

PIN

- coupling

2шт.

D72851

KIT

- coupling, Includes: Ref. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

COUPLING - steering column shaft and valve shaft

1шт.

8

A43560

SPRING

RING - pin retaining

2шт.

L35657

CLAMP

ASSEMBLY - tube, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

CLAMP - tube

1шт.

10

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- hex head, 5/16" - 24 NF x 2"

1шт.

11

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

12

129-122

NUT,5/16"-24, G5

1шт.

NSS

NOT SOLD SEPARAT

SHAFT AND TUBE - steering column, with electric horn, Includes: Ref. 13 - 35

1шт.

13

A14567

JAM NUT

- steering wheel

1шт.

14

D66476

SHAFT - steering column

1шт.

D66478

CABLE ASSEMBLY - electric horn, Includes: Ref. 15 - 20

1шт.

15

A14954

TERMINAL STRIP

TERMINAL - electric horn

1шт.

16

A13058

FERRULE

- cable guide

1шт.

17

NSS

NOT SOLD SEPARAT

CABLE - electric horn

1шт.

18

T30271

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- cable protection

1шт.

19

D66479

TUBING - cable protection

1шт.

20

D66480

CLAMP

TERMINAL - electric horn

1шт.

21

D66477

ELECTRO/HYD CONTACT

RING - contact, electric horn

1шт.

22

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- ring mounting Slotted Pan Hd, #8-32 x 1/4"

1шт.

D66475

TUBE ASSEMBLY - steering column, Includes: Ref. 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

TUBE - steering column

1шт.

24

L35675

SEAL

BEARING AND SEAL - steering column

1шт.

25

A13060

BRUSH, COMMUTATOR

TERMINAL - electric horn connections

1шт.

26

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

2шт.

27

193-1

WASHER - internal tooth lock, No 8

2шт.

28

195-10

WASHER,#8

2шт.

29

D72851

KIT

COUPLING ASSEMBLY - includes Ref. 31

1шт.

30

L35654

PIN

- coupling

2шт.

31

A43560

SPRING

RING - pin retaining, part of Ref. 29

2шт.

L35657

CLAMP

ASSEMBLY - tube, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

CLAMP - tube

1шт.

33

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- hex head, 5/16" - 24 NF x 2"

1шт.

34

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

35

129-122

NUT,5/16"-24, G5

1шт.
