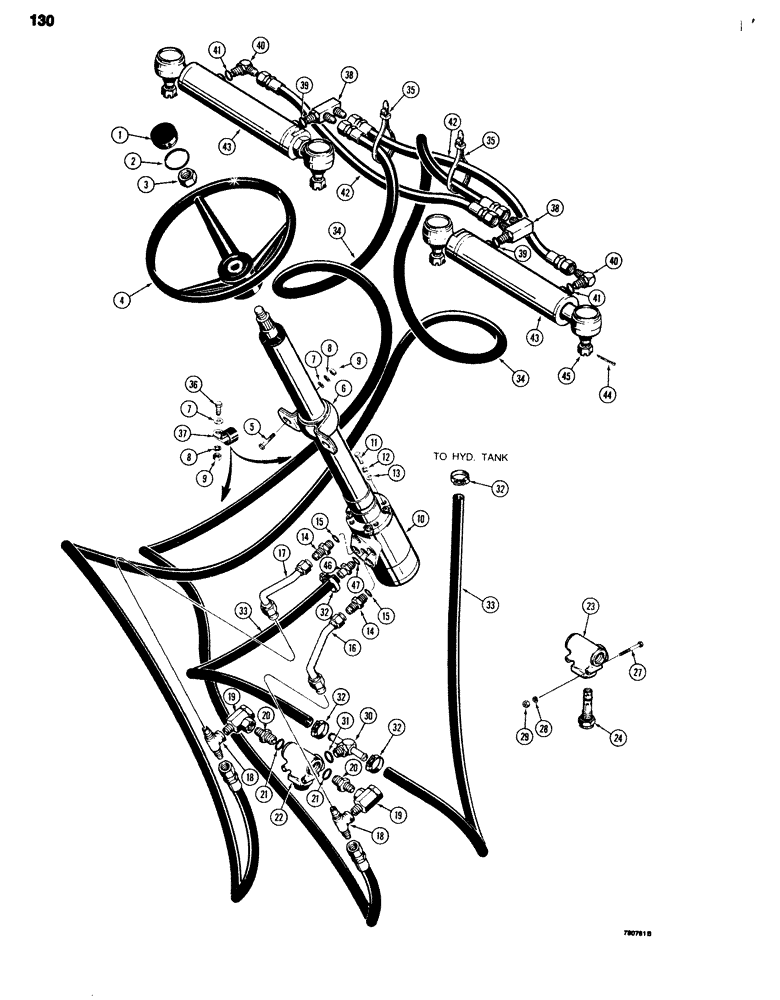

Запчасти Case 680G (130) - STEERING HYDRAULIC CIRCUIT, VALVE TO CYLINDERS (05) - STEERING

1

A62210

PLUG

CAP - steering wheel

1шт.

2

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

- cap

1шт.

3

A14567

JAM NUT

- special, steering wheel mounting

1шт.

4

A65544

STEERING WHEEL

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

L45471

BEARING

- column support

1шт.

7

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

10

REF

INSTRUCTION

VALVE - steering, see Figures 134 and 136

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

12

92-5

LOCK WASHER,5/16"

3шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

3шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - straight, male adapter, Incl. Ref. 15

2шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

16

L100211

TUBE - steering supply, right-hand

1шт.

17

L100209

TUBE - steering supply, left-hand 0.375" OD

1шт.

18

218-573

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Fem Br

FITTING - at check valve, 3-way

2шт.

19

L59038

LOCK VALVE

VALVE - check

2шт.

20

218-5442

HYD CONNECTOR,3/4"-16 O-Ring x 3/8" NPTF

FITTING - check valve to relief valve, Includes: Ref. 21

2шт.

22

L59037

LOCK VALVE

VALVE - secondary relief, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

24

L36080

CARTRIDGE

ASSEMBLY - relief, Includes: Ref. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief, non-adjustable, not shown

1шт.

26

R31000

SEAL KIT

KIT - repair, seal, not shown

1шт.

27

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

25-104

NUT,1/4"-20, G5

2шт.

30

L100139

TEE

FITTING - barb stem, 3-way, Includes: Ref. 31

1шт.

32

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

33

D64931

LARGE HOSE

HOSE - return, 1/2" (13 mm) x 19-1/2" (495 mm) long

2шт.

34

L59105

HOSE ASSY.

HOSE - valve to cylinders, 85" (2159 mm) long

2шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - hose tie

2шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

37

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

4шт.

38

L57911

FITTING

- special, closed end of cylinder, Includes: Ref. 39

2шт.

39

218-005

O-RING - fitting

1шт.

40

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 90 degree adjustable, rod end of cylinder, Includes: Ref. 41

2шт.

41

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

42

L57299

HOSE ASSY.

HOSE - right-hand to left-hand cylinders, 36" (914 mm) long

2шт.

43

G102602

CYLINDER

- steering, parts list Figure 136

2шт.

45

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8" - 14 NF

4шт.

46

217-397

FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB

- Hose stem, straight, Incl Ref 47 1/2" Hose x 9/16"-18 ORB, Beaded

1шт.

47

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

44

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

4шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.
