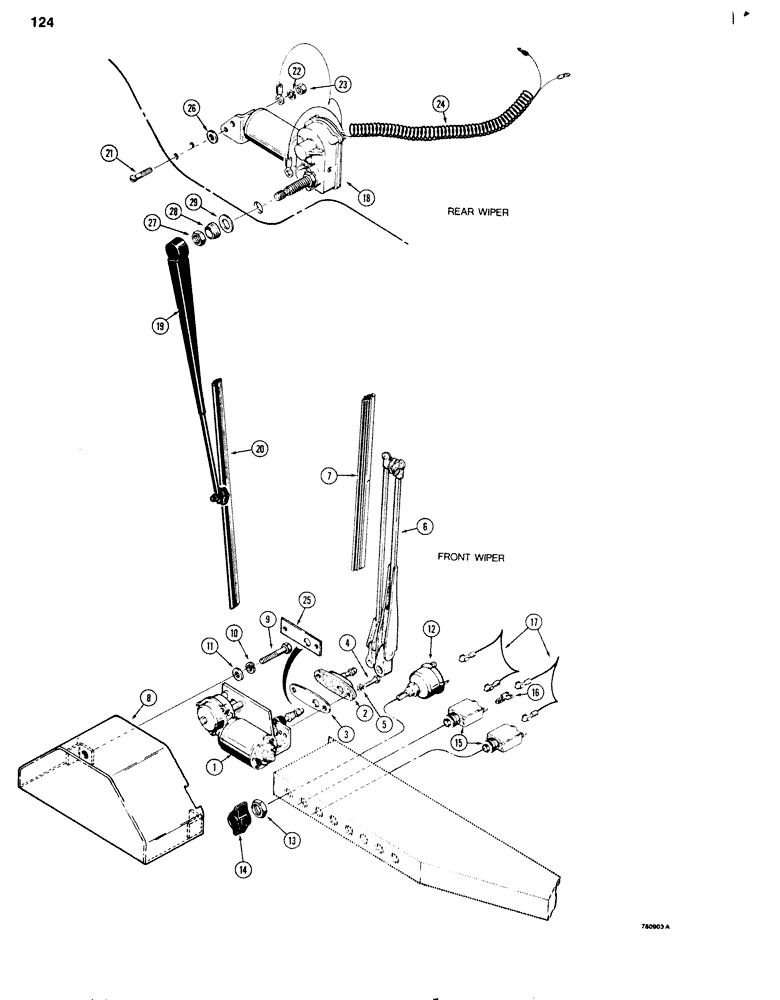

Запчасти Case 680G (124) - FRONT AND REAR WINDSHIELD WIPERS (04) - ELECTRICAL SYSTEMS

1

F93654

WIPER MOTOR

MOTOR - windshield wiper, front, parts list Figure 126

1шт.

2

L35753

ADAPTER

- panograph, wiper

1шт.

3

D70646

BUSHING

SPACER

1шт.

4

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex head, 1/4" - 28 NF x 3/4", plated

2шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

6

L35260

ARM

- wiper, 20" (508 mm)

1шт.

7

F42214

WIPER

BLADE - wiper, 18" (274 mm)

1шт.

8

D83202

COVER - wiper motor

1шт.

The two brackets shown in phantom on the illustration are NSS items.

1шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

12

F43359

SWITCH

- wiper motor

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- hex, switch mounting

1шт.

14

L74694

KNOB

- wiper motor

1шт.

15

L76726

BREAKER

- wiper, 3 amp

2шт.

16

F43508

SPADE TERMINAL

TERMINAL - double

1шт.

17

F43266

ELECTRICAL WIRE

WIRE - jumper

2шт.

18

D83074

MOTOR HOUSING

MOTOR - wiper, rear

1шт.

19

F42213

ARM

- wiper, rear, 16"

1шт.

20

F43938

WIPER BLADE

BLADE - wiper, rear

1шт.

21

187-627

SCREW - machine, No. 10 - 32 NF x 3/4"

1шт.

22

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

129-37

NUT,#10-32

1шт.

24

D83113

ELECTRICAL WIRE

CABLE - rear wiper

1шт.

25

N6549

PLATE - wiper mounting

1шт.

26

195-513

WASHER,#10

- flat, no, 10

2шт.

N7778

PACKAGE

KIT - hardware, rear wiper motor shaft, Includes: Ref. 27 - 29

1шт.

27

D74631

NUT

- special, rear wiper motor shaft

1шт.

28

NSS

NOT SOLD SEPARAT

SPACER - rear wiper motor shaft

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - leather, rear wiper motor shaft

1шт.
