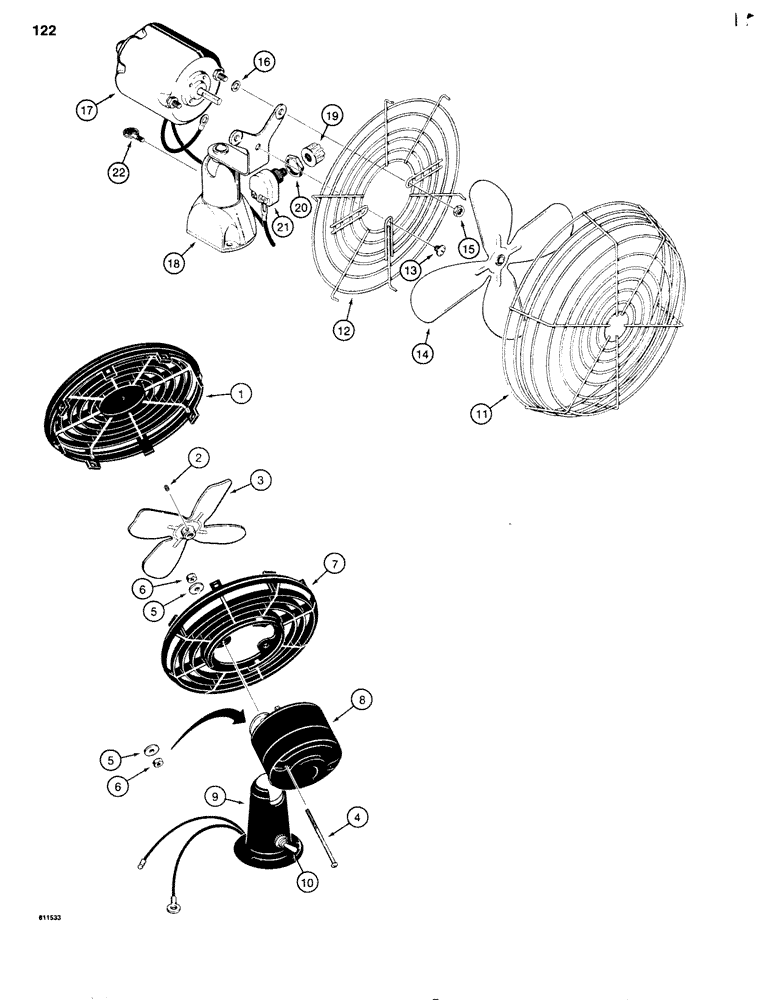

Запчасти Case 680G (122) - L105826 AND L48971 CAB DEFROSTER (04) - ELECTRICAL SYSTEMS

L105826

FAN

- defroster, three bolt base, Electrohome 2899-006-050, Includes: Ref. 1 - 10

1шт.

1

N6272

GUARD

GRILLE - fan, front

1шт.

2

178-819

SET SCREW,Hex Soc, #10-32 x 3/16"

SCREW - set, No. 10 - 32 NF x 3/16"

1шт.

3

N6273

FAN

BLADE - fan

1шт.

4

182-576

SCREW,Slotted Pan Hd, #10-32 x 3"

- machine, No. 10 - 32 NF x 3", plated

2шт.

5

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

6

129-37

NUT,#10-32

4шт.

7

N6274

GUARD

GRILLE - fan, rear

1шт.

8

NSS

NOT SOLD SEPARAT

MOTOR - fan

1шт.

9

NSS

NOT SOLD SEPARAT

BASE - fan

1шт.

10

N6275

SWITCH

- control

1шт.

L48971

FAN

- defroster, four bolt base, Hupp C61205, Includes: Ref. 11 - 15, 17 - 22

1шт.

11

L30907

GUARD

GRILLE - fan, front

1шт.

12

L30904

GRILLE

- fan, back

1шт.

13

L30906

BOLT

- special

1шт.

14

L30902

FAN

BLADE ASSEMBLY - fan

1шт.

15

225-14208

NUT,#8-36

- hex, no. 8 - 35 NF

2шт.

16

L35760

WASHER

- special

2шт.

17

D54871

MOTOR

- fan, 24 volt

1шт.

18

L30900

BASE

- fan

1шт.

19

L30909

KNOB

- control

1шт.

20

L30908

NUT

- hex, special

1шт.

21

D54872

SWITCH

- control, 24V

1шт.

22

L30910

SCREW

- thumb swivel, if used

1шт.
