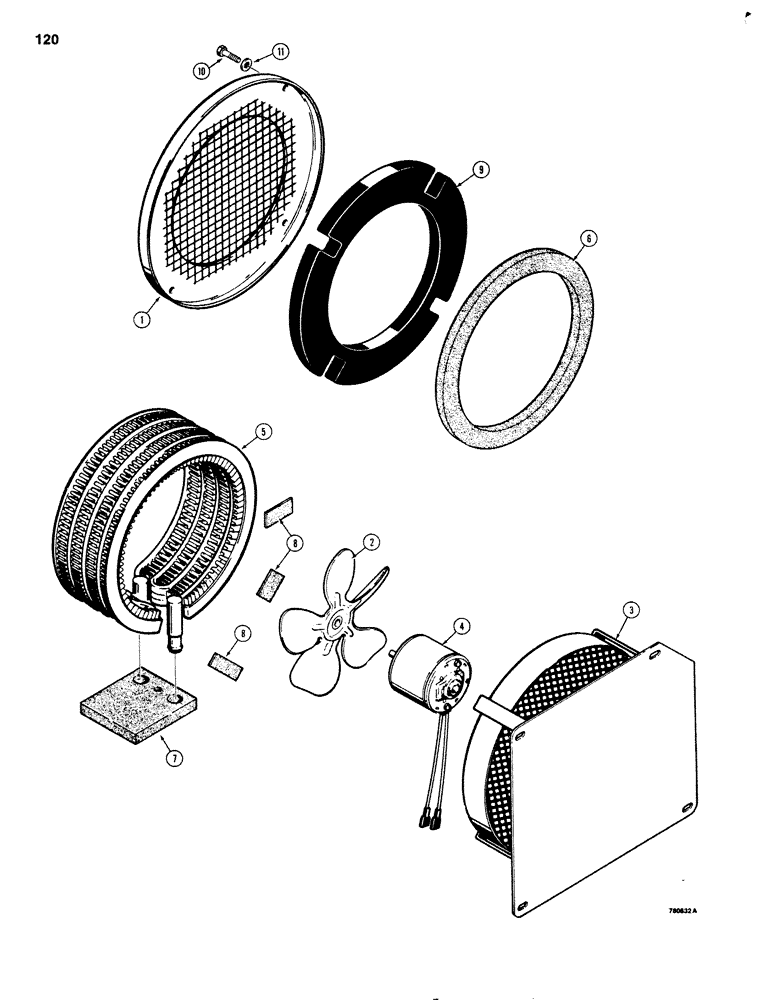

Запчасти Case 680G (120) - ELECTRICAL SYSTEM, CAB HEATER (04) - ELECTRICAL SYSTEMS

L104786

HEATER

ASSEMBLY - operator's cab, Includes: Ref. 1 - 11

1шт.

1

F43813

GRILLE

COVER - heater

1шт.

2

F43812

FAN

- heater

1шт.

3

NSS

NOT SOLD SEPARAT

CASE - heater

1шт.

4

D83117

MOTOR

ASSEMBLY - heater fan

1шт.

5

N6518

HEATER ASSY.

CORE - heater

1шт.

6

D83118

ISOLATOR

INSULATOR - heater

1шт.

P/N D83118 is not correct as shown. The part is a motor insulator that wraps around the body of the motor. Refer to W30 wheel loader for correct illustration of this part.

1шт.

7

N6519

SEAL

- tube, replaces two small rings

1шт.

8

D83120

FELT

3шт.

9

D83121

GASKET

- core

1шт.

10

187-996

SELF-TAP SCREW,1/4" x 1"

BOLT - hex head, self-tapping, 1/4" - 20 NC x 1"

4шт.

11

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.
