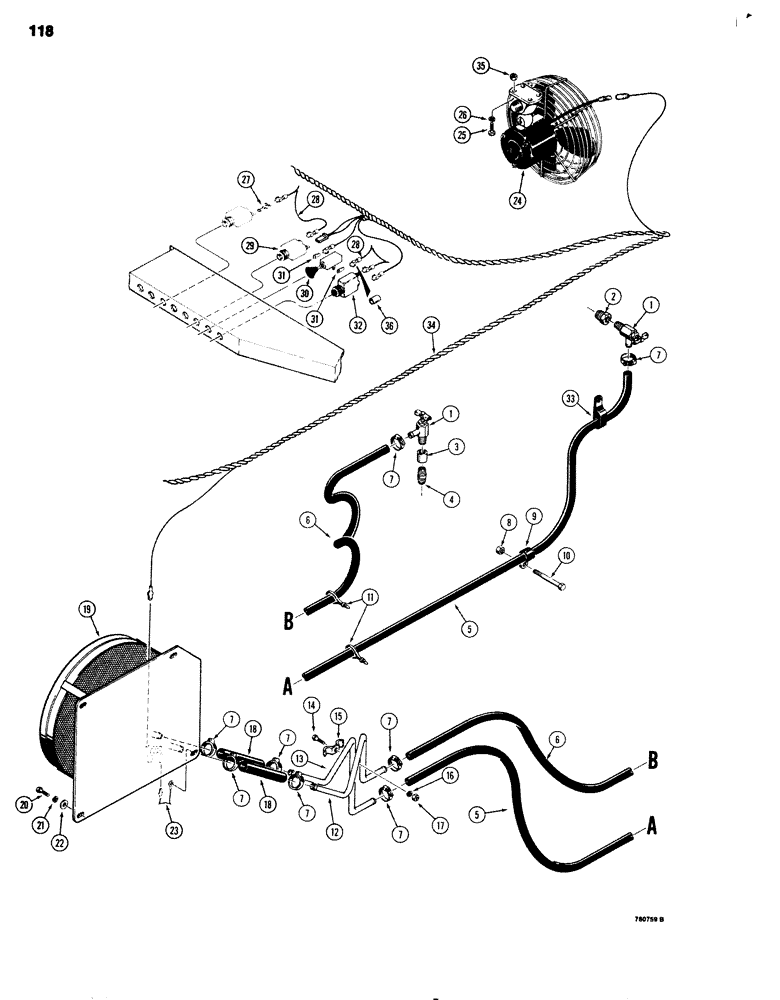

Запчасти Case 680G (118) - CAB HEATER AND DEFROSTER SYSTEM (04) - ELECTRICAL SYSTEMS

1

A16764

VALVE

- shutoff

2шт.

2

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

3

221-337

COUPLING,Pipe, 3/8" NPT

- 3/8" NPT

1шт.

4

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT X 1"

1шт.

5

REF

INSTRUCTION

HOSE - heater, 5/8 (16 mm) I.D. x 88" (2235 mm) long, cut from A42610 roll

1шт.

6

REF

INSTRUCTION

HOSE - heater, 5/8" (16mm) I.D. x 63" (1600mm) long, cut from A42610 roll

1шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

8шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

9

R21385

CLAMP

- hose

1шт.

10

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie, hose retaining

2шт.

12

L100342

HEATER TUBE,0.625" OD

TUBE - heater, right hand

1шт.

13

L101088

HEATER TUBE,0.625" OD

TUBE - heater, left hand

1шт.

14

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

15

L100272

CLAMP

- tube

1шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

25-104

NUT,1/4"-20, G5

1шт.

18

L100488

HOSE

- heater, 5/8" (16mm) x 4" (102mm) long

2шт.

19

REF

INSTRUCTION

HEATER - cab, parts list Figure 120

1шт.

20

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

23

L100452

ELECTRICAL WIRE

WIRE - heater ground

1шт.

24

REF

INSTRUCTION

DEFROSTER FAN - parts list Figure 122

1шт.

25

169-99

SCREW,Sl Fil Hd, #10 - 24 x 5/8"

- slotted, No. 10 - 24 NC x 5/8"

4шт.

26

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

27

F43508

SPADE TERMINAL

TERMINAL - double

1шт.

28

F43266

ELECTRICAL WIRE

WIRE - jumper

2шт.

29

F43509

BREAKER

- defroster, 6 amp

1шт.

30

L33827

SWITCH

- heater

1шт.

31

L59682

TERMINAL CONNECTOR

TERMINAL - heater switch

2шт.

32

L59970

BREAKER

- heater, 5 amp

1шт.

33

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- heater and air compressor hoses

1шт.

34

D83092

HARNESS

- cab wiring

1шт.

35

129-7

NUT,Hex, #10 - 24

- hex, No. 10

4шт.

36

223-154

CONNECTOR, ELEC

COVER - terminal, heater switch

1шт.
