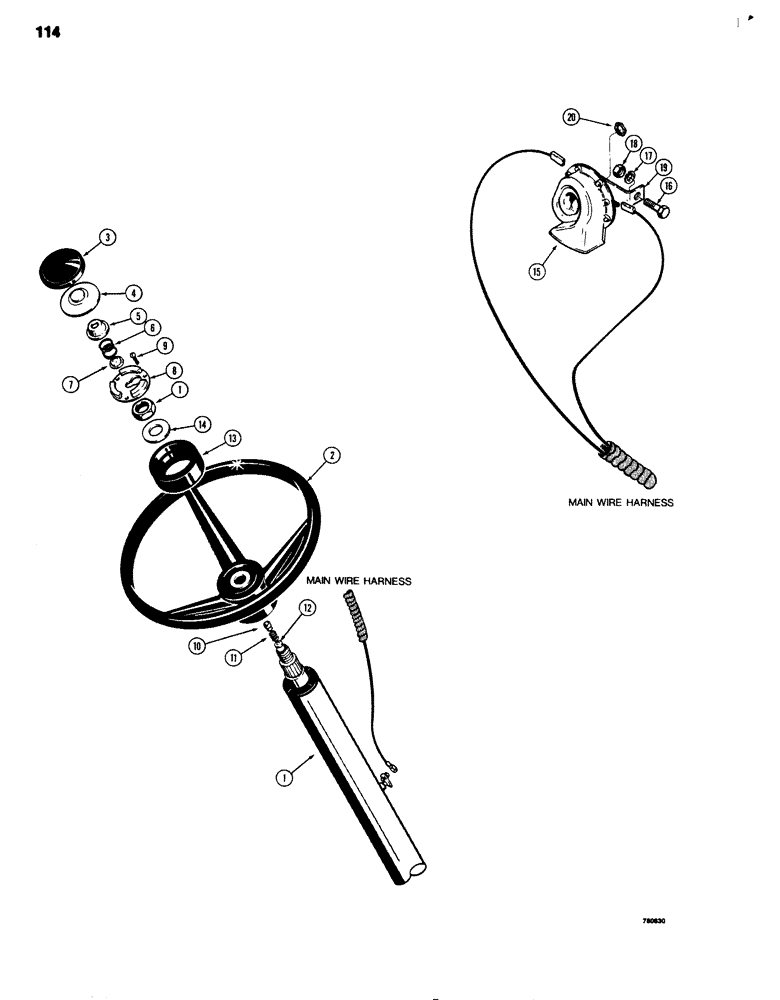

Запчасти Case 680G (114) - ELECTRIC HORN (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

GEAR AND VALVE - steering, parts list Figure 132 and 134

1шт.

2

A65544

STEERING WHEEL

1шт.

A16843

BUTTON

ASSEMBLY - horn, Includes: Ref. 3 - 12

1шт.

3

A13088

CAP

COVER - horn button

1шт.

4

A13089

BUTTON

- horn

1шт.

5

A13092

CAP

CUP - contact

1шт.

6

A13091

SPRING

- button

1шт.

7

A13090

CAP

- contact

1шт.

8

A13093

PLATE ASSY.

PLATE - base

1шт.

9

187-321

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1/2"

SCREW - self-tapping, No. 8 - 32 NC x 1/2"

3шт.

10

A13058

FERRULE

- insulating

1шт.

11

A13059

SPRING

- contact

1шт.

12

A13057

CUP ASSY.

CONTACT - lower

1шт.

13

L60175

ADAPTER

ADAPTOR - horn button

1шт.

14

195-2099

WASHER,1 1/64" x 2" x .049"

- flat, 7/8", plated

1шт.

15

L10353

HORN

- electric, 24 volt, for service order D77650

1шт.

Part of horn assembly P/N D77650

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

19

L73799

BRACKET

- horn mounting

1шт.

Part of horn assembly P/N D77650

1шт.

20

L30866

LOCK NUT

- horn mounting

1шт.

Part of horn assembly P/N D77650

1шт.

D77650

HORN

ASSEMBLY - Includes: Ref. 15, 19, 20

1шт.
