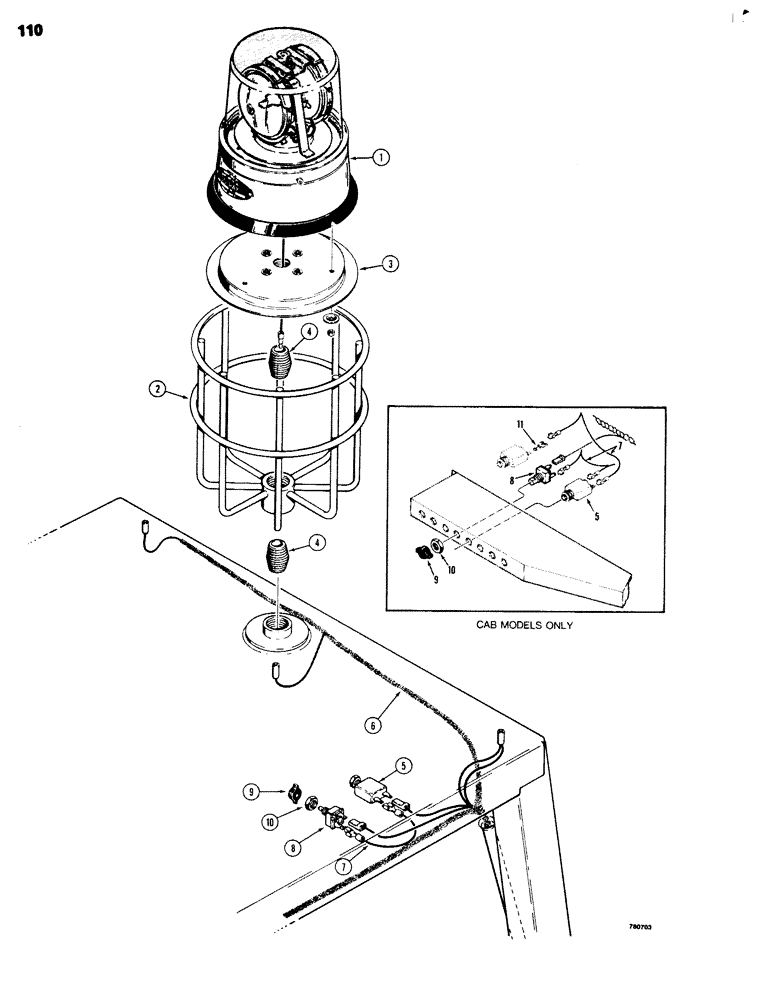

Запчасти Case 680G (110) - ROTATING BEACON - CAB AND CANOPY (04) - ELECTRICAL SYSTEMS

1

L16100

BEACON

- rotating, 360 degree, amber lens, parts list Figure 112

1шт.

1

L16676

BEACON

- rotating, 360 degree, red lens, parts list Figure 112

1шт.

2

L16615

CAGE

- beacon

1шт.

This item now subs to P/N L104480, which includes Ref. 3 (L16101 base) and Ref. 4 (221-236 pipe nipple) as part of assembly.

1шт.

3

L16101

BASE - mount, beacon

1шт.

4

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, 1" NPT

2шт.

5

F43509

BREAKER

CIRCUIT BREAKER - 6 amp

1шт.

6

L100446

HARNESS - canopy wiring

1шт.

6

D83092

HARNESS

- cab wiring, not shown

1шт.

7

F43266

ELECTRICAL WIRE

WIRE - jumper, breaker to beacon switch

1-2шт.

8

L70872

SWITCH

- beacon, at instrument panel

1шт.

9

L74694

KNOB

- switch

1шт.

10

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- lock

1шт.

11

F43508

SPADE TERMINAL

TERMINAL - double, cab model only

1шт.
