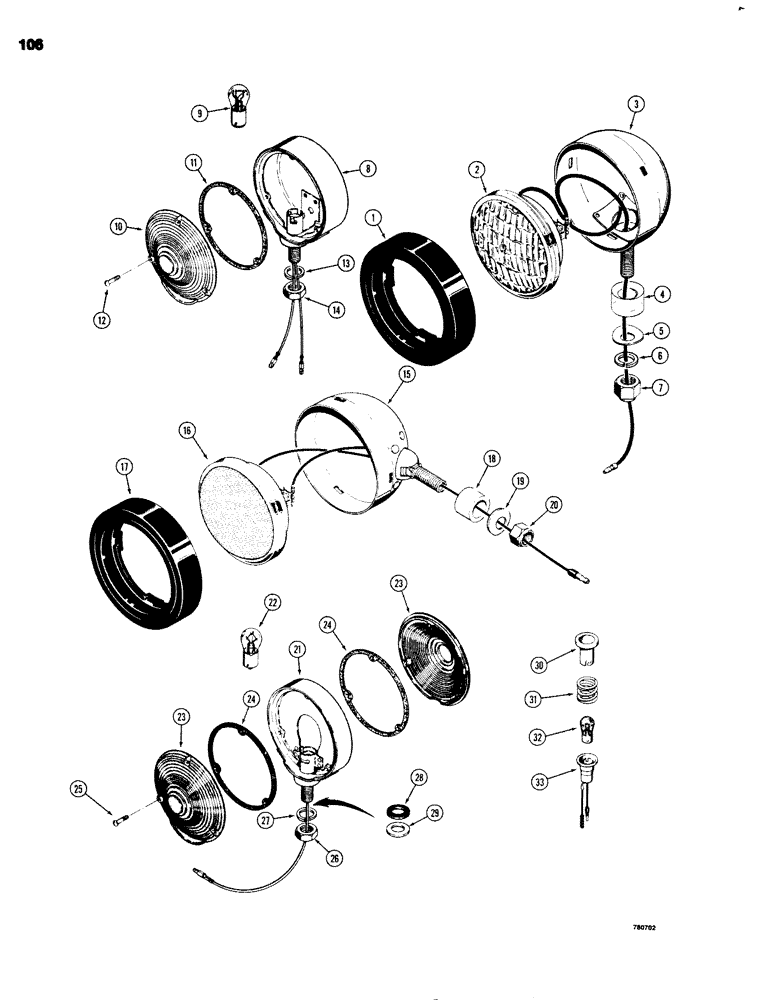

Запчасти Case 680G (106) - ELECTRICAL SYSTEM/HEADLIGHT/STOP & TAIL/REAR FLOOD LIGHT/TURN SIGNAL & FLASHER, ENGINE WARNING LIGHT (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
L79908
LIGHT
ASSEMBLY - front 24 volt, head, order L105764, Includes: Ref. 1 - 7
2шт.
1
A25213
RETAINER
- light
1шт.
2
L10499
LAMP
- sealed beam, No. 4589
1шт.
3
NSS
NOT SOLD SEPARAT
HOUSING - lamp
1шт.
4
D37048
BUSHING
- light pivot
1шт.
5
D37049
WASHER
- special
1шт.
6
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
7
129-165
JAM NUT,Jam, 1/2"-20, G5
1шт.
L43737
LIGHT
ASSEMBLY - stop and tail, Includes: Ref. 8 - 14
2шт.
8
NSS
NOT SOLD SEPARAT
BODY - light
1шт.
9
L33194
BULB
- light, No. 1662
1шт.
L32213
LENS
KIT - replacement, Includes: Ref. 10 - 12
1шт.
10
NSS
NOT SOLD SEPARAT
LENS - red
1шт.
11
NSS
NOT SOLD SEPARAT
GASKET - lens
1шт.
12
173-279
SCREW,Sl Rnd Hd, #6 - 32 x 5/8"
- machine, No. 6 - 32 NC x 5/8"
3шт.
13
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
14
129-125
NUT,1/2"-20, G5
1шт.
D71193
LAMP BASE
LIGHT ASSEMBLY - rear flood, 24 volt, Includes: Ref. 15 - 20
2шт.
15
NSS
NOT SOLD SEPARAT
BODY - light
1шт.
16
A25212
LAMP
- sealed beam, No. 4593
1шт.
17
A25213
RETAINER
- light
1шт.
18
D37048
BUSHING
- light pivot
1шт.
19
D37049
WASHER
- special
1шт.
20
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - hex, self lock, 1/2" - 20 NF
1шт.
L43738
INTERIOR LIGHT
LIGHT ASSEMBLY - turn signal and flasher, Includes: Ref. 21 - 27
2шт.
21
NSS
NOT SOLD SEPARAT
BODY - light
1шт.
22
L32257
BULB
- light, No.307, 24 V
1шт.
L32214
LENS
KIT - replacement, Includes: Ref. 23 - 27
2шт.
23
NSS
NOT SOLD SEPARAT
LENS - signal light
1шт.
24
NSS
NOT SOLD SEPARAT
GASKET - lens
1шт.
25
173-279
SCREW,Sl Rnd Hd, #6 - 32 x 5/8"
- machine,No. 6 - 32 NC x 5/8"
3шт.
26
129-125
NUT,1/2"-20, G5
1шт.
27
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
28
L32256
WASHER
- rubber
1шт.
29
195-106
WASHER,1/2"
- flat, 1/2"
1шт.
L74021
LIGHT
ASSEMBLY - engine warning, backhoe console, with red bulb and clear lens, Includes: Ref. 30 - 33
1шт.
30
D83172
LENS AND HOUSING - clear
1шт.
31
L32971
SPRING - light
1шт.
32
A23454
BULB
- red, No. 1895R
1шт.
33
NSS
NOT SOLD SEPARAT
SOCKET - light base
1шт.
Выбрано товаров: 40
