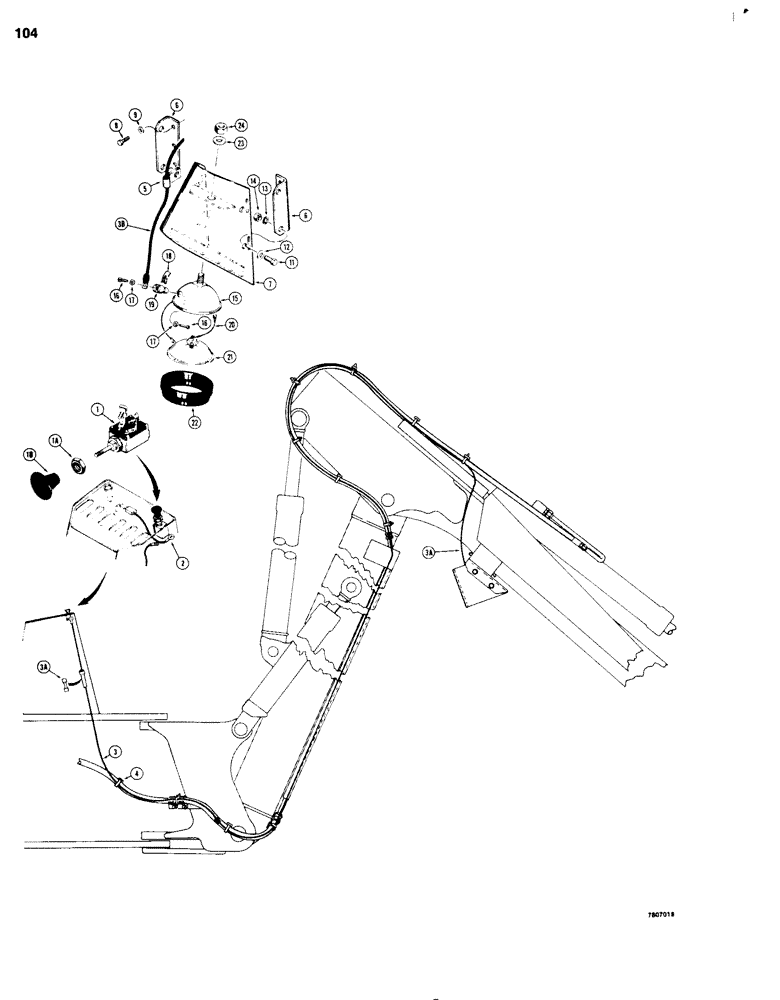

Запчасти Case 680G (104) - ELECTRICAL SYSTEM, DIPPER LIGHT FOR EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

1

T32080

SWITCH - dipper light, Includes: Ref. 1A, 1B

1шт.

1a

T36883

NUT - switch mounting

2шт.

1b

36884

KNOB - switch

1шт.

2

L78293

WIRE - warning light to switch, 15" (381 mm) long

1шт.

3

L107199

ELECTRICAL WIRE

WIRE - from switch, 28" (711 mm) long, Includes: Ref. 3A

1шт.

3a

223-26

FUSE,5 Amp, Type 3AG

- 5 amp

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - wire

1шт.

5

49857

CLAMP

- wire, at dipper light

1шт.

6

L101220

BRACKET

ANGLE - dipper light bracket

2шт.

7

D41427

SHIELD

- dipper light

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

R24323

WASHER

- special

4шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

12

95-8

WASHER,1/2"

flat 1/2"

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

L45149

HEADLIGHT

LIGHT ASSEMBLY - dipper arm, Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

16

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head, No. 8 - 32 NC x 1/4"

2шт.

17

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - external tooth lock, No. 8

2шт.

18

10927

SPRING

- light

1шт.

19

B50293

TERMINAL CONNECTOR

- light

1шт.

20

A40033

ELECTRICAL WIRE

WIRE - light

1шт.

21

L10499

LAMP

LIGHT - sealed beam, 24 volt (No. 4589)

1шт.

22

D31441

RETAINER

- light

1шт.

23

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

24

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, lock, 1/2" - 13 NC

1шт.
