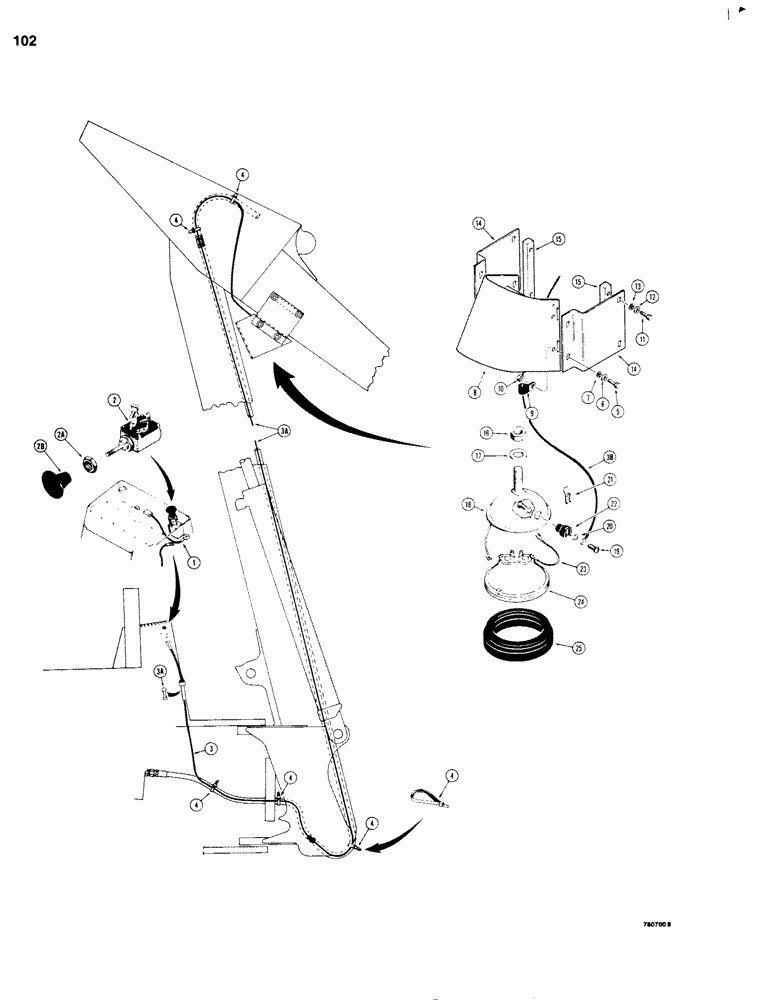

Запчасти Case 680G (102) - ELECTRICAL SYSTEM, DIPPER LIGHT FOR NON-EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

1

L78293

WIRE - warning light to dipper light switch, 15" (381 mm) long

1шт.

2

T32080

SWITCH - dipper light, Includes: Ref. 2A, 2B

1шт.

2a

A39888

NUT

- 3/8-32, switch mounting

2шт.

2b

T36883

KNOB - switch

1шт.

3

L107199

ELECTRICAL WIRE

WIRE - from switch, 28" (711 mm) long, Includes: Ref. 3A

1шт.

3a

223-26

FUSE,5 Amp, Type 3AG

- 5 amp

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire retaining

1шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

95-8

WASHER,1/2"

flat 1/2"

4шт.

8

D41427

SHIELD

- dipper light

1шт.

9

NLS

NO LONGER SERVICED

- wire

1шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

11

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

95-8

WASHER,1/2"

flat 1/2"

4шт.

14

L58510

PLATE ASSY.

PLATE - mounting, dipper lamp

2шт.

15

L50502

BLOCK

- tapped, weld on

2шт.

16

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, self lock, 1/2" - 13 NC

1шт.

17

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

L45149

HEADLIGHT

LAMP ASSEMBLY - dipper arm, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

19

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head, No. 8 - 32 NC x 1/4"

2шт.

20

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - external tooth lock, No. 8

2шт.

21

10927

SPRING

- lamp

1шт.

22

B50293

TERMINAL CONNECTOR

- lamp

1шт.

23

A40033

ELECTRICAL WIRE

WIRE - lamp

1шт.

24

L10499

LAMP

BULB - sealed beam, 24 volt, No. 4589

1шт.

25

D31441

RETAINER

- lamp

1шт.
