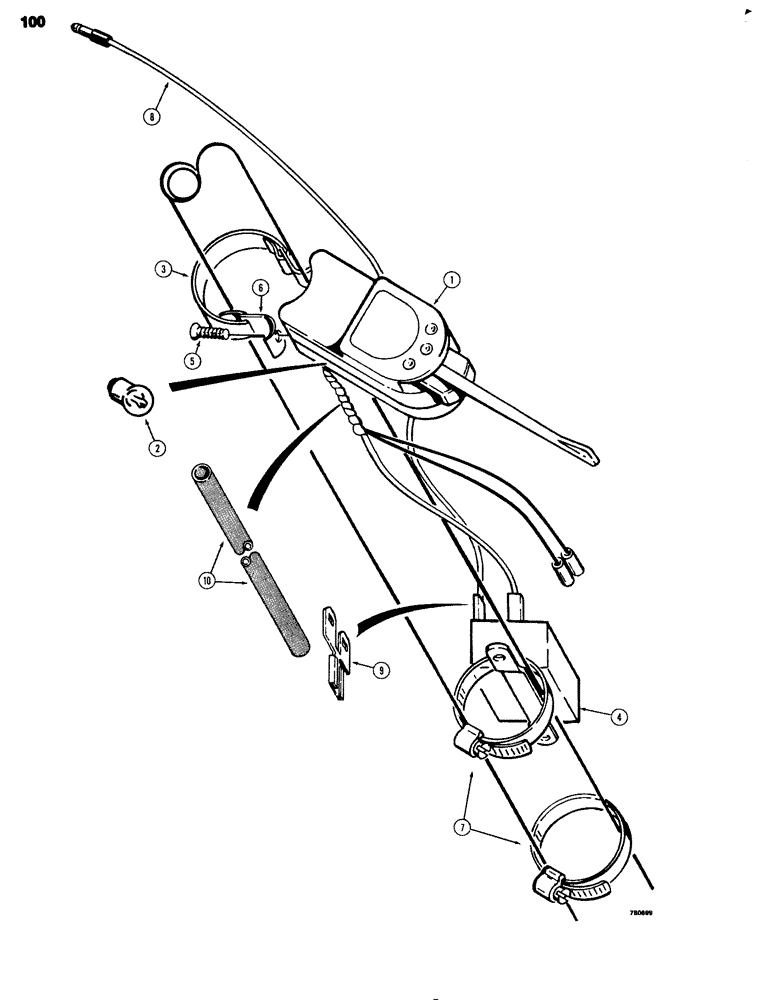

Запчасти Case 680G (100) - ELECTRICAL SYSTEM, TURN SIGNAL AND FLASHER CONTROL (04) - ELECTRICAL SYSTEMS

L106071

SIGNAL

KIT - turn and flasher

1шт.

This includes Ref. 1, 2, 3, 5 and 6, but does not include Ref. 4 flasher.

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

2

A14928

BULB

- direction indicator, 24 volt, No. 358

1шт.

3

L32658

STRAP

- mounting, signal

1шт.

4

L59781

FLASHER UNIT

FLASHER - signal

1шт.

This is not part of signal kit L106071.

1шт.

L32659

KIT

- mounting, turn signal, Includes: Ref. 5, 6

1шт.

5

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- flat head machine, No. 8 - 32 NC x 1"

2шт.

6

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- flasher mounting #28, 1.31/2.25 Type F Worm

2шт.

8

L73672

ELECTRICAL WIRE

WIRE - to circuit breaker

1шт.

9

F43508

SPADE TERMINAL

TERMINAL - spade, L73672 wire

1шт.

10

L77320

CONDUIT

1шт.
