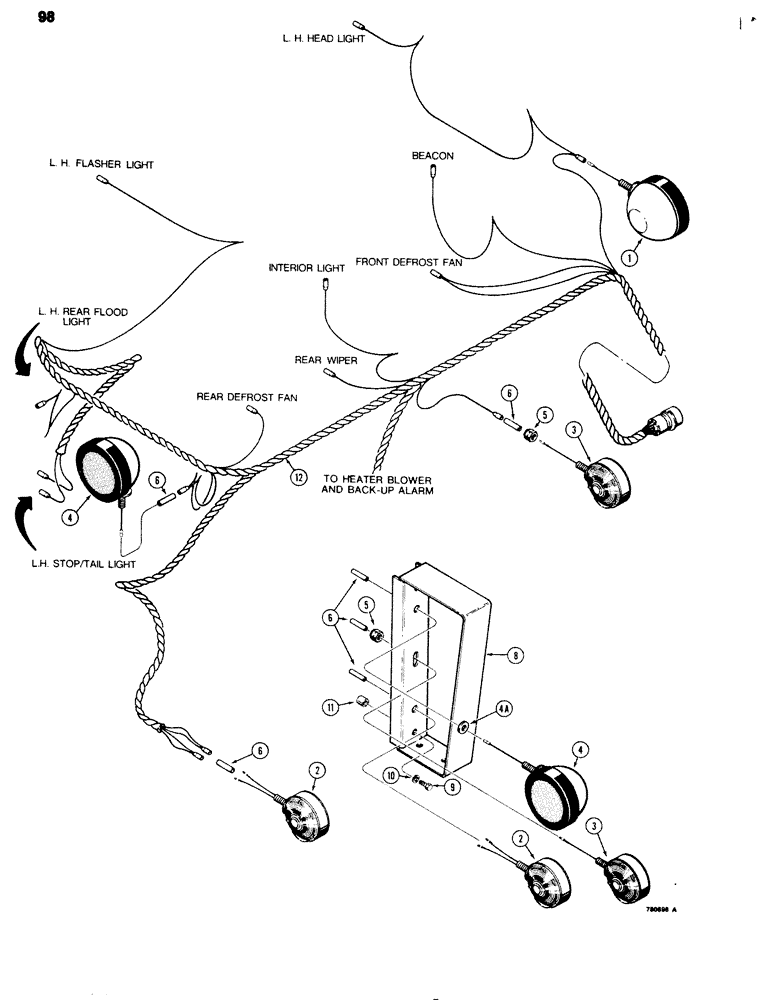

Запчасти Case 680G (098) - ELECTRICAL SYSTEM, TRACTOR LIGHTS (04) - ELECTRICAL SYSTEMS

1

L105764

LAMP

LIGHT - head, parts list Figure 106

2шт.

2

L43737

LIGHT

- tail and stop, parts list Figure 106

2шт.

A larger tail and stop light was adopted, but L43737 should be used for all repairs.

1шт.

3

L43738

INTERIOR LIGHT

LIGHT - flasher, parts list Figure 106

2шт.

4

D71193

LAMP BASE

LIGHT - rear flood, parts list Figure 106

2шт.

4a

95-8

WASHER,1/2"

flat, spacer 1/2"

2шт.

5

25-158

JAM NUT,Jam, 1/2"-20, G5

- lock, 1/2"

2шт.

6

L78495

SLEEVE,0.19" ID x 1.5" L

- shrink

4-6шт.

7

L100446

HARNESS - canopy, not shown

1шт.

8

L79919

GUARD - weldment, light

2шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 3/4", if used

1шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

L101028

SPACER - if used

4шт.

12

D83092

HARNESS

- cab

1шт.
