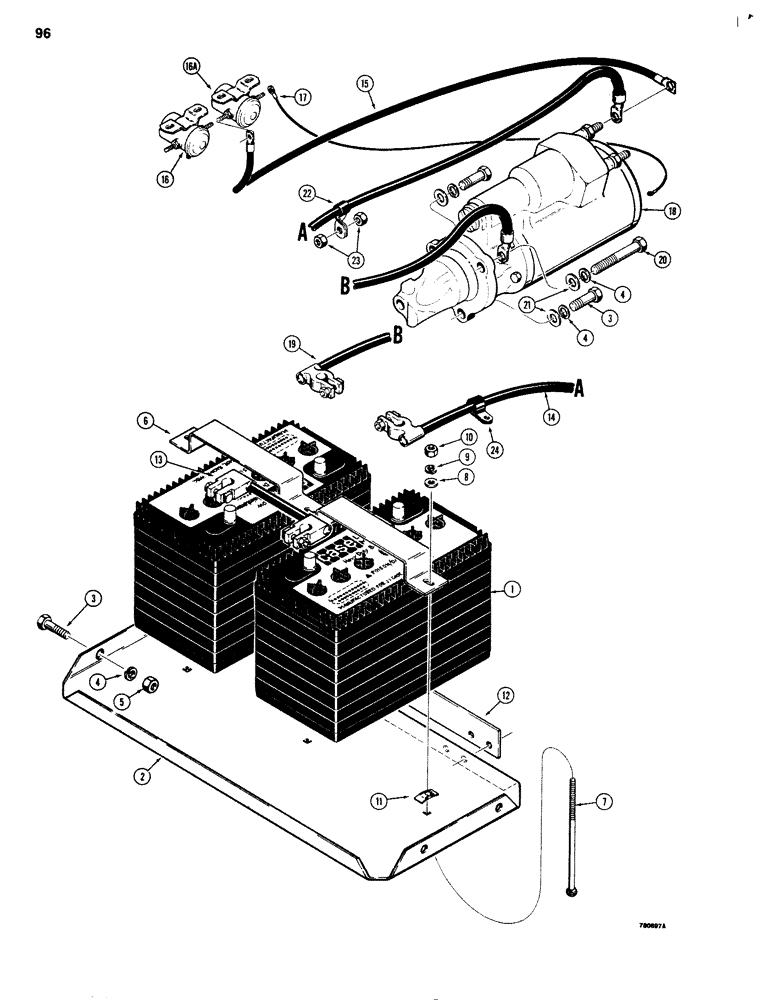

Запчасти Case 680G (096) - ELECTRICAL SYSTEM, BATTERIES AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

A145205

WET BATTERY

- 12V, low maintenance

2шт.

Refer to CE Service Bulletins 28-79 and 29-79.

1шт.

2

L77146

PLATE - battery support

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

4

92-8

LOCK WASHER,1/2"

7шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

6

L77144

PLATE

- battery hold down

1шт.

7

111-378

CARRIAGE BOLT,Short NK, 3/8"-16 x 8 1/2", G2

BOLT - 3/8" x 8-1/2", carriage

3шт.

8

95-6

WASHER,3/8"

- flat, 5/16"

3шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

25-106

NUT,3/8"-16, G5

- hex, 5/16" - 18 NC

3шт.

11

131-600

NUT,5/16", Push-on

- 3/8", special

3шт.

12

L77145

PLATE - battery retainer

1шт.

13

L57766

CABLE

- jumper, Serial Range: battery-battery

1шт.

14

L57764

CABLE

-, Serial Range: battery-starter

1шт.

15

L100671

CABLE

, Serial Range: starter-solenoid

1шт.

16

S219533

SOLENOID

- starter

2шт.

16a

D31479

SOLENOID SWITCH

SOLENOID - starter, used wth A31060 ground wire, not shown

1шт.

17

L100451

CABLE

WIRE -, Serial Range: solenoid-starter

1шт.

18

L79906

STARTER MOTOR

STARTING MOTOR - engine, parts list Figures 72 thru 78

1шт.

19

L57765

CABLE

- battery ground

1шт.

20

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex head, 1/2" - 13 NC x 3-1/2", starter mounting

1шт.

21

R24323

WASHER

- starter mounting

3шт.

22

L100108

CLAMP

1шт.

23

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, lock, 1/2"-13 NC

2шт.

24

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- battery cable, use existing hardware on steering valve

1шт.
