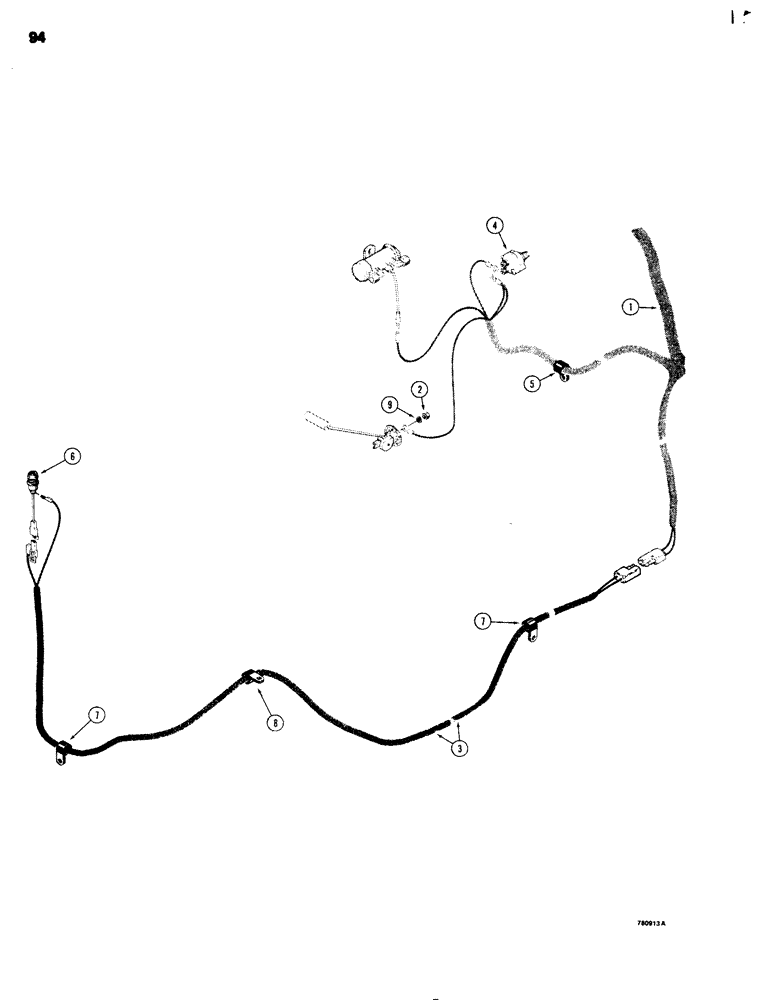

Запчасти Case 680G (094) - WARNING LIGHT & STOP SWITCH WIRING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - main wiring, see Figure 86

1шт.

2

129-37

NUT,#10-32

1шт.

3

L76794

HARNESS - control

1шт.

4

L47989

SWITCH

- stop light

1шт.

5

F14858

CLAMP,J, 7/16" Insul, 3/8" Bolt

1шт.

6

L74021

LIGHT

LAMP - warning, oil, parts list Figure 108

1шт.

7

51200330

CLAMP

1шт.

8

49853

TOOL

1шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
