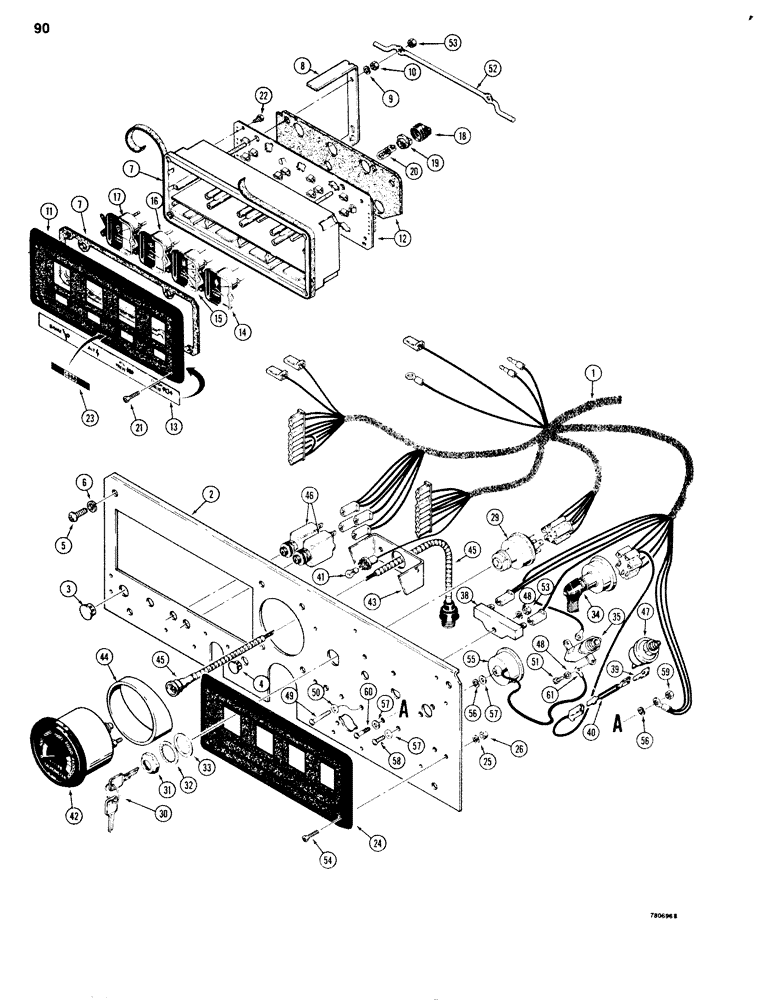

Запчасти Case 680G (090) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - main wiring, see Figure 86

1шт.

2

L104411

PANEL

- instrument, inner

1шт.

3

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16", if used

1шт.

4

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

1шт.

5

175-473

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- 1/4" - 20 NC x 5/8", plated

4шт.

6

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

L55650

CLUSTER

- instrument panel, left-hand, Includes: Ref. 7 - 23

1шт.

7

NSS

NOT SOLD SEPARAT

CASE AND GASKET - cluster mounting

1шт.

8

L35954

STRAP

- case mounting

2шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

129-37

NUT,#10-32

4шт.

11

L35948

PANEL

- instrument, left-hand outer

1шт.

12

L35950

BOARD, PRINTED CIRCU

CIRCUIT BOARD - wiring & gauges

1шт.

13

L35953

PANEL

- identification

1шт.

This is made of a tinted see-thru plastic.

1шт.

14

L35946

ELECTRICAL GAUGE

GAUGE - engine water temperature

1шт.

15

L35943

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

16

L35944

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

17

L35945

ELECTRICAL GAUGE

GAUGE - converter oil temperature

1шт.

18

L35947

BOOT

COVER - rubber light socket

7шт.

19

L35949

SOCKET/RECEPTACLE

SOCKET - instrument light

7шт.

20

W10478

LAMP

BULB - light, instrument, No. 194

7шт.

21

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

SCREW - hex socket head, No. 6 - 32 NC x 3/4"

4шт.

22

187-976

SELF-TAP SCREW,#6 x 3/8"

SCREW - hex head , self-tapping, No. 6 - 3/8"

13шт.

23

L57685

DECAL

- "CASE", included in decal kits, see Figures 390 and 392

1шт.

24

L55774

PANEL

- instrument, right-hand outer

1шт.

29

A77312

SWITCH

- electrical

1шт.

30

A77313

SET OF 2 KEYS

KEY - set of 2

1шт.

31

A77314

NUT

- switch mounting

1шт.

32

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

33

L31557

WASHER

- switch

1шт.

34

L55654

SWITCH

- lights

1шт.

35

L48480

SWITCH

- air pressure

1шт.

38

L76800

RESISTOR

- 15 ohm

1шт.

39

L59682

TERMINAL CONNECTOR

TERMINAL - panel, straight

1шт.

40

L58497

RESISTOR

- 40 ohm, if used

1шт.

41

A14553

BULB

- tachometer light, No. 57

1шт.

42

L58174

GAUGE

- tachometer, for security cover see Figure 388

1шт.

43

L79240

BRACKET - tachometer gauge

1шт.

44

L79239

SPACER - tachometer

1шт.

45

L78640

CABLE PULLING GRIP

SHAFT - tachometer drive, flexible

1шт.

46

L59970

BREAKER

- circuit, 5 amp

2шт.

47

L57937

SWITCH

- air pressure

1шт.

48

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

49

182-149

SCREW,Slotted Pan Hd, #10-32 x 1"

- No. 10 - 32 NF x 1-1/4"

1шт.

50

195-513

WASHER,#10

- flat, No. 10, plated

1шт.

51

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- No. 8 - 32 NC x 5/16"

2шт.

52

L100085

ROD

- retainer

1шт.

53

129-37

NUT,#10-32

3шт.

54

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

SCREW - hex socket head, No. 6 - 32 NC x 3/4"

4шт.

55

L107890

BUZZER

- air pressure warning

1шт.

56

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - lock, No. 8

2шт.

57

195-10

WASHER,#8

3шт.

58

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- No. 8 - 32 NC x 3/8", used wth L104033 buzzer

1шт.

59

129-6

NUT,#8-32

1шт.

60

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- No. 8 - 32 NC x 1/2", use with L104033 buzzer

1шт.

61

223-48

FITTING

TERMINAL - eyelet, No. 8

1шт.
