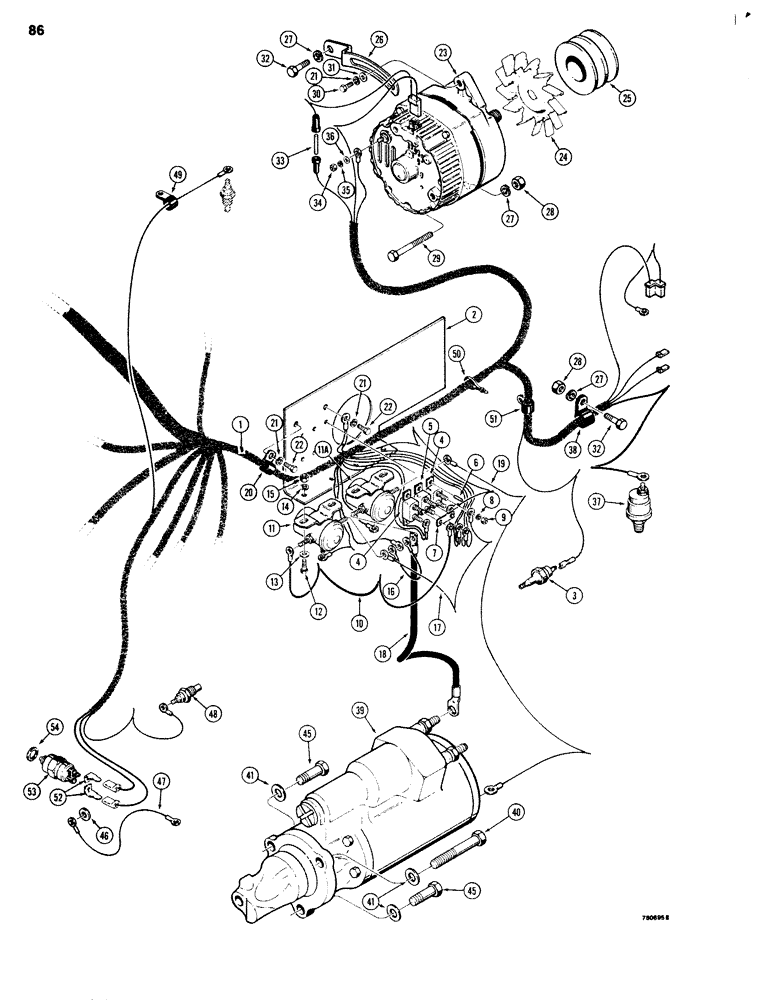

Запчасти Case 680G (086) - ELECTRICAL SYSTEM, FRONT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

L102528

HARNESS

- main wiring

1шт.

2

L101019

BRACKET

- solenoid mounting

1шт.

3

A66737

SWITCH, PRESSURE

SWITCH - oil pressure sending unit

1шт.

4

D37203

BREAKER

- circuit, 15 amp

2шт.

5

L11342

BREAKER

- circuit, 25 amp

1шт.

6

151-539

RIVET,Pop, 3/16" x .450"

- pop, 3/16 x 7/16

6шт.

7

L74683

BAR

STRAP - jumper, Serial Range: breaker-breaker

1шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

9

129-37

NUT,#10-32

6шт.

10

L70058

ELECTRICAL WIRE

WIRE - relay to circuit breaker

1шт.

11

S219533

SOLENOID

- relay

1шт.

11a

D31479

SOLENOID SWITCH

SOLENOID - starter, used with A31060 ground wire, see Ref. 11B

1шт.

11b

A31060

ELECTRICAL WIRE

WIRE - ground, used with Ref. 11A only, not shown

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Solenoid mounting Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

13

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

28-104

NUT - hex, 1/4" - 20 NC

4шт.

16

L77004

ELECTRICAL WIRE

WIRE -, Serial Range: solenoid-solenoid

1шт.

17

L77003

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker

1шт.

18

L100671

CABLE

-, Serial Range: starter-solenoid

1шт.

19

L100451

CABLE

WIRE -, Serial Range: starter-solenoid

1шт.

20

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- harness to bracket

1шт.

21

92-5

LOCK WASHER,5/16"

3шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

23

REF

INSTRUCTION

ALTERNATOR - 24V, parts list Figure 82 and 84

1шт.

24

A43384

FAN

- alternator

1шт.

25

L59716

PULLEY

- alternator

1шт.

26

L41455

STRAP

- alternator adjusting, used before tractor sn. 9128277

1шт.

26

A34705

ADJUSTER

STRAP - alternator belt adjusting, used on tractor sn. 9128277 and after, not shown

1шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

29

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

30

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

31

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

33

L73576

RESISTOR

- 40 Ohm, alternator

1шт.

34

225-14112

NUT,#12-24

- hex, No. 12 - 24 NC

1шт.

35

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

1шт.

36

195-16

WASHER,#12

- flat, No. 12

1шт.

37

L57176

SENDER UNIT

SENDER - air pressure

1шт.

38

49845

CLAMP

- 3/8"

1шт.

39

REF

INSTRUCTION

STARTING MOTOR - engine parts list Figures 72 thru 78

1шт.

40

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Starter mounting Hex, 1/2"-13 x 3 1/4", G5

1шт.

41

R24323

WASHER

- starter mounting

3шт.

45

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Starter mounting Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

46

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

47

L40793

ELECTRICAL WIRE

WIRE - ground, Serial Range: engine-frame

1шт.

48

L56217

UNIT

SENDER - converter oil temperature

1шт.

49

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- 3/8"

1шт.

50

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - wire

1шт.

51

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 3/4"

1шт.

52

L59682

TERMINAL CONNECTOR

TERMINAL - spade

2шт.

53

L77836

SWITCH

- neutral start

1шт.

54

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- switch

1шт.
