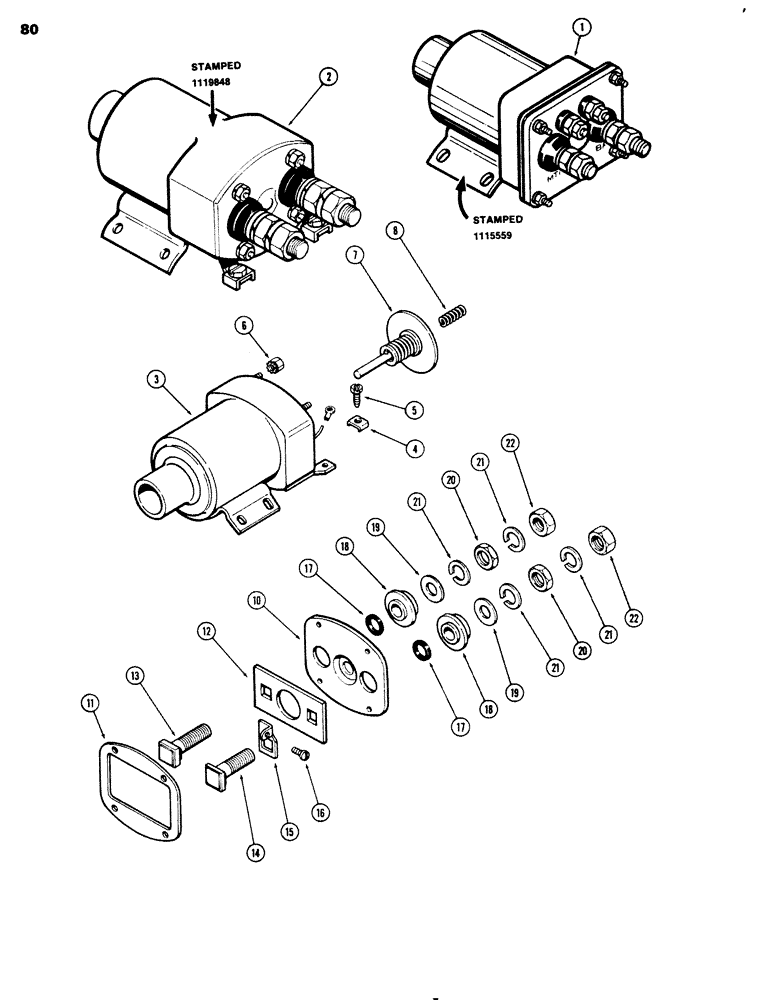

Запчасти Case 680G (080) - A42376 SOLENOID (04) - ELECTRICAL SYSTEMS

1

A47899

SOLENOID SWITCH

SOLENOID ASSEMBLY - starter - stamped 1115559 (Serviced as complete assembly only) Includes: Ref. 3 - 22

1шт.

2

A42376

SWITCH

SOLENOID ASSEMBLY - starter, stamped 1119848, Includes: Ref. 3 - 22

1шт.

3

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY - with coil

1шт.

4

A42407

CLAMP

- terminal

1шт.

5

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clamp

1шт.

6

D32500

NUT

ASSEMBLY - with external shakeproof washer

4шт.

7

D32498

CONTACT

DISC ASSEMBLY - contact (Order A47693)

1шт.

8

A42411

VALVE SPRING

SPRING - return contact disc

1шт.

A42412

PLATE

ASSEMBLY, Includes: Ref. 10 - 22

1шт.

10

A42410

PLATE

- terminals and case cover

1шт.

11

A42260

GASKET

- terminal, Serial Range: plate-case

1шт.

12

D32507

RUBBER INSULATOR

INSULATOR - terminal plate

1шт.

13

A42413

STUD

- battery terminal, 1-21/32" thread length (42.07 mm)

1шт.

14

D32506

STUD

- starter terminal, 1-13/16" thread length (46.04 mm)

1шт.

15

D29910

SUPPORT

TERMINAL - coil lead

1шт.

16

175-56

SCREW - coil lead, #6-32 x 3/16" truss head Slotted Truss Hd, #6-32 x 3/16"

1шт.

17

D32510

BUSHING

- terminal plate insulators

2шт.

18

A43701

BUSHING

- terminal studs insulators

2шт.

19

D30004

WASHER

- insulating, terminal studs, 1/2 x 1-3/16 x 3/32" (12.7 x 30.16 x 2.38 mm)

2шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal studs Jam, 1/2"-13, G5

2шт.

21

192-113

LOCK WASHER,1/2"

WASHER - terminal studs, lock 1/2"

4шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal studs 1/2"-13, G5

2шт.
