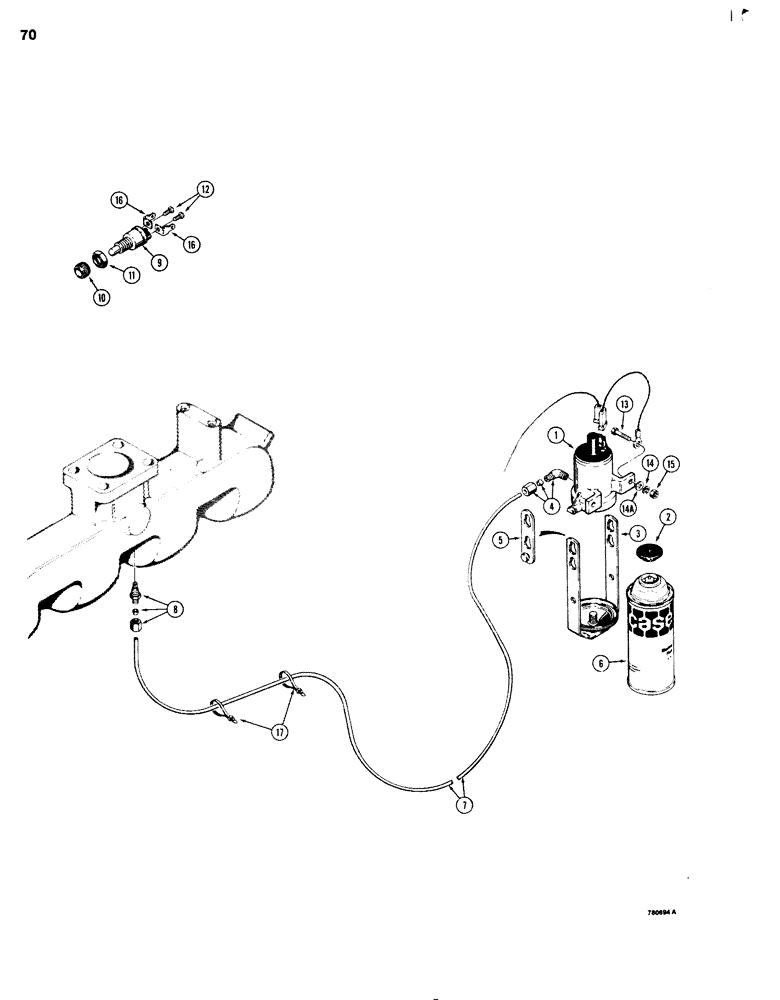

Запчасти Case 680G (070) - COLD START SYSTEM (03) - FUEL SYSTEM

L73025

STARTING MOTOR

SOLENOID - cold start, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

SOLENOID - cold start

1шт.

2

R30786

GASKET

- solenoid

1шт.

3

D77648

BAIL

- solenoid

1шт.

4

A44809

FITTING

ELBOW - solenoid

1шт.

5

R30812

LINK

EXTENSION - bail

2шт.

6

B17072

START SPRAY FLUID

FLUID - starting, ether

1шт.

7

D35090

TUBE

- cold start

1шт.

8

L73024

NOZZLE CAP

NOZZLE - atomizer

1шт.

L72776

SWITCH

- push button, cold start, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - push button switch

1шт.

10

D73741

NUT

- hex, face

1шт.

11

H275784

JAM NUT

- jam

1шт.

This is a thin steel jam nut with 5/8"-32 thread.

1шт.

12

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- terminal

2шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

14a

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

16

L59682

TERMINAL CONNECTOR

TERMINAL - switch

2шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - wire harness

2шт.
