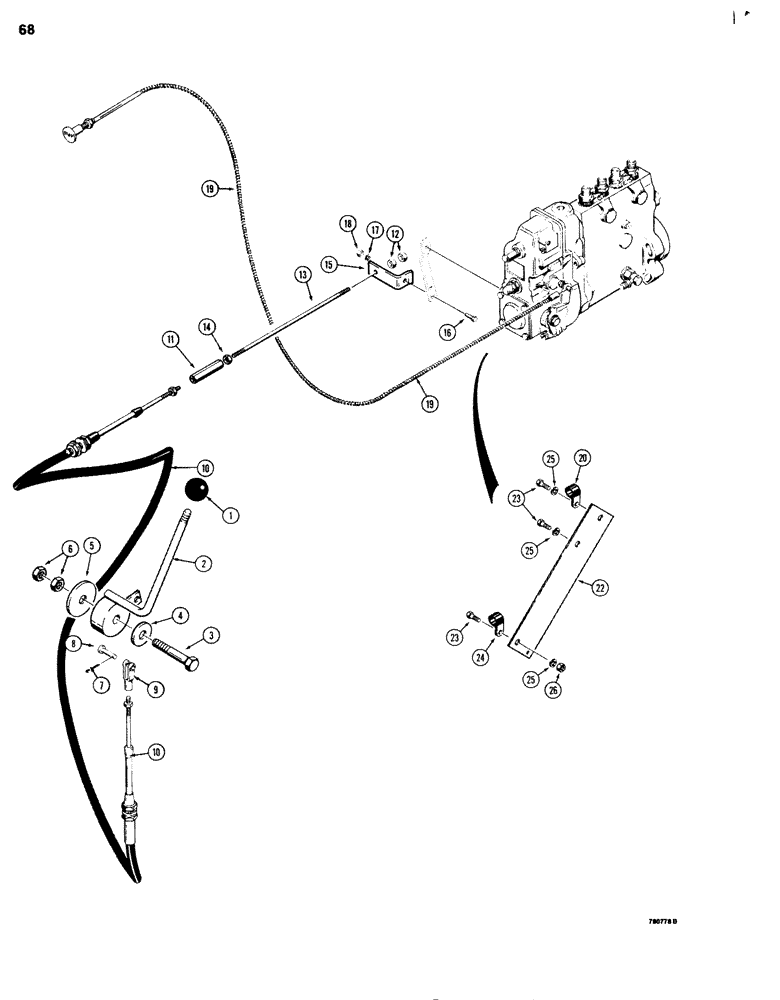

Запчасти Case 680G (068) - HAND THROTTLE AND FUEL SHUTOFF (03) - FUEL SYSTEM

1

L54563

KNOB

- hand throttle lever

1шт.

2

L74068

LEVER

- backhoe hand throttle

1шт.

3

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

1шт.

4

R14771

WASHER

- spring, special

1шт.

5

R15071

DISC

- friction

1шт.

6

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

2шт.

7

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

8

141-2

CLEVIS PIN,1/4" x .770"

- 1/4"

1шт.

9

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable, 1/4"

1шт.

10

L55603

CABLE PULLING GRIP

CABLE ASSEMBLY - backhoe throttle

1шт.

11

L58548

TURNBUCKLE

- throttle adjustment

1шт.

12

25-214

BOLT (MACHINE)

NUT - hex, 1/4" - 28 NF, right-hand thread

2шт.

13

L58523

ROD

- control, backhoe throttle

1шт.

14

129-321

NUT,1/4"-28, G5, LH

- hex, 1/4", left-hand thread

1шт.

15

L58210

BRACKET

SLIDE - throttle, backhoe

1шт.

16

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex, lock, 1/4" - 20 NC

1шт.

19

L57925

FRONT AXLE

CABLE - control, fuel shutoff

1шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- cable to bracket

1шт.

22

L106479

BRACKET

- support, fuel shutoff

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

24

80049853

YOKE

-, Serial Range: cable-bracket

1шт.

25

92-6

LOCK WASHER,3/8"

3шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
