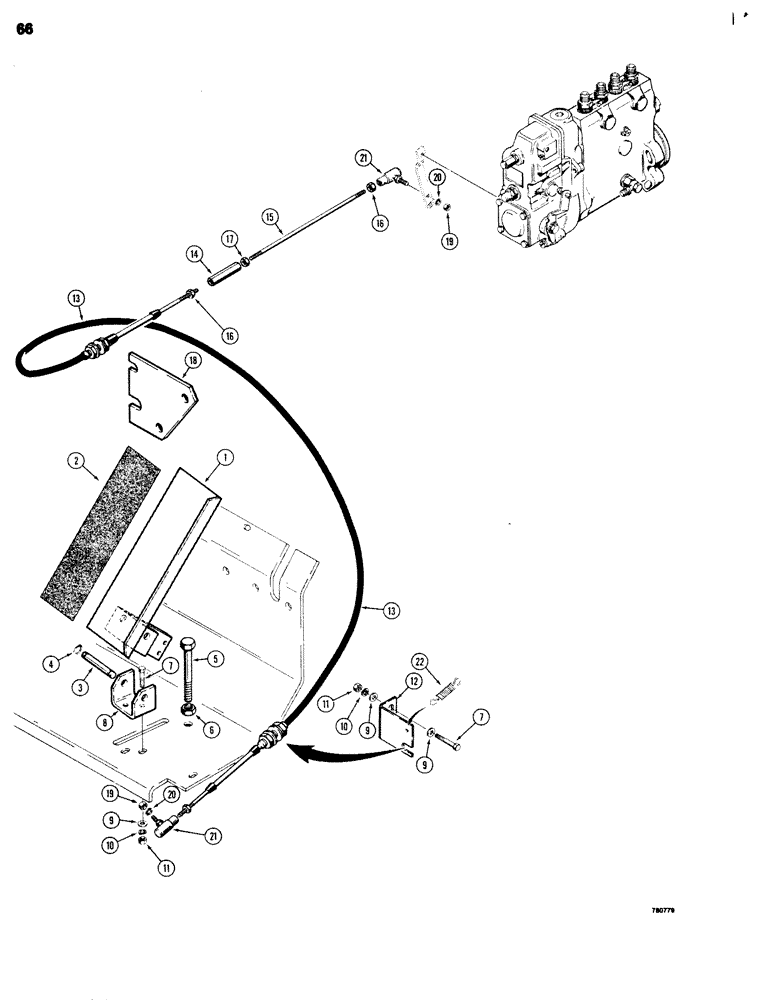

Запчасти Case 680G (066) - FOOT THROTTLE CONTROL (03) - FUEL SYSTEM

1

L104058

PEDAL

- accelerator, foot

1шт.

2

L48674

PAD

- accelerator pedal

1шт.

3

L48003

PIN

- pedal pivot

1шт.

4

A27795

RING

- pin retaining, 5-1/2"

2шт.

5

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

Accelerator stop Hex, 1/2"-13 x 6", G5

1шт.

6

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, lock, 1/2"-13 NC

1шт.

7

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

8

L48002

BRACKET

- accelerator pedal pivot

1шт.

9

95-4

WASHER,1/4"

- flat, 1/4"

6шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

11

25-104

NUT,1/4"-20, G5

4шт.

12

L100164

BRACKET - cable mounting, accelerator, rear

1шт.

13

L72961

CABLE PULLING GRIP

CABLE ASSEMBLY - accelerator

1шт.

14

L14227

CONNECTOR, ELEC

TURNBUCKLE - throttle adjustment

1шт.

15

L58515

ROD

- throttle adjustment

1шт.

16

129-37

NUT,#10-32

RH thread #10-32

2шт.

17

129-315

NUT,#10-32, LH

1шт.

18

L78680

BRACKET

- cable mounting, accelerator, front

1шт.

19

129-37

NUT,#10-32

2шт.

20

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21

L12437

BALL JOINT,#10 - 32 x 7/8"

-cable end

2шт.

22

A26841

VALVE SPRING

SPRING - return, accelerator

1шт.
