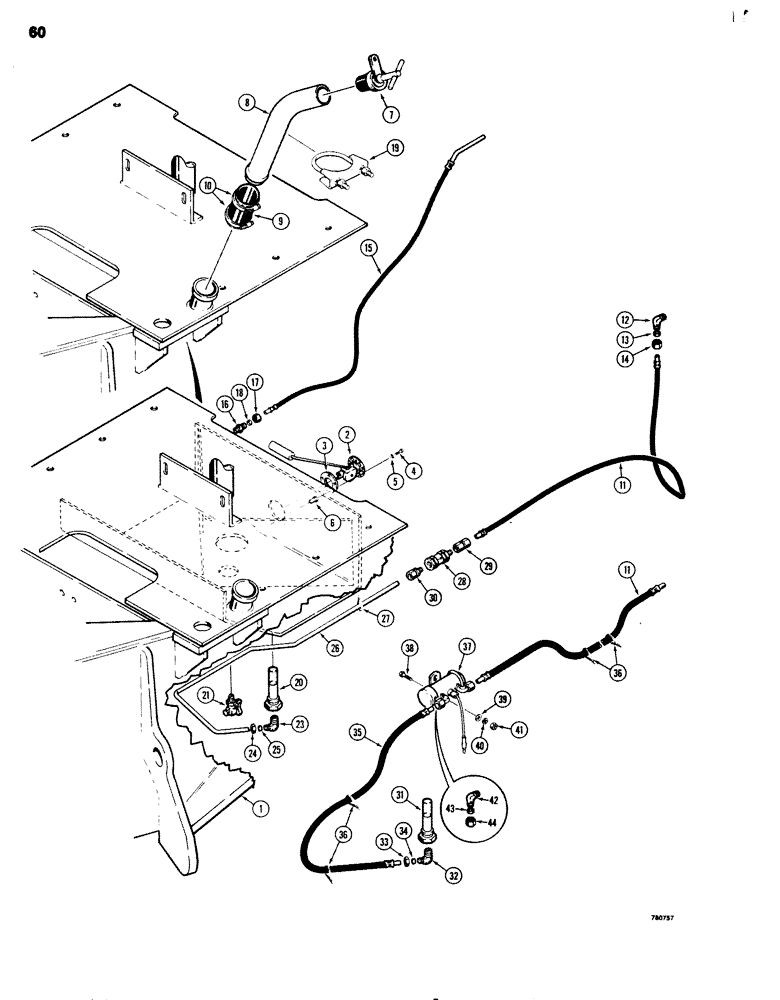

Запчасти Case 680G (060) - FUEL TANKS AND LINES (03) - FUEL SYSTEM

1

REF

INSTRUCTION

CHASSIS ASSEMBLY - see Figure 362

1шт.

2

L101407

SENDER UNIT

SENDING UNIT - fuel level gauge

1шт.

3

A11822

GASKET

- sending, Serial Range: unit-tank

1шт.

4

163-23

SCREW,Hex, #10 - 32 x 3/4"

- machine, No. 10 - 32 NF x 5/8"

5шт.

5

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

6

L13194

NUT

RIVNUT - retainer, No. 10 - 32 NF

5шт.

7

L100852

CAP

- fuel filler pipe

1шт.

8

L71484

PIPE

- fuel filler

1шт.

9

L100366

HOSE - fuel filler, 2-1/2" (63.5 mm) I.D. x 4" (101.6 mm) long

1шт.

10

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose

2шт.

11

L40164

HOSE ASSY.

HOSE - fuel line to injector pump

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING ASSEMBLY - hose, 90 degree, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

13

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

14

222-114

NUT,5/8"-24

NUT - fitting

1шт.

15

L57137

HOSE ASSY.

HOSE - return, injector, Serial Range: pump-tank

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ASSEMBLY - flex type, straight, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

17

87017024

TUBE NUT,1/2"-24

NUT - fitting

1шт.

18

222-102

SLEEVE,1/4" Tube

1шт.

19

L73711

CLAMP

- filler pipe

1шт.

20

L58022

STRAINER ASSY.

STRAINER - fuel, models without electric fuel pump

1шт.

21

A27862

COCK, DRAIN

VALVE - fuel drain, if used

1шт.

22

221-12

PLUG,Sq Hd, 1/4"-18

- fuel drain, if used, not shown

1шт.

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

FITTING ASSEMBLY - hose, 90 degree, at tank, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY -fitting

1шт.

24

222-114

NUT,5/8"-24

NUT - fitting

1шт.

25

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

26

L71665

FUEL TUBE,0.375" OD

TUBE - fuel tank to pump

1шт.

27

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - tube support

1шт.

28

L17627

VALVE

- check

1шт.

29

222-14

FITTING,5/8"-24 Inv Fl x 1/4" NPT Fem

- valve

1шт.

30

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

FITTING - valve

1шт.

31

L58022

STRAINER ASSY.

STRAINER - fuel, models with electric fuel pump

1шт.

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

FITTING ASSEMBLY - hose, 90 degree, at tank, Includes: Ref. 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

33

222-114

NUT,5/8"-24

NUT - fitting

1шт.

34

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

35

L40164

HOSE ASSY.

HOSE -, Serial Range: tank-pump

1шт.

36

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - hose

4шт.

37

L52634

PUMP

- fuel, electric, parts list Figure 64

1шт.

38

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

39

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

25-104

NUT,1/4"-20, G5

2шт.

222-46

ELBOW,90 Degree, 5/8"-24 Fem x 1/8"-27 NPTF

FITTING ASSEMBLY - hose, 90 degree, Includes: Ref. 42 - 44

2шт.

42

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

43

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

44

222-114

NUT,5/8"-24

NUT - fitting

1шт.
