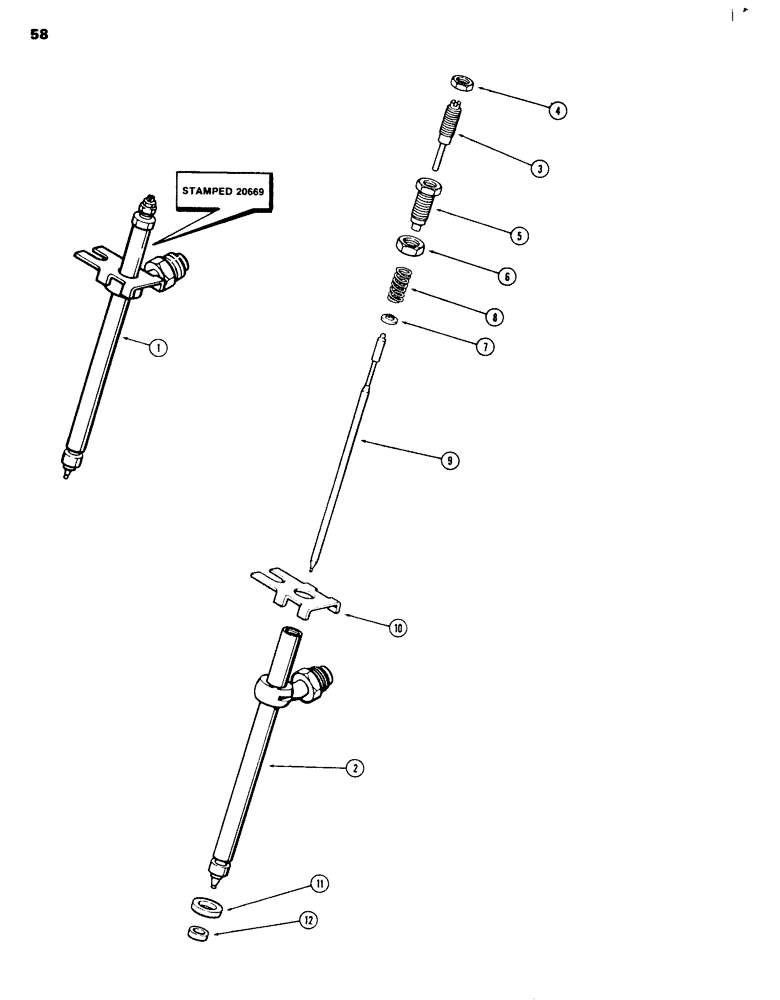

Запчасти Case 680G (058) - FUEL INJECTOR NOZZLE (03) - FUEL SYSTEM

1

A140830

INJECTOR ASSY.

NOZZLE ASSEMBLY - fuel injector (Stamped 20669 on body) (Blue and yellow color code) Includes: Ref. 2 - 12

4шт.

Whenever a nozzle is removed from the head, the A41402 seal and A41403 washer must be replaced before the nozzle is installed back into the head.

1шт.

A140830R

REMAN-INJECT NOZZLE

680G

4шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A44369

SEAT

- spring

1шт.

8

A43733

SPRING

- pressure adjusting (Red color code) 9/16" free length (14.29 mm)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A41768

PLATE

- nozzle locating

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle, 3/8 x 9/16 x 1/16" (9.53 x 14.29 x 1.59 mm)

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, 5/16 x 3/8 x 1/8" (7.94 x 9.53 x 3.18 mm)

1шт.
