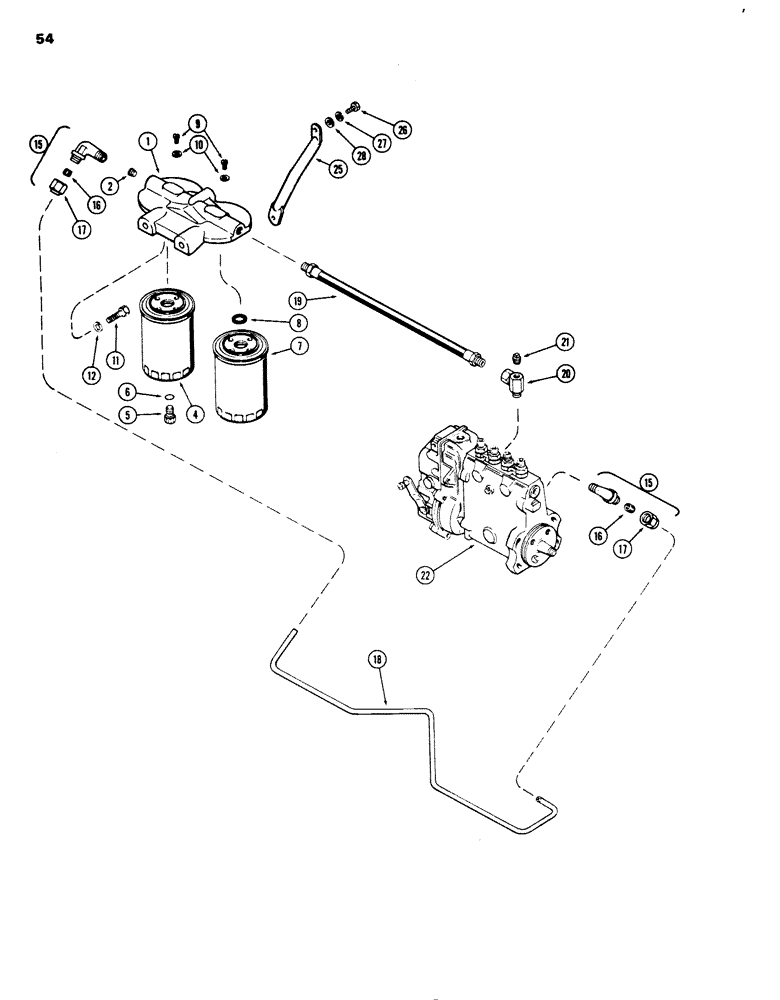

Запчасти Case 680G (054) - FUEL FILTER SYSTEM, 336BD DIESEL ENGINE (03) - FUEL SYSTEM

62347

FILTER ASSEMBLY - fuel, Includes: Ref. 1 - 10

1шт.

1

A155489

HEAD

ASSEMBLY - fuel filter (Replaces A62339) Includes: Ref. 2

1шт.

2

221-1849

PLUG

- 1/8" PT, socket hex head

1шт.

NLS

NO LONGER SERVICED

ELEMENT KIT - fuel filters, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - first stage, Includes: Ref. 5, 6

1шт.

5

G49080

PLUG

- filter drain, 3/8" PT, 12 point head

1шт.

6

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Drain plug

1шт.

7

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - second stage, Includes: Ref. 8

1шт.

8

A42315

GASKET

-, Serial Range: filter-head

1шт.

9

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, #10-32 x 5/16" fillister head

2шт.

10

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw, 3/16 x 3/8 x 1/16" aluminum

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Head to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - fuel line, Includes: Ref. 16, 17

2шт.

16

222-103

SLEEVE,5/16" Tube

(7.94 mm) 5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube (7.94 mm)

1шт.

18

A62341

TUBE

- pump to first stage filter

1шт.

19

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- second stage, Serial Range: filter-pump

1шт.

20

A20539

FITTING

UNION - (in pump)

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, square head

1шт.

22

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 56)

1шт.

25

A155421

SUPPORT

BRACKET - fuel filter head support

1шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

2шт.
