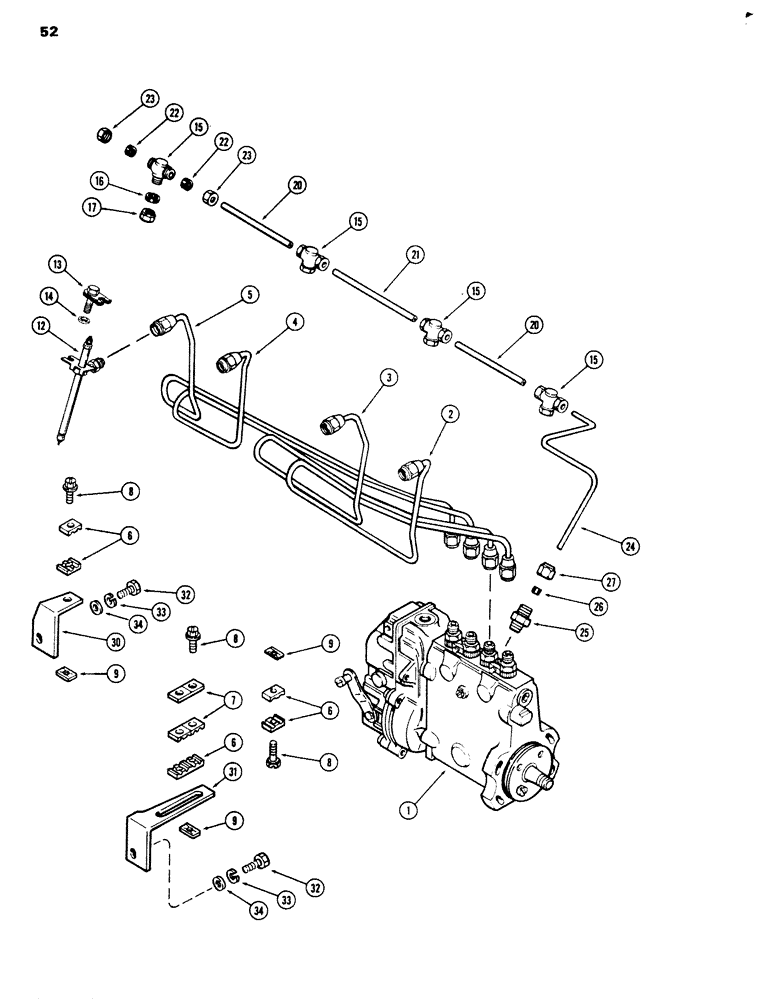

Запчасти Case 680G (052) - FUEL INJECTION SYSTEM, 336BD DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 56)

1шт.

2

A58702

TUBE

ASSEMBLY - fuel injection, No. 1 cylinder

1шт.

3

A58703

TUBE

ASSEMBLY - fuel injection, No. 2 cylinder

1шт.

4

A58704

TUBE

ASSEMBLY - fuel injection, No. 3 cylinder

1шт.

5

A58705

TUBE

ASSEMBLY - fuel injection, No. 4 cylinder

1шт.

6

A58709

BRACKET

CLAMP - injection tubes

8шт.

7

A58710

PLATE

- clamp support

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- clamps, #10 x 1" NC slotted hex head

4шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - clamp screws, #10 Tinnerman

4шт.

12

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injector (See Figure 58)

4шт.

13

A58695

CLAMP

ASSEMBLY - nozzle hold down

4шт.

14

A58696

SPACER

- nozzle clamp

4шт.

15

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - junction, nozzles and leak-off lines

4шт.

16

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- injection, Serial Range: nozzle-tee

4шт.

17

A58961

NUT

- injection, Serial Range: nozzle-tee

4шт.

20

A58965

TUBE

-fuel leak-off, 4-5/8" long (117.28 mm)

2шт.

21

A58964

TUBE

- fuel leak-off, 5-5/8" long (142.68 mm)

1шт.

22

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

8шт.

23

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6.35 mm)

8шт.

24

A58963

TUBE

- fuel leak-off, #1 cylinder to check valve

1шт.

25

A28098

VALVE

ASSEMBLY - check (one way valve) Includes: Ref. 26, 27

1шт.

26

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6.35 mm)

1шт.

30

A156898

BRACKET

- injection tubes, rear

1шт.

31

A155451

BRACKET

- injection tubes, front

1шт.

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.52 x 20.64 x 1.59 mm)

2шт.
