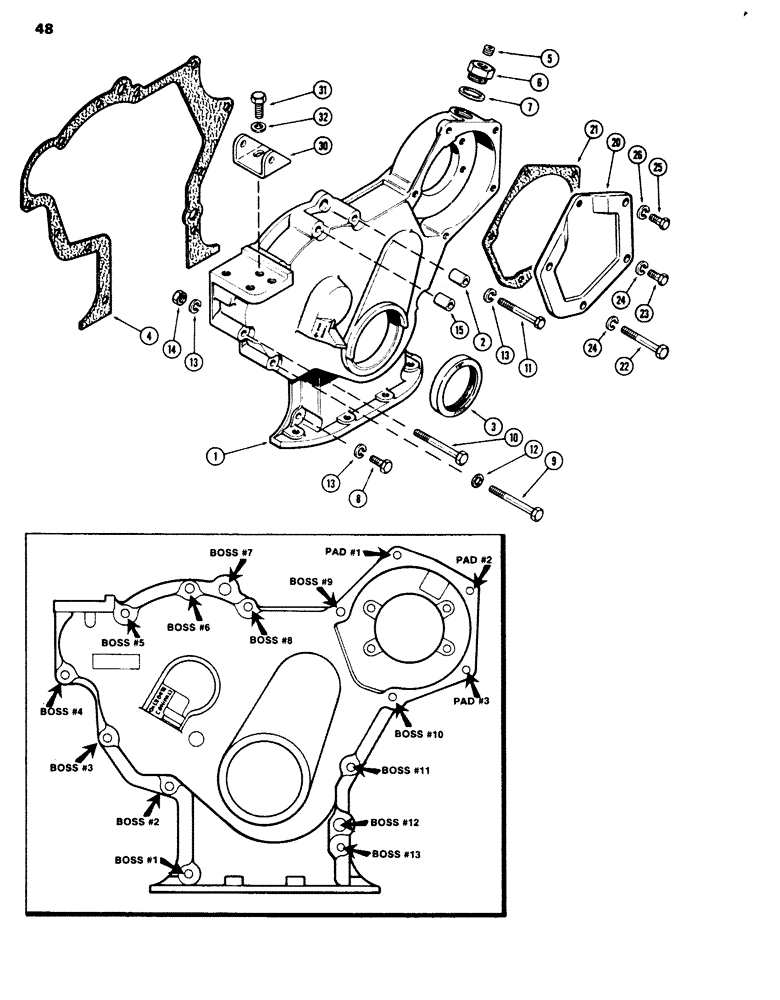

Запчасти Case 680G (048) - TIMING GEAR COVER, 336BD DIESEL ENGINE (03) - FUEL SYSTEM

1

A58609

COVER

ASSEMBLY - timing gears, Includes: Ref. 2

1шт.

2

A58611

PIN

DOWEL - cover locating (Boss #7 and #12)

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front, 2-5/8 x 3-5/8 x 1/2" (66.68 x 92.07 x 12.7 mm)

1шт.

4

A58612

GASKET

-, Serial Range: cover-block

1шт.

5

A18550

PLUG

- timing window

1шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" PT, hex socket head

1шт.

7

A58613

SEALING WASHER

GASKET - plug, 1 x 1-1/4 x 1/16" nylon (25.4 x 31.75 x 1.59 mm)

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover (Boss #1, #2, #11 and #13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover, 3/8 x 2-1/2 NC hex (Boss #3 and #8)

2шт.

10

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover, 3/8 x 3-1/2" NC hex (Boss #6)

1шт.

11

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- cover, 3/8 x 3-3/4" NC hex (Boss #4 and #5)

2шт.

12

195-25

WASHER,3/8"

- cover bolts, 3/8 x 13/16 x 1/16" (Boss #4 and #5)

2шт.

13

92-6

LOCK WASHER,3/8"

9шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex (box #4 and #5)

2шт.

15

A19774

BUSHING

SPACER - alternator pry point (Box #6)

1шт.

20

A61053

COVER

- fuel pump gear

1шт.

21

A58615

GASKET

- cover

1шт.

22

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover, 3/8 x 3-1/2" NC hex (Boss #9 and #10)

2шт.

23

A151921

BOLT

- cover, 3/8 x 1-1/2" NC hex (Pad #2 and #3) (head drilled for anti-tamper wire)

2шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover (Pad #1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.

30

A160391

BRACKET

- alternator mounting (Replaces A38492)

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.
