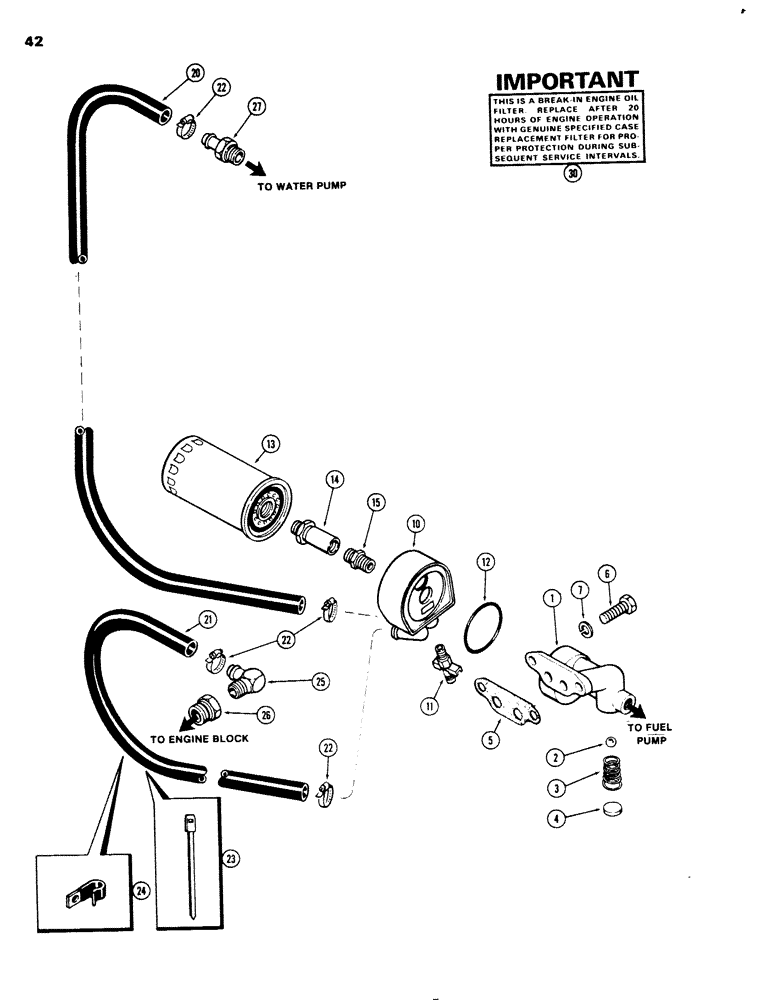

Запчасти Case 680G (042) - OIL FILTER AND COOLER, 336BD DIESEL ENGINE (02) - ENGINE

1

A155956

BASE

ASSEMBLY - oil filter and cooler (Replaces A58752) Includes: Ref. 2 - 4

1шт.

2

211-15

BALL,5/8" Dia

- relief valve, 5/8" diameter (15.88 mm)

1шт.

3

A155953

SPRING

- relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve, 1" cup type (25.4 mm)

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- base to block, 1/2 x 1-3/4" NC hex

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

10

A66295

COOLER

- oil

1шт.

11

217-107

VALVE

DRAINLOCK - cooler (Discard 1/8" pipe plug in cooler)

1шт.

12

A153806

SEALING RING

- oil, cooler to base, 2-5/8 x 3 x 3/16" square (66.68 x 76.2 x 4.76 mm)

1шт.

13

A44081

ENGINE OIL FILTER

FILTER - oil

1шт.

14

A66992

ADAPTER

- (A44081 filter to A58757 adapter)

1шт.

15

A58757

ADAPTER

- (A66992 adapter to A66295 cooler)

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 43" long (1193.8 mm) (Order A42610)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - water oulet, 25" long (635 mm) (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" ID x 1 OD x 50 feet (12.7 ID x 15.88 OD x 15.24m) (Cut to length required)

1шт.

22

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose, 1/2" to 5/8" (12.7 to 15.88 mm)

1шт.

23

A160890

STRAP

- hose tie (Replaces L18331)

1шт.

24

A59718

CLAMP

- hose

1шт.

25

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 90 degree

1шт.

26

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

- 3/4" to 1/2" (in block)

1шт.

27

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (to water pump)

1шт.

30

321-3863

DECAL

- oil change

1шт.
