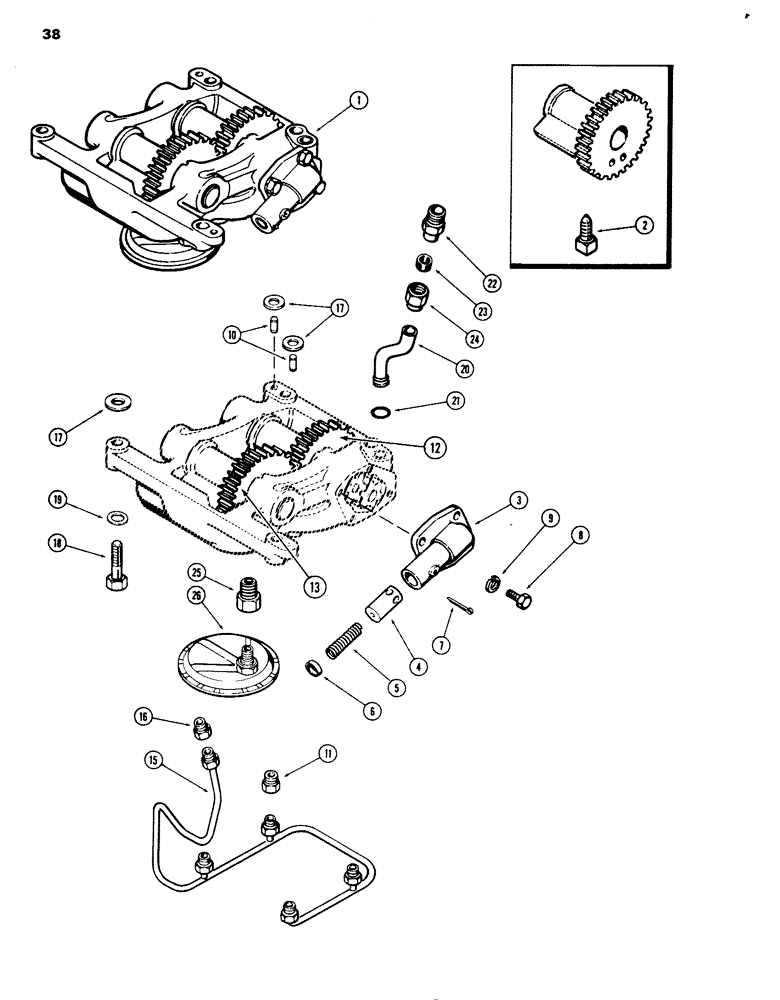

Запчасти Case 680G (038) - BALANCER AND OIL PUMP, 336BD DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A66168
PUMP, ENGINE OIL
BALANCER ASSEMBLY - engine, Includes: Ref. 2 - 13
1шт.
2
181-675
SET SCREW,Sq Hd, 1/2"-13 x 1"
SCREW - set, 1/2 x 1-1/4" NC square head dog point
4шт.
3
A153795
COVER
- oil pump (Replaces A61129)
1шт.
4
A65083
VALVE
- relief, oil pump
1шт.
5
A151960
SPRING
- relief valve, 2" free length (50.8 mm)
1шт.
7
132-32
COTTER PIN,3/32" x 1 1/2"
Pin, Split (Cotter), 3/32" x 1 1/2"
1шт.
8
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
Oil pump cover Hex, 5/16"-18 x 7/8", G5, Full Thd
3шт.
8
13-522
BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5
- oil pump cover, 5/16 x 1-3/8" NC hex
1шт.
9
92-5
LOCK WASHER,5/16"
4шт.
10
A8134
PIN
- dowel, balancer locating
2шт.
11
222-1012
HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT
CONNECTOR - manifold
4шт.
12
A22555
GEAR
ASSEMBLY - balancer
1шт.
13
A22564
GEAR
ASSEMBLY - balancer
1шт.
15
A62002
MANIFOLD
- balancer oil supply
1шт.
16
222-1012
HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT
CONNECTOR - manifold inlet
1шт.
17
G49401
SHIM,.005" Thk
Mounting (0.13 mm) .005" Thk
1шт.
17
G49402
SHIM,.010" Thk
Mounting (0.26 mm) .010" Thk
1шт.
18
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- balancer mounting, 1/2 x 2-1/2" NC hex
2шт.
18
13-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
Balancer mounting Hex, 1/2"-13 x 3 1/4", G5
2шт.
19
A150672
WASHER
- 1/2 x 7/8 x 1/8" (12.7 x 22.22 x 3.17 mm)
4шт.
20
A61130
TUBE
-, Serial Range: pump-block
1шт.
21
A64436
O-RING,0.549" ID x 0.755" OD
- tube, 9/16 x 3/4 x 3/32" (14.29 x 19.05 x 2.38 mm)
1шт.
22
222-31
HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut
CONNECTOR ASSEMBLY, Includes: Ref. 23, 24
1шт.
23
222-106
SLEEVE,5/8" Tube
- for 5/8" Tube
1шт.
24
222-116
TUBE NUT,1"-18
NUT - for 5/8" tube
1шт.
25
A21235
FITTING
ADAPTER -, Serial Range: screen-balancer
1шт.
26
A22590
FILTER SCREEN
SCREEN ASSEMBLY - oil inlet
1шт.
Выбрано товаров: 28
