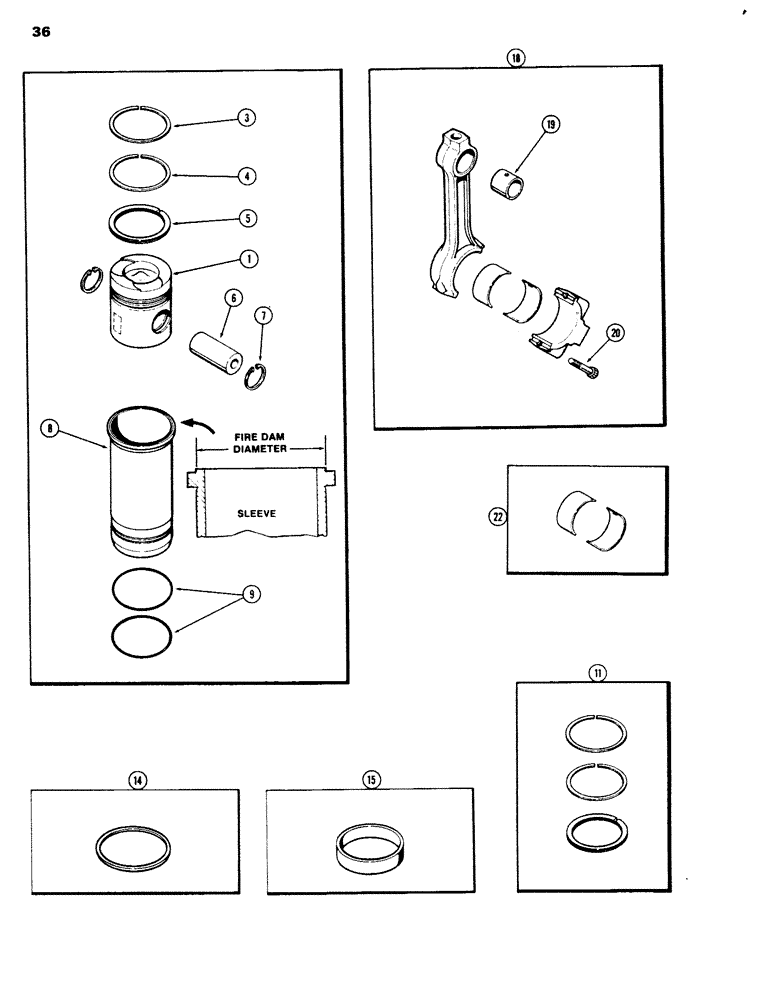

Запчасти Case 680G (036) - PISTONS AND SLEEVES, WITH 5.092" TO 5.097" FIRE DAM DIAMETER SLEEVE, 336BD DIESEL ENGINE (02) - ENGINE

1

A66531

PISTON

PISTON - cylinder

4шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (top groove) (Order Ref. 11)

4шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (second groove) (Order Ref. 11)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (third groove) (Order Ref. 11)

4шт.

6

A140607

PISTON PIN,41.27mm OD x 93.34mm L

PIN - piston

4шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

8шт.

8

A140216

SLEEVE CYLINDER

SLEEVE - cylinders, (With 2 grooves)

4шт.

9

A146616

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

O-RING - sleeve

8шт.

11

A44060

RING

RING SET - piston re-ring (Set of 1)

4шт.

14

A148553

SHIM

SHIM - sleeve, 0.010" (0.254 mm) (Repairs Only)

1шт.

14

A148554

SHIM

SHIM - sleeve, 0.005" (0.127 mm) (Repairs Only)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs Only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not Shown)

1шт.

A140216

SLEEVE CYLINDER

lip OD 5.372/5.375", fire dam dia 5.092/5.097"

1шт.

A140216 now subs to A182185. They are dimensionally the same, just heat treated differently. A140216 was used on engines prior to engine S/N 2539000. A153638 was used after that. In addition to fire dams being different between the two style sleeves, the lip OD is also different. This is due to the fact that, engines prior to 2539000, the counterbore diameter in the top of the block was different. The sleeve cannot be interchanged due to the differences in the conuterbore of the blocks. Per bulletin

1шт.

A182185

SLEEVE CYLINDER

lip OD 5.372/5.375", fire dam dia 5.092/5.097"

1шт.

A140216 now subs to A182185. They are dimensionally the same, just heat treated differently. A140216 was used on engines prior to engine S/N 2539000. A153638 was used after that. In addition to fire dams being different between the two style sleeves, the lip OD is also different. This is due to the fact that, engines prior to 2539000, the counterbore diameter in the top of the block was different. The sleeve cannot be interchanged due to the differences in the conuterbore of the blocks. Per bulletin

1шт.

A153638

SLEEVE CYLINDER

lip OD 5.413/5.417", fire dam dia 5.189/5.194"

1шт.

A140216 now subs to A182185. They are dimensionally the same, just heat treated differently. A140216 was used on engines prior to engine S/N 2539000. A153638 was used after that. In addition to fire dams being different between the two style sleeves, the lip OD is also different. This is due to the fact that, engines prior to 2539000, the counterbore diameter in the top of the block was different. The sleeve cannot be interchanged due to the differences in the conuterbore of the blocks. Per bulletin

1шт.

18

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 19, 20

4шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

4шт.

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

4шт.

19

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

BUSHING - piston pin

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod bearing cap

2шт.

22

A43173

BEARING LINER

INSERT - connecting rod bearing, (Standard) (Set of 2)

4шт.

22

A43174

BEARING LINER

INSERT - connecting rod bearing, 0.002" (0.051 mm) undersize (Set of 2)

4шт.

22

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, 0.010" (0.254 mm) undersize (Set of 2)

4шт.

22

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, 0.020" (0.508 mm) undersize (Set of 2)

4шт.

22

A43177

BEARING LINER

INSERT - connecting rod bearing, 0.030" (0.762 mm) undersize (Set of 2)

4шт.
