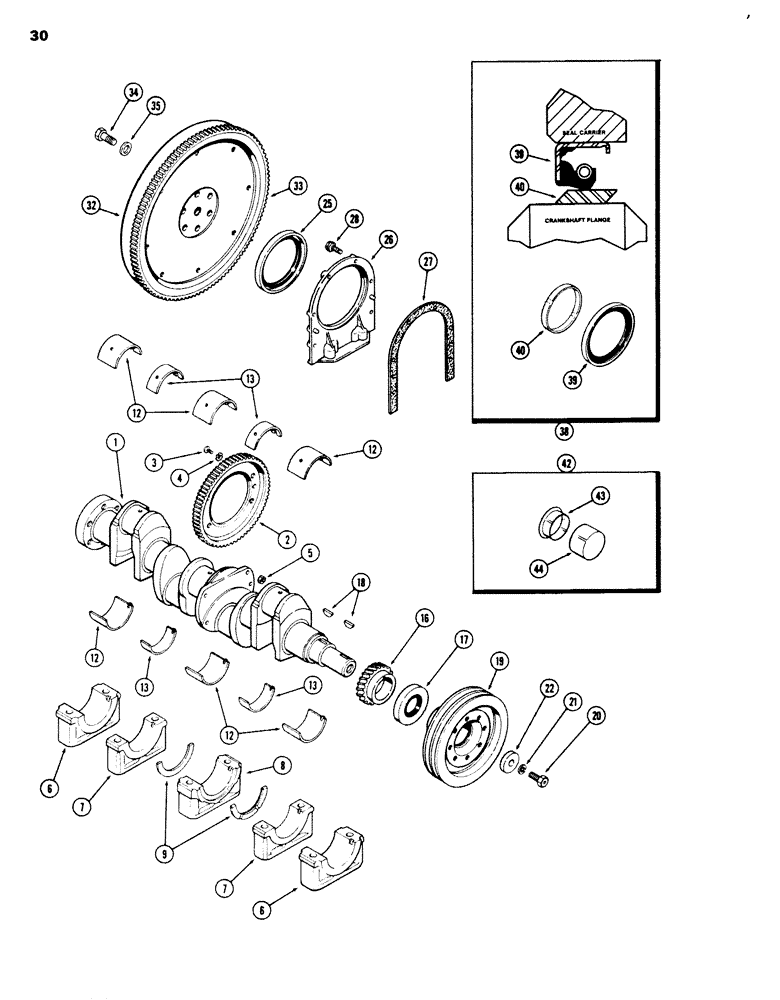

Запчасти Case 680G (030) - CRANKSHAFT AND FLYWHEEL, 336BD DIESEL ENGINE, WEAR SEAL KIT (02) - ENGINE

1

A166001

CRANKSHAFT

- engine (Replaces A58889 and A155437)

1шт.

Refer to CE Service Bulletin 38-81 for information on this part.

1шт.

2

A154998

GEAR

- balancer drive (Replaces A148425)

1шт.

3

A155438

SCREW,Torx, 3/8" - 24 x 1 1/4"

- balancer gear to crankshaft, (Replaces A146984)

4шт.

4

A50820

WASHER

- 3/8" hardened (Replaces 193-56)

4шт.

The 193-56 is a tooth washer and the A50820 is a flat washer. The 193-56 actually subs to a 93-51039.

1шт.

5

A51904

NUT

NUT - balancer screw

4шт.

6

A154391

CAP

- main bearing, front and rear (wide)

2шт.

7

A154390

CAP

- main bearing, intermediate (narrow)

2шт.

8

A154392

CAP

- main bearing, thrust, center (wide)

1шт.

9

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, center bearing, standard, 0.185" (0.47 mm)

2шт.

9

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, center bearing, oversize, 0.191" (0.49 mm)

2шт.

12

A43163

BEARING LINER

LINER SET - main bearing, wide standard (Set of 2)

3шт.

12

A43164

BEARING LINER

LINER SET - main bearing, wide, 0.002" undersize (0.06 mm) (Set of 2)

3шт.

12

A43165

BEARING LINER

LINER SET - main bearing, wide, 0.010" undersize (0.26 mm) (Set of 2)

3шт.

12

A43166

BEARING LINER

LINER SET - main bearing, wide, 0.020" undersize (0.51 mm) (Set of 2)

3шт.

12

A43167

BEARING LINER

LINER SET - main bearing, wide, 0.030" undersize (0.77 mm) (Set of 2)

3шт.

13

A43158

BEARING LINER

LINER SET - main bearing, narrow, standard (Set of 2)

2шт.

13

A43159

BEARING LINER

LINER SET - main bearing, narrow, 0.002" undersize (0.06 mm) (Set of 2)

2шт.

13

A43160

BEARING LINER

LINER SET - main bearing, narrow, 0.010" undersize (0.26 mm) Set of 2)

2шт.

13

A43161

BEARING SET

LINER SET - main bearing, narrow, 0.020" undersize (0.51 mm) (Set of 2)

2шт.

13

A43162

BEARING LINER

LINER SET - main bearing, narrow, 0.030" undersize (0.77 mm) (Set of 2)

2шт.

16

A66404

GEAR

- crankshaft

1шт.

17

A62049

OIL SEAL

- oil, front, 2-5/8 x 3-5/8 x 1/2" (66.68 x 82.08 x 12.7 mm)

1шт.

18

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

19

A66621

PULLEY

- fan drive

1шт.

20

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

- pulley, 5/8 x 1-1/2" NF hex (Replaces A28028)

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A156428

WASHER

- pulley, 21/32 x 2-1/8 x 23/64" (16.67 x 53.97 x 9.02 mm) (Replaces A27903

1шт.

25

A62050

OIL SEAL

- oil, rear, 4-3/4 x 5-3/4 x 1/2" (120.65 x 146.05 x 12.7 mm) (See Ref. No. 38)

1шт.

26

A57457

RETAINER

- rear oil seal

1шт.

27

A32830

GASKET

- rear oil seal retainer

1шт.

28

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - retainer, 3/8 x 1-1/4" NC hex (Replaces 13-620 bolt and 92-6 washer)

6шт.

32

A66388

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 33

1шт.

33

A27920

GEAR

- ring, starter

1шт.

34

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel to crankshaft, 5/8 x 1-1/2" NF hex

6шт.

35

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flywheel bolt

6шт.

38

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 39, 40

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, 4-7/8 x 5-3/4 x 1/2" (123.83 x 146.05 x 12.7 mm)

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - wear, 4-3/4 x 4-7/8 x 9/16" (120.65 x 123.83 x 14.29 mm)

1шт.

42

A154684

SLEEVE

WEAR SLEEVE KIT - oil, crankshaft, front, Includes: Ref. 43, 44

1шт.

43

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

44

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
