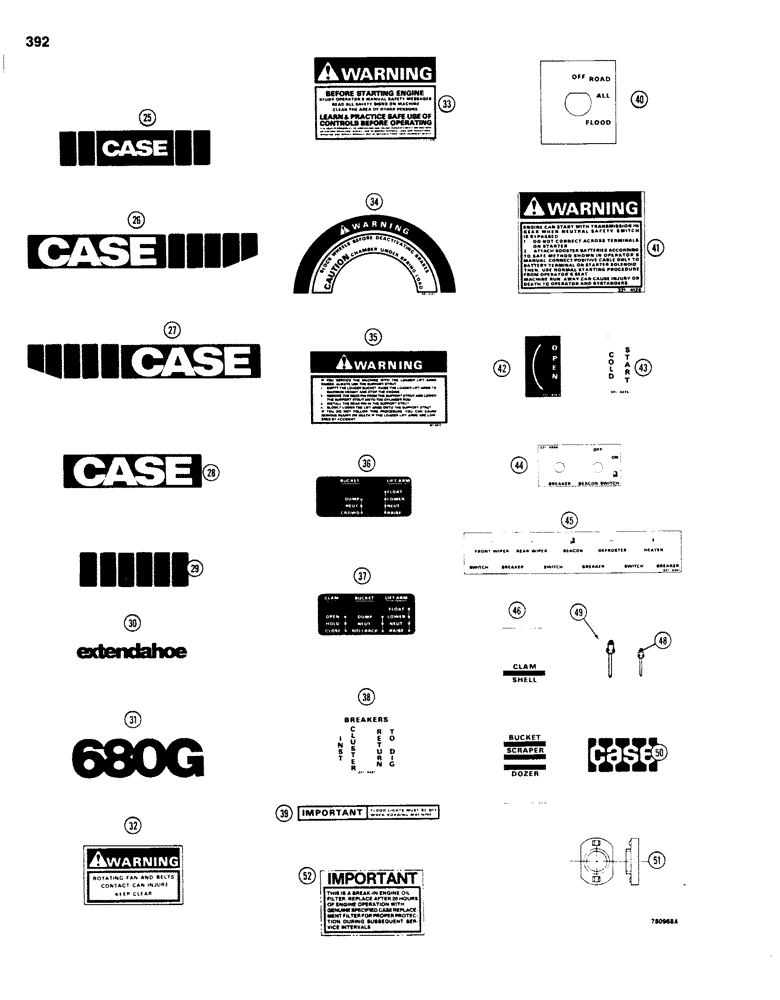

Запчасти Case 680G (392) - DECALS (09) - CHASSIS/ATTACHMENTS

25

321-5039

DECAL

- "case" with tread, canopy models

1шт.

26

321-5037

DECAL

- "case" with tread, dipper, right-hand

1шт.

27

321-5036

DECAL

- "case" with tread, dipper, left-hand

1шт.

28

321-5084

DECAL

- "case" extendable dipper

2шт.

29

321-5083

DECAL

- tread, extendable dipper

2шт.

30

321-3139

DECAL

- "extendahoe", if used

2шт.

31

321-4971

DECAL

- "680G"

2шт.

32

321-3596

DECAL

- warning, fan and belts

2шт.

33

321-3705

DECAL

- warning, safety

1шт.

34

321-4127

DECAL

- warning, parking brake, used with L73081 brake chamber

2шт.

34

321-6328

DECAL

- warning, parking brake, not shown, used with L105169 brake chamber

2шт.

35

321-6413

DECAL

- loader safety strut

1шт.

36

321-2722

DECAL

- loader controls, two levers

1шт.

37

321-2720

DECAL

- loader controls, three levers

1шт.

38

321-4461

PLATE - breakers, left-hand instrument panel

1шт.

39

321-4632

DECAL

PLATE - warning, flood lights, right-hand instrument panel

1шт.

40

321-5913

DECAL

- light switch

1шт.

41

321-4126

DECAL

- warning, jump start

1шт.

42

321-4969

DECAL - engine panel latch

2шт.

43

321-4425

DECAL

PLATE - cold start

1шт.

44

321-4998

DECAL - beacon switch and breaker, canopy models only

1шт.

45

321-5041

DECAL

- cab switches

1шт.

46

321-2654

DECAL

- 4-in-1 bucket indicator

1шт.

48

151-525

RIVET,Pop, 1/8" x .275"

- used with Ref. 8, 11, 38 - 40 and 43

12шт.

49

151-539

RIVET,Pop, 3/16" x .450"

- used with Ref. 20

4шт.

50

321-4739

EMBLEM

- "case", front

1шт.

This is a 2 1/2" x 5" chromed medallion.

1шт.

51

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - special, 1/4", emblem

2шт.

52

321-3863

DECAL

- oil filter

1шт.
