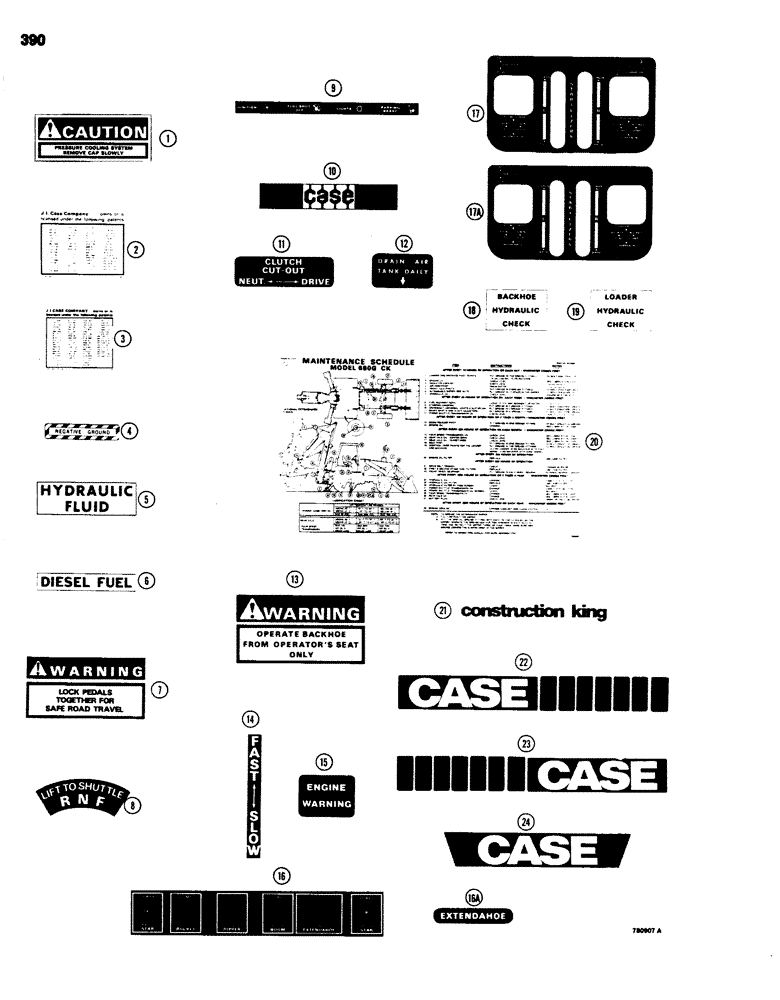

Запчасти Case 680G (390) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-3061

DECAL

- warning, radiator pressure

1шт.

2

321-663

DECAL

- patent, no longer used

1шт.

3

321-246

DECAL

- patent, no longer used

1шт.

4

321-704

DECAL

- negative ground

1шт.

5

321-229

DECAL

- hydraulic fluid

1шт.

6

321-230

DECAL

- diesel fuel

1шт.

7

321-3209

DECAL

- brake pedals

1шт.

8

321-4145

DECAL

PLATE - forward-reverse lever

1шт.

9

321-2613

DECAL

- cluster panel, right-hand

1шт.

10

L57685

DECAL

- "case", right-hand panel

1шт.

11

321-4146

DECAL

PLATE - clutch cut-out, rivet-on type

1шт.

12

321-1077

DECAL

- air tank drain

1шт.

13

321-3054

DECAL

- operator warning, backhoe

2шт.

14

321-4999

DECAL

- backhoe throttle, if used

1шт.

15

321-2721

DECAL

- engine warning light, if used

1шт.

16

321-5000

DECAL

- backhoe controls, individual levers, extendahoe, if used

1шт.

16a

321-2724

DECAL

- backhoe console, if used

1шт.

17

321-5478

DECAL

- backhoe controls, dual levers, extendahoe, if used

1шт.

17a

321-5477

DECAL - backhoe controls, dual levers, without extendahoe, if used

1шт.

18

321-2798

DECAL

- backhoe hydraulic check

1шт.

19

321-2797

DECAL

- loader hydraulic check

1шт.

20

321-4900

INSTRUCTION

CHART - maintainence

1шт.

21

321-3069

DECAL

- "Construction King"

2шт.

22

321-5034

DECAL

- "case" with tread, right-hand

1шт.

23

321-5035

DECAL

- "case" with tread, left-hand

1шт.

24

321-5038

DECAL

- "case", rear, cab models

1шт.
