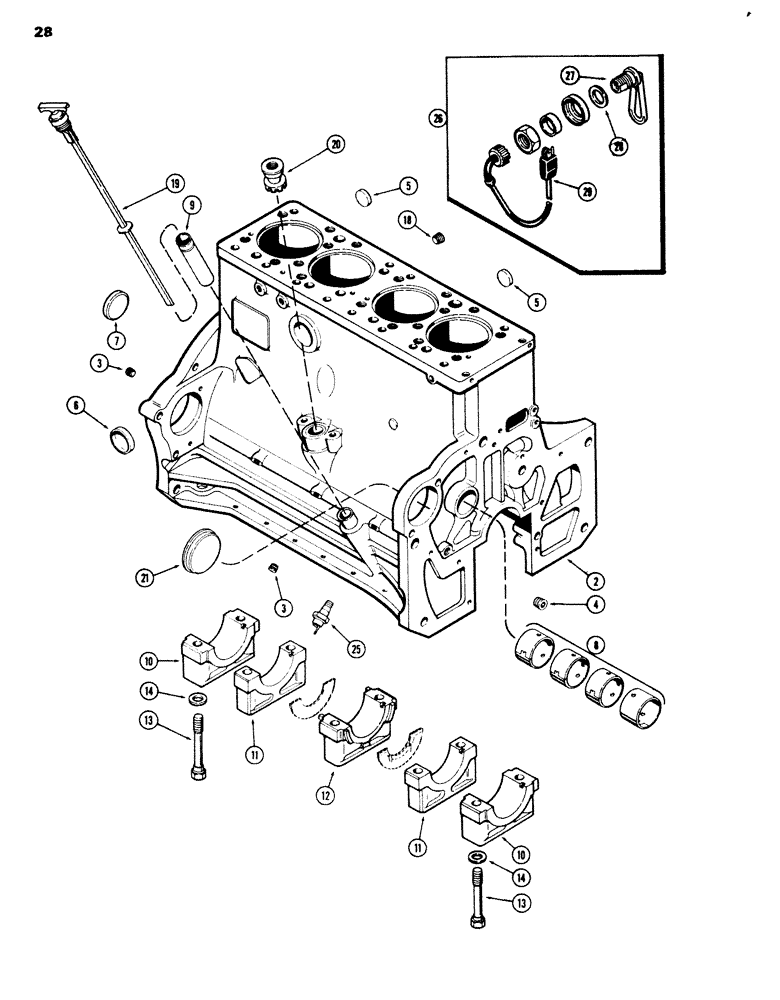

Запчасти Case 680G (028) - CYLINDER BLOCK, 336BD DIESEL ENGINE, BLOCK HEATER (02) - ENGINE

A150862

ENGINE ASSEMBLY

BLOCK ASSEMBLY - short (includes stripped block, camshaft connecting rods and bearings, piston assembly, crankshaft and bearings and timing gears) Includes: Ref. 3 - 14

1шт.

2

A150863

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No. A58504) Includes: Ref. 3 - 14

1шт.

3

221-1849

PLUG

- oil gallery, 1/8" PT socket hex head

4шт.

4

221-1843

PLUG

- oil gallery, 3/8" PT socket hex head

4шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" cup type (34.03 mm)

2шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2" cup type (50.8 mm)

1шт.

7

A24361

PLUG

- camshaft hole, 2-3/8" cup type (60.33 mm)

1шт.

8

REF

INSTRUCTION

BUSHING - camshaft (See Page 27)

1шт.

9

A34540

TUBE

- oil filler and dipstick

1шт.

10

A154391

CAP

- main bearing, front and rear, (wide)(Replaces A58783)

2шт.

11

A154390

CAP

- main bearing, intermediate (narrow)(Replaces A58784)

2шт.

12

A154392

CAP

- main bearing, thrust, center (wide)(Replaces A58785)

1шт.

13

A66948

STEP BOLT

BOLT - bearing caps, 5/8" NC x 5" special

10шт.

14

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolt, 5/8 x 1 x 1/8" (15.88 x 25.4 x 3.18 mm)

10шт.

18

221-845

PLUG,Hex Soc, 3/4"-14

- drain, cylinder block, 3/4" PT, socket hex head

1шт.

19

A138330

DIPSTICK

- oil level

1шт.

20

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

21

41-1052

PLUG,Cup, 3 1/4"

- 3-1/2" cup type (88.9 mm)

1шт.

25

A66737

SWITCH, PRESSURE

SWITCH - oil pressure

1шт.

26

A155436

RESISTOR

HEATER ASSEMBLY - block (Replaces 44812 and A47474) Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

28

A45114

GASKET

- element

1шт.

29

A44813

CABLE EXTENSION

CORD - heater, 12" long (304.8 mm)

1шт.
