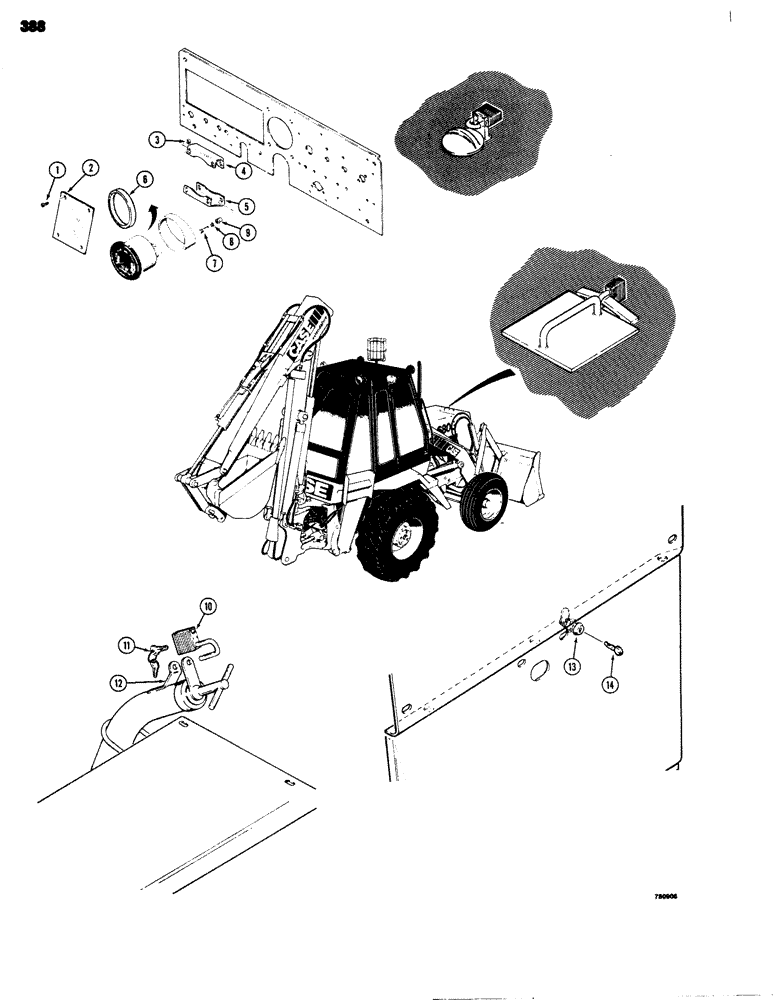

Запчасти Case 680G (388) - LOCKUP PARTS, TACHOMETER GLASS COVER, HYDRAULIC TANK, FUEL AND RADIATOR LOCKUP, ENGINE PANEL LOCKUP (09) - CHASSIS/ATTACHMENTS

1

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- pan head, 1/4" - 20 NC x 1/2", tachometer glass cover

4шт.

2

L54570

COVER

- tachometer

1шт.

3

131-650

NUT,1/4"-20, GB

NUT - hex, 1/4" - 20 NC

4шт.

4

L100773

BRACKET - upper

1шт.

5

L100772

BRACKET - lower

1шт.

6

L100774

SEAL

- tachometer

1шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

151-300

NUT - rivet, 1/4" - 20 NC

4шт.

10

D93753

PADLOCK

LOCK ASSEMBLY - padlock, hydraulic tank, fuel and radiator, Includes: Ref. 11

1шт.

11

R29555

KEY

S - padlock

2шт.

This should be a set of 2 keys wired together.

1шт.

12

L58386

BRACKET

- fuel lock, welded to filler neck

1шт.

13

L100557

LOCK

ASSEMBLY - panel, engine, Includes: Ref. 14

2шт.

14

D83205

KEY

- panel lock, set of two

1шт.
