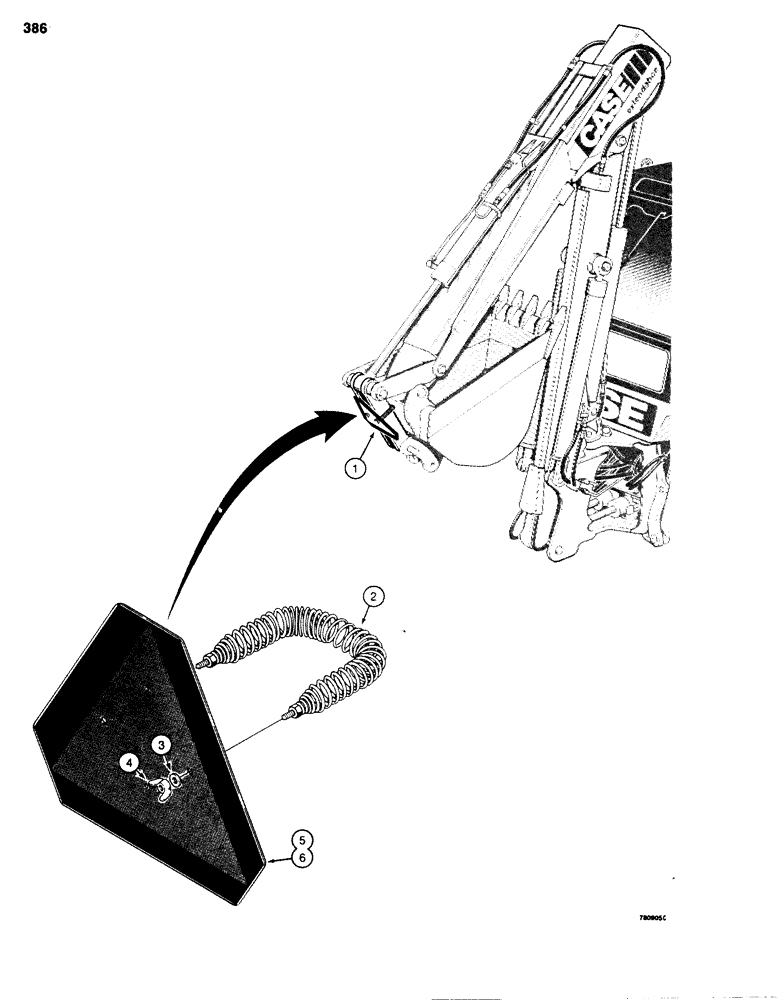

Запчасти Case 680G (386) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

LINKS - backhoe bucket, see Figures 348 and 352 for related parts

2шт.

2

D52564

SPRING

- fastener, emblem

1шт.

3

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

4

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

5

D52581

TRAFFIC SIGN

EMBLEM - plate and decal, Includes: Ref. 6

1шт.

6

321-1751

DECAL

- emblem

1шт.
