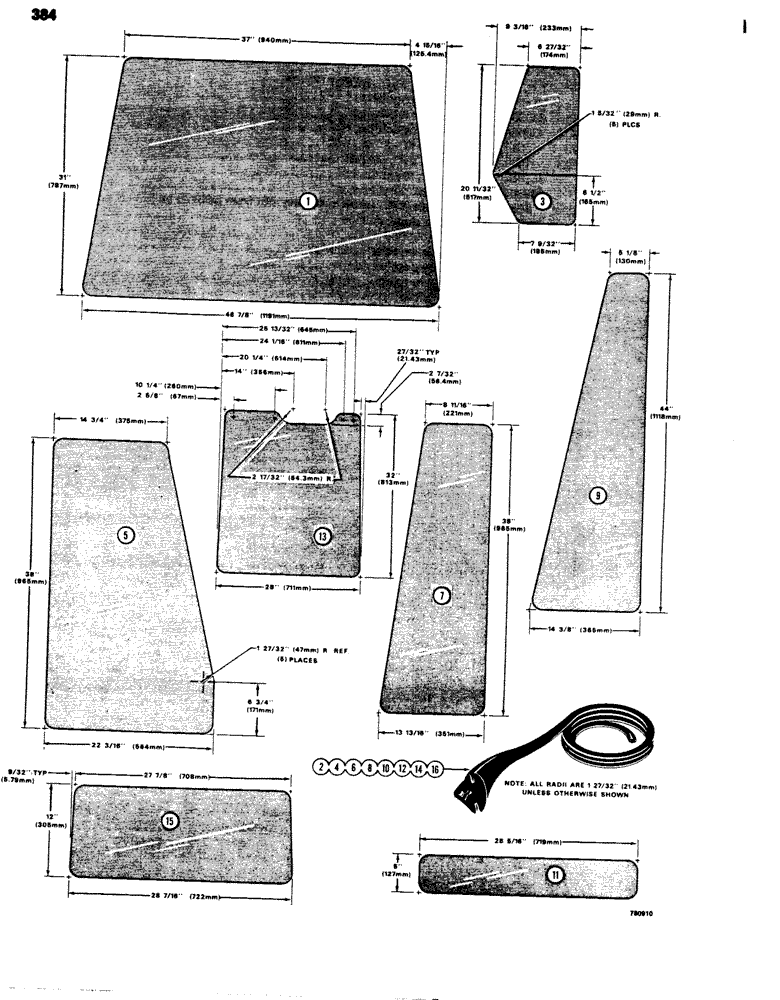

Запчасти Case 680G (384) - CAB GLASS AND MOLDING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOLDING - glass, 151" (3835 mm) long, cut from L35717

1шт.

3

REF

INSTRUCTION

GLASS - lower, front

2шт.

4

REF

INSTRUCTION

MOLDING - glass, 63" (1600 mm) long, cut from L35717

2шт.

5

REF

INSTRUCTION

GLASS - door

2шт.

6

REF

INSTRUCTION

MOLDING - glass, 117" (2972 mm) long, cut from L35717

2шт.

7

REF

INSTRUCTION

GLASS - side, rear

2шт.

8

REF

INSTRUCTION

MOLDING - glass, 103" (2616 mm) long, cut from L35717

2шт.

9

REF

INSTRUCTION

GLASS - rear quarter

2шт.

10

REF

INSTRUCTION

MOLDING - glass, 119" (3023 mm) long, cut from L35717

2шт.

11

REF

INSTRUCTION

GLASS - rear, upper

1шт.

12

REF

INSTRUCTION

MOLDING - glass, 72" (1829 mm) long, cut from L35717

1шт.

13

REF

INSTRUCTION

GLASS - rear window

1шт.

14

REF

INSTRUCTION

MOLDING - glass, 123" (3124 mm) long, cut from L35717

1шт.

15

REF

INSTRUCTION

GLASS - rear, lower

1шт.

16

REF

INSTRUCTION

MOLDING - glass, 81" (2057 mm) long, cut from L35717

1шт.

L35717

GASKET

MOLDING - bulk, 50" (15 metres) roll, not shown

1шт.
