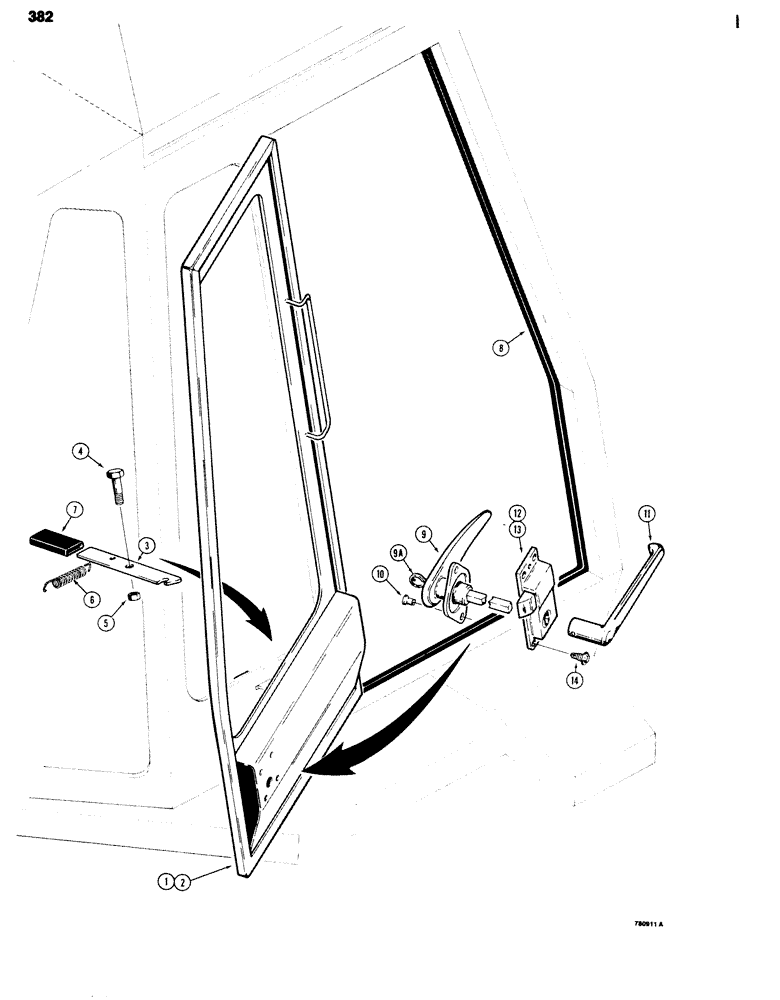

Запчасти Case 680G (382) - CAB DOORS, SEALS AND LATCHES (09) - CHASSIS/ATTACHMENTS

1

D83111

DOOR - cab, right-hand

1шт.

2

D83083

DOOR - cab, left-hand

1шт.

3

L35800

LATCH ASSY.

LATCH - door holdback

2шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

L35748

SPRING

- door holdback

2шт.

7

D83080

GRIP

- latch, vinyl end

2шт.

8

REF

INSTRUCTION

SEAL - door, 146" (3708 mm) long, cut from D66499 bulk, see below

2шт.

9

D83079

HANDLE

- door, outside

2шт.

9a

D83205

KEY

S - set of 2

1шт.

10

D70620

RIVET

- drive, door handle

4шт.

11

F63925

HANDLE

- door, inside

2шт.

12

D83203

LATCH ASSY.

LATCH - door, right-hand

1шт.

13

D83204

LATCH ASSY.

LATCH - door, left-hand

1шт.

14

182-146

SCREW,Sl Pan Hd, #10 - 32 x 5/8"

- machine, No. 10 - 32 NF x 5/8"

8шт.

D66499

SEAL

- bulk roll, 50 ft. (15 metres)

1шт.
