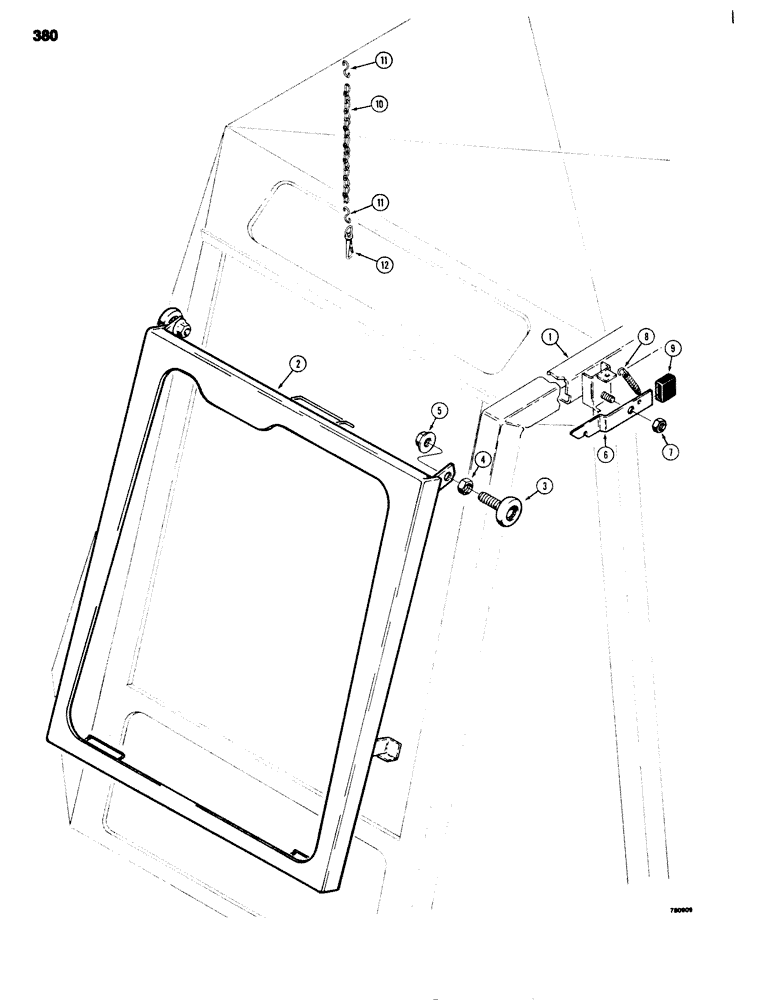

Запчасти Case 680G (380) - CAB FRAME AND REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab, for doors, seals, and related parts see Figure 382

1шт.

2

D83084

WINDOW

FRAME - rear window

1шт.

3

D70621

ROLLER

- rear window

4шт.

4

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.

5

131-912

LOCK NUT,Flg, 1/2"-13

NUT - hex, 1/2" - 13 NC, seez-pruf

4шт.

6

D71392

ARM

LATCH - rear window, holdback

1шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

L35748

SPRING

- door holdback

1шт.

9

D83080

GRIP

- latch, vinyl end

1шт.

10

D70605

CHAIN - latch, rear window, holdback

1шт.

11

L35834

"S"-HOOK - latch, rear window, holdback

2шт.

12

L35835

RING, SNAP

CHAIN - snap, latch, rear window, holdback

1шт.
