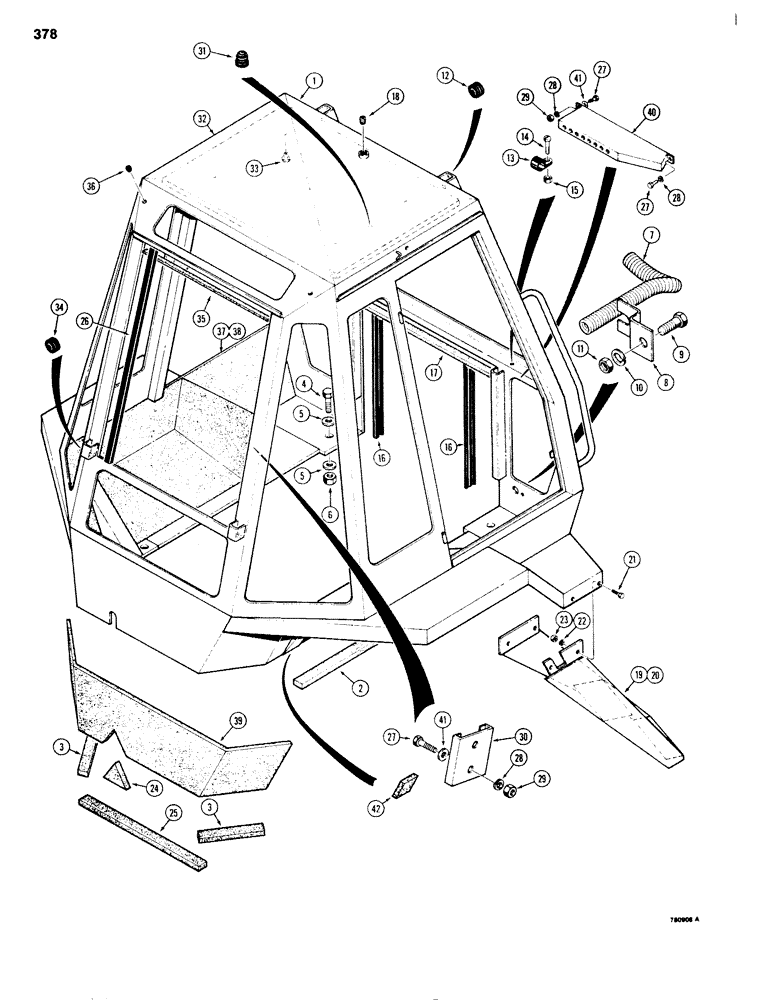

Запчасти Case 680G (378) - CAB AND CAB MOUNTING PARTS, CAB COMPONENTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - operator's, machinery item, SIMS 1000-0609, see page 2 for ordering

1шт.

2

D83094

SEAL - fender, cab sides, included with cab

2шт.

3

D83089

SEAL - lower panels, cab rear, included with cab

2шт.

4

13-2056

BOLT (MACHINE),Hex, 1-1/4" - 7 x 3-1/2", Gr 5

BOLT - hex head, 1-1/4" - 7 NC x 3-1/2", cab mounting

4шт.

5

D43536

WASHER

- flat, heat treated, 1-1/4"

8шт.

6

25-1020

NUT,1 1/4"-7, G5

4шт.

7

L78610

CONDUIT - cab harness

1шт.

8

L100472

RETAINER - harness plug

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

12

L35830

GROMMET - headlight wire

2шт.

13

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- cable

1шт.

14

163-23

SCREW,Hex, #10 - 32 x 3/4"

- machine, No. 10 - 32 NF x 5/8"

1шт.

15

131-7

LOCK NUT,7/16"-20

NUT - hex, No. 10 - 32 NF

1шт.

16

N6550

SEAL - rubber, cowl sides, bulk roll 50' (15 meters)

1шт.

17

REF

INSTRUCTION

PAD - foam, cowl top, 27-1/4" (692 mm) long, cut from L35756 bulk, see below

1шт.

18

353-679

PLUG,Hex Soc, 1"-11 1/2 NPT

- pipe, roof

1шт.

19

D83114

STEP - cab, right-hand

1шт.

20

D83115

STEP - cab, left-hand

1шт.

21

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

22

92-8

LOCK WASHER,1/2"

8шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

24

D83091

PAD - foam cut out, rear panel

1шт.

25

D83090

PAD - foam, lower rear panel

1шт.

26

REF

INSTRUCTION

SEAL - edging, 35" (889 mm) long, cut from L35759 bulk, see below

2шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

29

129-104

NUT,7/16"-14, G5

- hex, 1/4" - 20 NC, plated

5шт.

30

D83093

TRACK - rear window

2шт.

31

D83081

BUSHING - strain relief

2шт.

32

D83116

ROOF LINING

HEADLINER - insulation

1шт.

33

R37161

RETAINER

BUTTON - headliner

4шт.

34

L35830

GROMMET - taillight wire

2шт.

35

REF

INSTRUCTION

PAD - foam, rear window, 29" (737 mm) long, cut from L35819 bulk, see below

2шт.

36

353-405

PLUG,Dome, .562" hole, Nylon

- rear work lights, if used

2шт.

37

D83086

PAD

- foam, fenders, right-hand

1шт.

38

D83087

FOAM

PAD - foam, fenders, left-hand

1шт.

39

D83085

FOAM

PAD - foam, rear panel

1шт.

40

N6551

BRACKET

CONTROL PANEL - cab

1шт.

41

195-102

WASHER,1/4"

- flat, 1/4"

5шт.

42

N6552

SEAL - inner fender

2шт.

L35756

SEALING STRIP

SEAL - bulk roll, 50 ft. (15 metres)

1шт.

L35759

SEAL - bulk roll, 50 ft. (15 metres)

1шт.

L35819

RUBBER SEAL

SEAL - bulk roll, 50 ft. (15 metres)

1шт.
