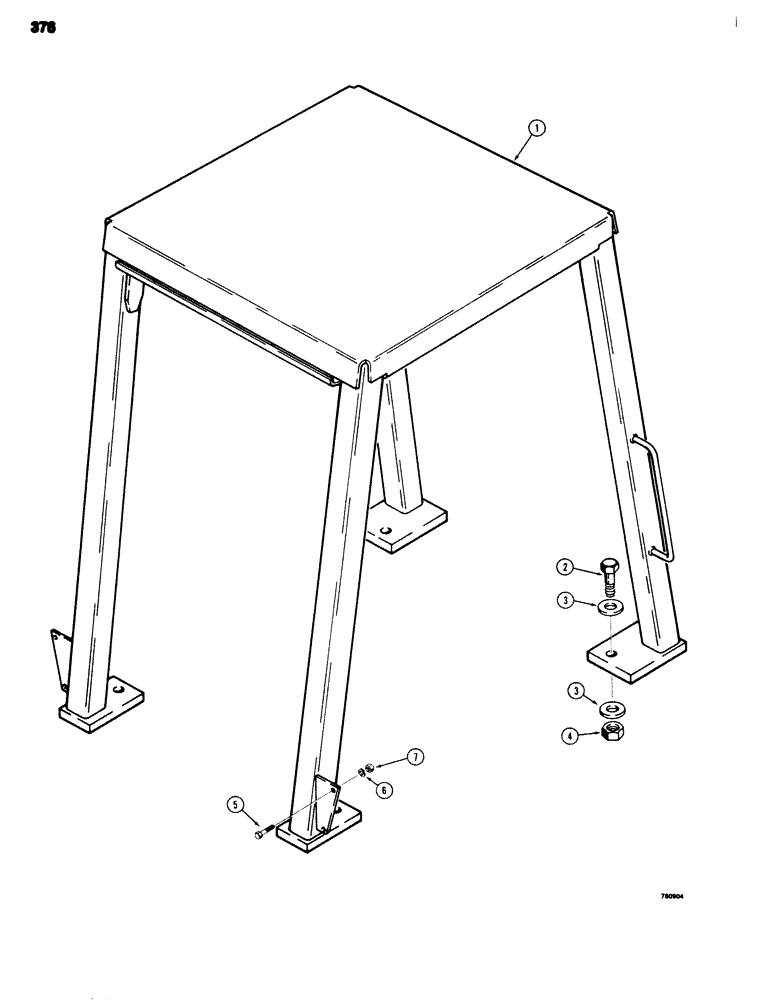

Запчасти Case 680G (376) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, machinery item, see Figure 2 for ordering

1шт.

2

13-2056

BOLT (MACHINE),Hex, 1-1/4" - 7 x 3-1/2", Gr 5

BOLT - hex head, 1-1/4" - 7 NC x 3-1/2", ROPS mounting

4шт.

3

D43536

WASHER

- flat, 1-1/4", hardened

8шт.

4

25-1020

NUT,1 1/4"-7, G5

4шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", fender mounting

4шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

45шт.
