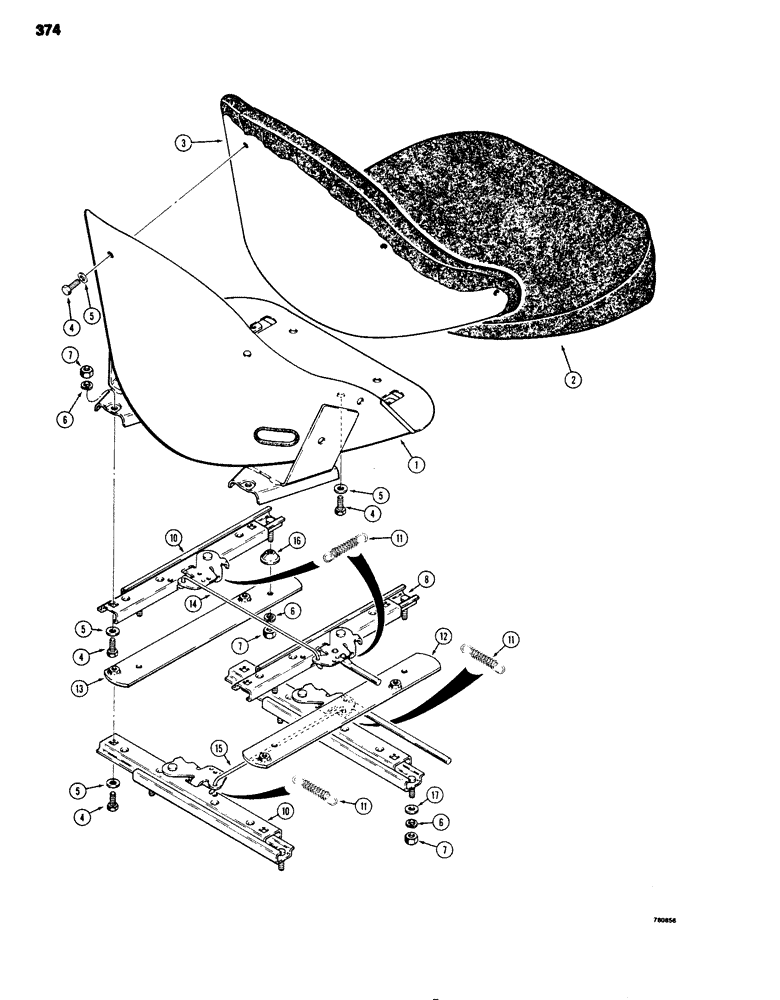

Запчасти Case 680G (374) - SEAT (09) - CHASSIS/ATTACHMENTS

L79910

SEAT

ASSEMBLY - operator's, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

A42745

SEAT

CUSHION - seat

1шт.

3

A42747

BACKREST

CUSHION - backrest

1шт.

4

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

17шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

17шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

7

9635082

NUT,5/16" - 18, Gr 5

10шт.

8

D83178

ADJUSTER

- right-hand, Includes: Ref. 11

1шт.

9

D59688

SLIDE

ADJUSTER - front, Includes: Ref. 11

1шт.

10

A64818

ADJUSTER

- left-hand and rear, Includes: Ref. 11

2шт.

11

L35503

SPRING

- adjusters

1шт.

12

D59687

BRACKET

- mounting, right-hand

1шт.

13

D59686

BRACKET

- mounting, left-hand

1шт.

14

L35492

ROD

- connecting, side adjusters

1шт.

15

D83179

ROD

- connecting, front to rear adjusters

1шт.

16

D59689

SPACER

- adjusters

4шт.

17

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.
