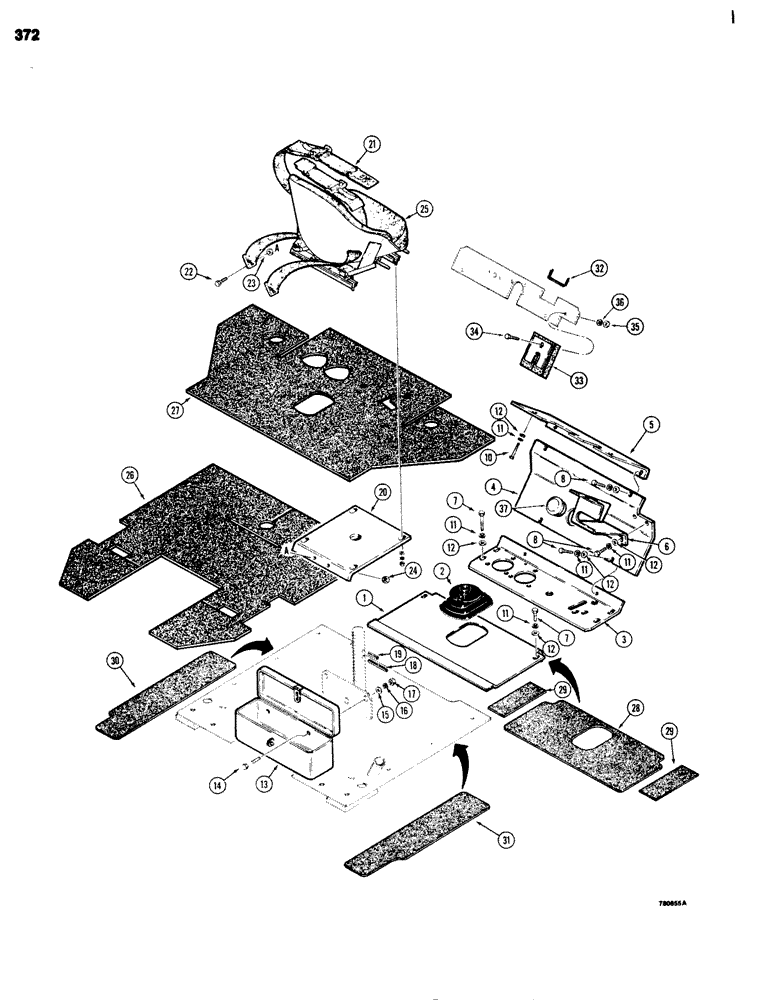

Запчасти Case 680G (372) - FLOOR PLATES AND SEAT (09) - CHASSIS/ATTACHMENTS

1

L100076

PLATE

- floor, rear, without heater

1шт.

1

L100357

PLATE - floor, rear, with heater, not shown

1шт.

2

L54087

BOOT

SEAL - Shift lever

1шт.

3

L79520

PLATE - firewall

1шт.

4

L79513

PLATE - firewall

1шт.

5

L79502

PLATE - upper

1шт.

6

L79978

PLATE - cover, valve lever end

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

6шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

7шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

15шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

15шт.

13

D55624

TOOL

BOX - tool

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Tool box mounting Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

18

138-186

LOCK PIN,3/8" x 4", Slotted

Pin, , lower 3/8" x 4", Slotted

1шт.

19

138-181

LOCK PIN,3/8" x 2 1/2", Slotted

ROLL PIN - 3/8" x 2-3/4", upper

1шт.

20

L74526

PLATE - seat mounting

1шт.

21

D83760

SAFETY BELT

BELT ASSEMBLY - seat, 3" (76 mm) wide, if used

1шт.

21

D75428

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide, If used

1шт.

22

F42236

STEP BOLT

BOLT - 7/16" - 20 NF x 1-1/4", special

2шт.

23

L79092

WASHER

- flat, 7/16", special

2шт.

24

131-673

NUT

- hex, self lock, 7/16" - 20 NF

2шт.

25

L79910

SEAT

ASSEMBLY - operator's, see Figure 374 for parts list

1шт.

26

L103484

FLOOR

MAT - rear, used with cab

1шт.

27

L103483

FLOOR

MAT - front, used with cab

1шт.

28

L71264

PAD

- non-slip, front, center, if used

1шт.

29

L48674

PAD

- non-slip, front, side, if used

2шт.

30

L71262

PAD

- non-slip, left-hand side, if used

1шт.

31

L71421

PAD

- non-slip, right-hand side, if used

1шт.

32

D60179

RUBBER STRIP

TRIM - quickedge

1шт.

33

L101180

PLATE - seal

1шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

35

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

37

L52474

PLUG

COVER - access

1шт.
