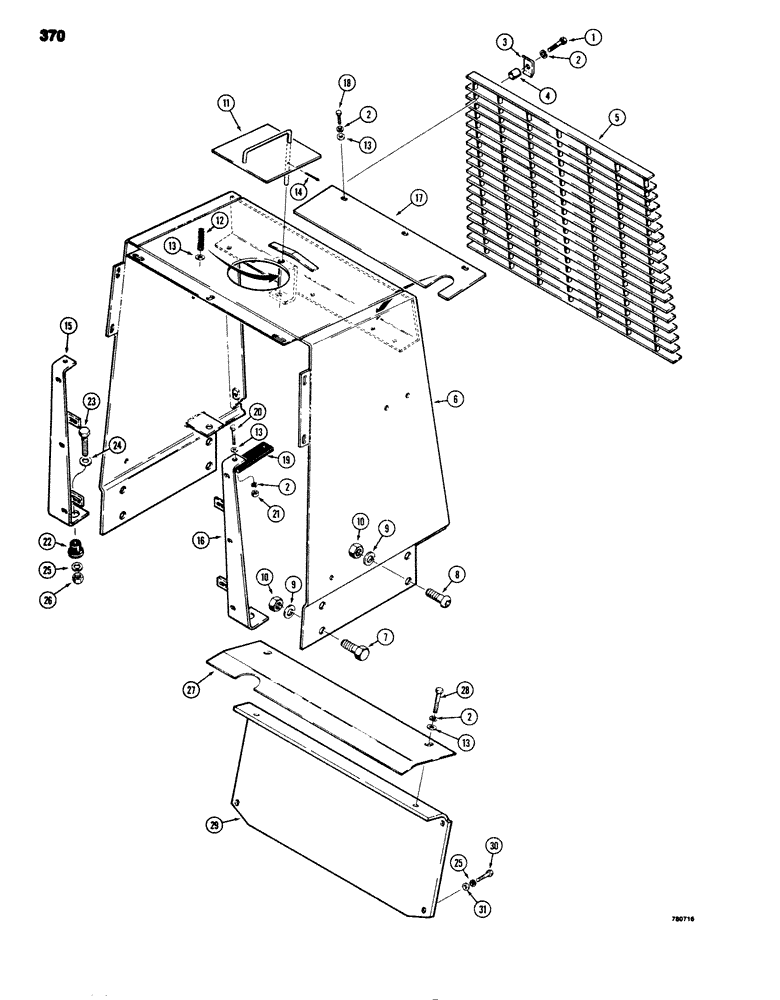

Запчасти Case 680G (370) - RADIATOR FRAME AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

4шт.

2

92-6

LOCK WASHER,3/8"

13шт.

3

D40236

CLAMP

- grille retaining

4шт.

4

T34922

BUSHING

SPACER -, Serial Range: grille-frame

4шт.

5

L79909

GRILLE - radiator frame

1шт.

6

L101069

FRAME - radiator and grille

1шт.

7

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

8

164-591

SCREW,Btn Hd, 3/4" - 10 x 2"

CAPSCREW - button head, hex socket, 3/4" - 10 NC x 2"

4шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

10

25-1012

NUT,3/4"-10, G5

8шт.

11

L55697

COVER - radiator cap access

1шт.

12

A27100

SPRING - cover mounting

1шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

10шт.

14

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

15

L100116

BRACKET - radiator mounting, left-hand

1шт.

16

L100115

BRACKET - radiator mounting, right-hand

1шт.

17

L100151

BAFFLE - radiator, upper

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

19

L50641

CONNECTING STRIP

STRAP - radiator mounting, upper

2шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

22

L46821

SHOCK ABSORBER

BUSHING - radiator mounting, lower

2шт.

23

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

24

195-2061

WASHER,5/8" x 1 7/8" x .134"

- flat, 1/2"

2шт.

25

92-8

LOCK WASHER,1/2"

6шт.

26

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

27

L101002

BAFFLE - radiator, lower

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

L100283

PLATE - guard, lower radiator

1шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

31

95-8

WASHER,1/2"

flat 1/2"

4шт.
