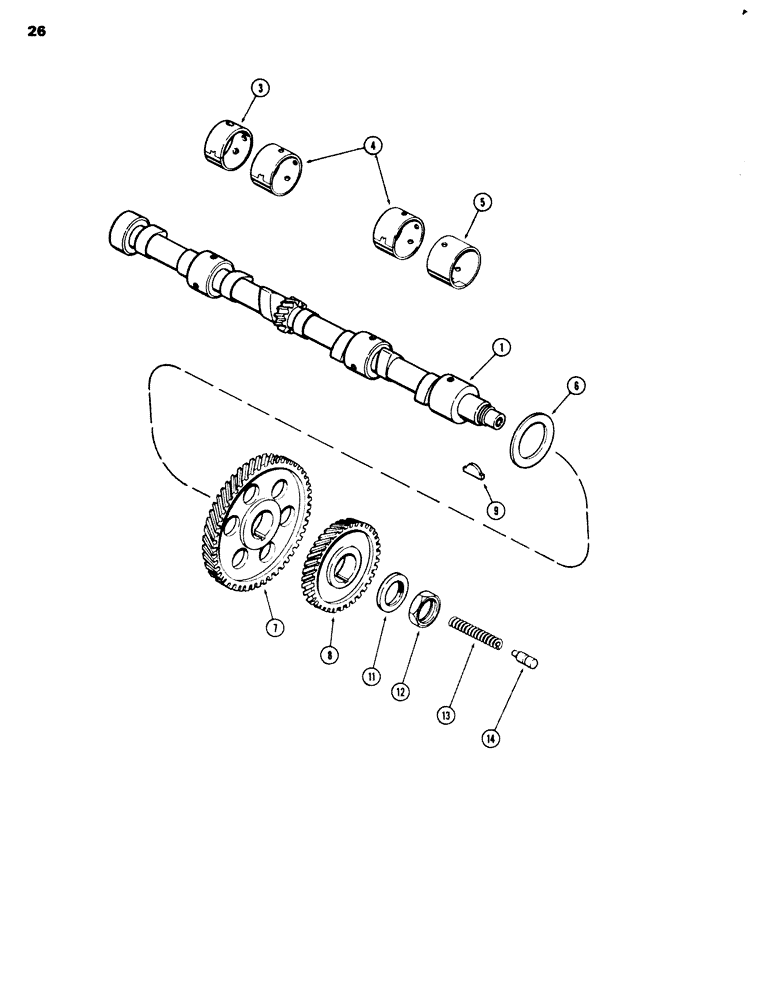

Запчасти Case 680G (026) - CAMSHAFT, 336BD DIESEL ENGINE (02) - ENGINE

1

A66742

CAMSHAFT

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear, 1-1/8" wide (28.58 mm)

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- intermediate, 1-7/16" wide (36.51 mm)

2шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front, 1-5/8" wide (41.28 mm)

1шт.

6

A21017

WASHER

- thrust, 2-1/4 x 3-1/4 x 1/8" (57.15 x 82.55 x 3.18 mm)

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - (Hi-Pro type)

1шт.

11

A31038

THRUST WASHER

- camshaft nut, 1-3/8 x 2-1/4 x 1/8" (28.58 x 57.15 x 3.18 mm)

1шт.

12

A58595

NUT

- camshaft

1шт.

13

CASA27853

SPRING

- plunger, camshaft bumper

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
